300lph Reverse Osmosis System With Double Passes And Stainless Steel Membrane Housing

300lph Reverse Osmosis System With Double Passes And Stainless Steel Membrane Housing

300lph Reverse Osmosis System

SUS304 Reverse Osmosis System

3.0KW Double Pass RO System

Place of Origin:

Chengdu, China

Brand Name:

Leader-t

Certification:

CE, ISO

Model Number:

LDM-D-300L

Contact Us

Request A Quote
Product Details
Membrane Housing:
Stainless Steel
Warranty:
1 Year
Pressure Vessels:
FRP/ SUS304
Pump Brand:
Grundfos/ CNP
Membrane Brand:
Dupont/ Vontron
Power Supply:
380V/50Hz/ Customized
Control Panel:
PLC/ Relay
Flow Rate:
300 LPH
Power Rating:
3.0KW
Operating Pressure:
0.8 Mpa~1.0mpa
Application:
Industrial/ Commercial/ Medical
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Please send inquiry
Packaging Details
customized wooden case/shelf, strong paper box, shrink film, EPE foam
Delivery Time
5~60 days
Payment Terms
T/T, west union, L/C
Supply Ability
1000 sets/month
Product Description

Product Description:

The Double Pass RO System is a reverse osmosis filtration system designed for industrial, commercial and medical use. With advanced technology, this system utilizes a double pass reverse osmosis purification process that removes a wide range of harmful impurities and contaminants from water. The water supply pressure ranges from 0.1 Mpa to 0.6 Mpa and is supported by a centrifugal pump. This system is easy to install, operate and comes with a 1 year warranty. The Double Pass RO Purification System effectively purifies water, providing clean and safe water for drinking and other applications.



Features:

  • Product Name: Double Pass Reverse Osmosis Treatment System
  • Pump Type: Centrifugal Pump
  • Membrane Brand: Dupont/ Vontron
  • Membrane Housing: Stainless Steel
  • Operating Pressure: 0.8 Mpa~1.0mpa
  • Control Panel: PLC/ Relay

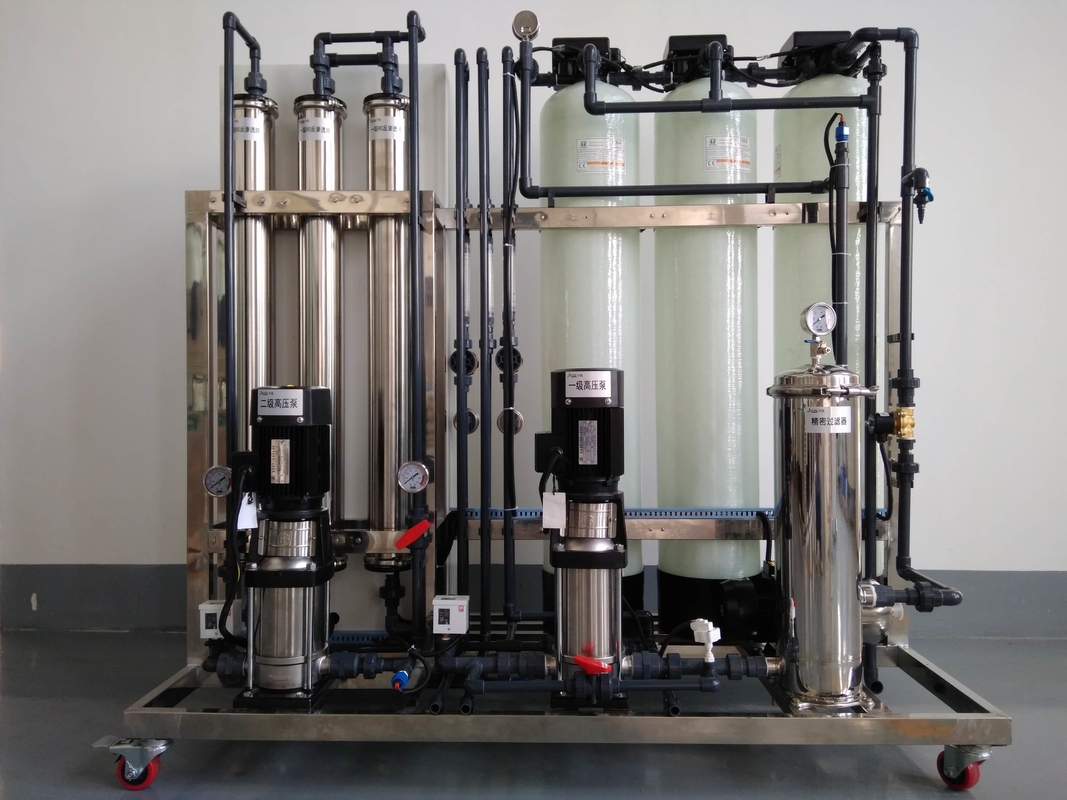

300lph Reverse Osmosis System With Double Passes And Stainless Steel Membrane Housing 0

Technical Parameters:

Parameter Specification
Warranty 1 Year
Power Rating 3.0KW
Operating Pressure 0.8 Mpa~1.0mpa
Pump Type Centrifugal
Control Panel PLC/ Relay
Membrane Housing Stainless Steel
Membrane Brand Dupont/ Vontron
Flow Rate 300 LPH
Pressure Vessels FRP/ SUS304
Pump Brand Grundfos/ CNP


Applications:

The Double Pass Reverse Osmosis Purification System (LDM-D-300L), manufactured by Leader-t, is a highly reliable and advanced water treatment system that is certified by CE, ISO9001, ISO14001, and ISO45001. This water purification system can be customized according to customers' requests. And its delivery time usually ranges from 5 to 60 days. The product comes with a one year warranty.



This Double Pass Reverse Osmosis Filtration System has a water supply pressure of 0.1 mpa~0.6mpa and a power rating of 3.0KW, and it can be used in a wide range of applications. It has a PLC/relay control panel and can be easily operated. It utilizes a double pass reverse osmosis filtration technology that can effectively remove suspended solids, bacteria, and viruses from water.



The Double Pass RO Water Treatment System from Leader-t is an ideal solution for medical, commercial establishments, and industrial applications. It is an efficient and cost-effective way to achieve clean, safe, and healthy drinking water. With its excellent filtration capacity and advanced technology, it can provide safe and healthy drinking water for a long time.



Support and Services:

Double Pass RO System offers the following technical support and services to customers:

  • Technical assistance and advice for product installation, troubleshooting and maintenance.
  • Bespoke system design, engineering and supply.
  • Replacement of components, accessories and consumables.
  • Regular maintenance and repair services.
  • On-site support and emergency repair services.


Packing and Shipping:

Packaging and Shipping for Double Pass RO System

The Double Pass RO System is securely packaged in a reinforced cardboard box for safe shipping. All necessary components, including the system, tubing, and filters, are securely packaged in foam padding to ensure safe delivery.

For international orders, the package is wrapped in a plastic sheet to protect against moisture and other environmental factors.

The Double Pass RO System is shipped via a reliable shipping service. Delivery time and cost depend on the recipient's location.



FAQ:

Q&A:

Q1: What is the brand name of the Double Pass RO System?
A1: The brand name is Leader-t. We can also do the OEM.

Q2: Where is the Double Pass RO System manufactured?
A3: The Double Pass RO System is manufactured in Chengdu, China. We are oringinal manufacturer here.

Q3: What certifications does the Double Pass RO System have?
A4: The Double Pass RO System has CE, ISO certifications.

Q4: What are the minimum order quantity and payment terms for the Double Pass RO System?
A5: The minimum order quantity is 1 set, and payment terms are T/T, West Union, or L/C.

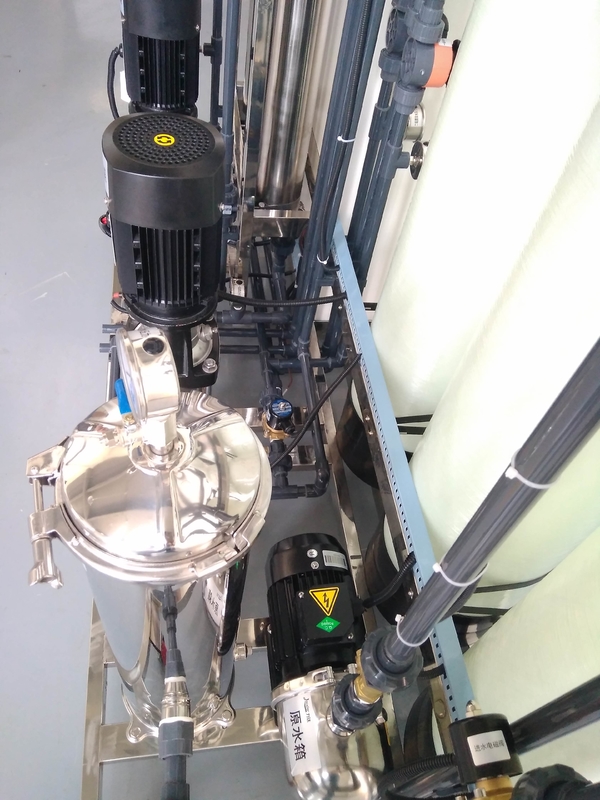

300lph Reverse Osmosis System With Double Passes And Stainless Steel Membrane Housing 1
