SS Water Filtration Double Pass RO System 1000L/H For Hospital Hemodialysis Room

SS Water Filtration Double Pass RO System 1000L/H For Hospital Hemodialysis Room

Double Pass RO System 1000L/H

SS Double Pass RO System

Hospital Hemodialysis Room RO System

Place of Origin:

China

Brand Name:

LEADER-T /OEM

Certification:

CE/ISO

Model Number:

LDM-IV-1000

Contact Us

Request A Quote
Product Details
Product Name:
1000Liter Per Hour Hospital Hemodialysis Room Use Two Stage RO System
Productivity:
1000Liter / Hour
Warranty:
1 Year For Main Components
Core Components:
High Pressure Pump, Pre-treatment Filters, RO System, Control System
After-sales Service:
Video Technical Support, Field Installation
Certification:
CE,ISO9001,ISO 14001, ISO13485
Material:
Stainless Steel
Usage:
Labratory, Hospital
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
Wooden/ Box
Delivery Time
7-15 Days
Payment Terms
L/C, T/T, Western Union
Supply Ability
1000 Set /Month
Product Description

1000L/H Stainess Steel Water Filtration For Hospital Hemodialysis Room Double Pass Reverse Osmosis System





The water of a particular program does not interfere with the specificity, accuracy and precision of the program. Process definitions alone are not sufficient to define the required water quality. Many parameters have qualifiers that ultimately meet the requirements of appropriateness and validation as determined by the end user. Because a variety of applications may have a great impact on the composition and quantity tolerance of pollutants. Therefore, it is not uncommon for water quality parameters to be supplemented by identifying intended applications, specific pollutant problems to ensure that desired results are achieved. In the Hospital Hemodialysis Room, the  water filtration Ro system is needed;



Water purification is not an exact science and is highly dependent on local raw water quality and changing end-use requirements. Some technologies are better than others at removing certain contaminants, and often multiple technologies in an integrated system are required to achieve the desired level of water purity. Conforming drinking water is the starting ingredient for producing different grades of high purity water. Centralized pretreatment components (such as activated carbon to remove chlorine and reduce organic matter), water softeners (to reduce hardness and prevent RO membrane fouling), RO (to reduce ionic and organic pollutants and particles) and primary filtration (to prevent RO membrane fouling) are added to the system. 185nm uv can be added to reduce TOC. Further on-line monitoring devices can also be added. The treated water is stored in a clean, pollution-free opaque tank with a 0.2μ air filter and is sometimes ozonated, heated or routinely disinfected to limit the introduction of microorganisms;Generally, in order to get the ultra pure water, the water plant desgined to two stage reverse osmosis system



Process



Pump ---- Quartz sand filter ------ AC filter----- Soft resin filter----- Precision filter---  Prime high pressure pump--- Prime RO system----- Secondary high pressure pump------- Secondary RO system--- Pure water out





Fuctions



1. For the preparation of multi-bed hemodialysis and related treatment water in medical institutions;

2.The water involved includes: water for powder preparation concentrate, water for dialyzer preparation, water for dialyzer reuse;







Specifications:



Model LDM-IV-1000
Voltage/frequency 380V,220V / 50Hz
Capacity 1000LPH
Desalting rate 99%
Water Recovery rate 50-70%
Conductivity of pure water ≤10μs









Pictures

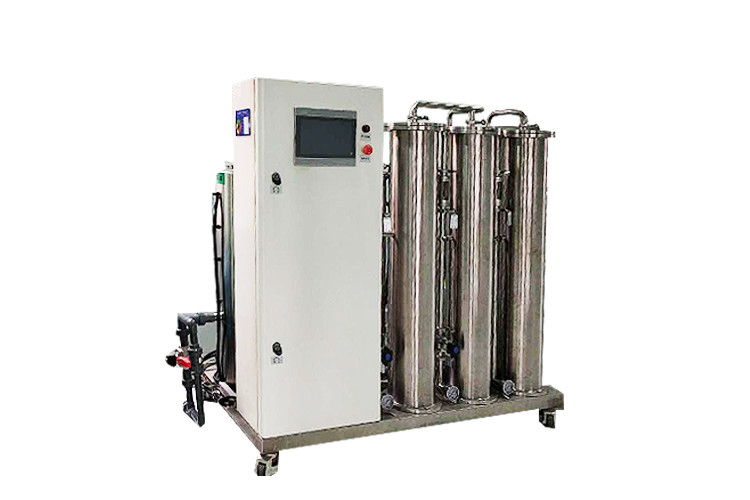

SS Water Filtration Double Pass RO System 1000L/H For Hospital Hemodialysis Room 0

SS Water Filtration Double Pass RO System 1000L/H For Hospital Hemodialysis Room 1

SS Water Filtration Double Pass RO System 1000L/H For Hospital Hemodialysis Room 2
