1000LPH Double Stage RO System By Complete SS Material

1000LPH Double Stage RO System By Complete SS Material

1000LPH Double Stage RO System

SS Material Double Stage RO System

OEM Double Pass RO System

Place of Origin:

China

Brand Name:

LEADER-T /OEM

Certification:

CE/ISO

Model Number:

LDM-II-B-1000

Contact Us

Request A Quote
Product Details
Product Name:
1000LPH Double Stage RO System By Complete SS Material
Productivity:
1000LPH
Capacity:
100-1000000LPH
Warranty:
1 Year For Main Components
Core Components:
RO System,pretreatment System,disinfectionsystem,control System
After-sales Service:
Video Technical Support, Field Installation
Certification:
CE,ISO9001,ISO 14001
Material:
Stainless Steel
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
Wooden/ Box
Delivery Time
7-15 Days
Payment Terms
L/C, T/T, Western Union
Supply Ability
1000 Set /Month
Product Description

1000LPH Double stage RO system by complete SS Material with UV disinfection



A. Description:

Reverse osmosis, the raw water, first goes by pre-treatment, then by RO treatment. Through those treatments, can remove dissolving salt 99% and harmful materials, like particle, colloid, organic impurities, heavy metal ions, bacteria, viruses and heat source, etc. the system salt rejection rate gets 96-98%, outlet water conductivity gets ≤10μs/cm².



B. Process:

Raw water+ Raw water tank +Raw water pump+Multi- media filter+ Activitated carbon Filter + Soften filter + salt box +cartridge filter + One-stage high-pressure pump + One-stage reverse osmosis system+ One-stage pure water tank + Two-stage high-pressure pump + Two-stage reverse osmosis system + Two-stage pure water tank + Delivery pump + Water point



C. Parameters:

1. Capacity: customized

2. Rated power: check with the configuration list

3. Voltage: 220V/3phase/50Hz, 380V3phase/50Hz,or customized at different country

4. Desalting rate:97-98%

5. Water recovery rate: 50-70%

6. Conductivity of raw water: ≤400μs or custom designed

7. Conductivity of pure water: ≤10μs or custom designed





Pictures

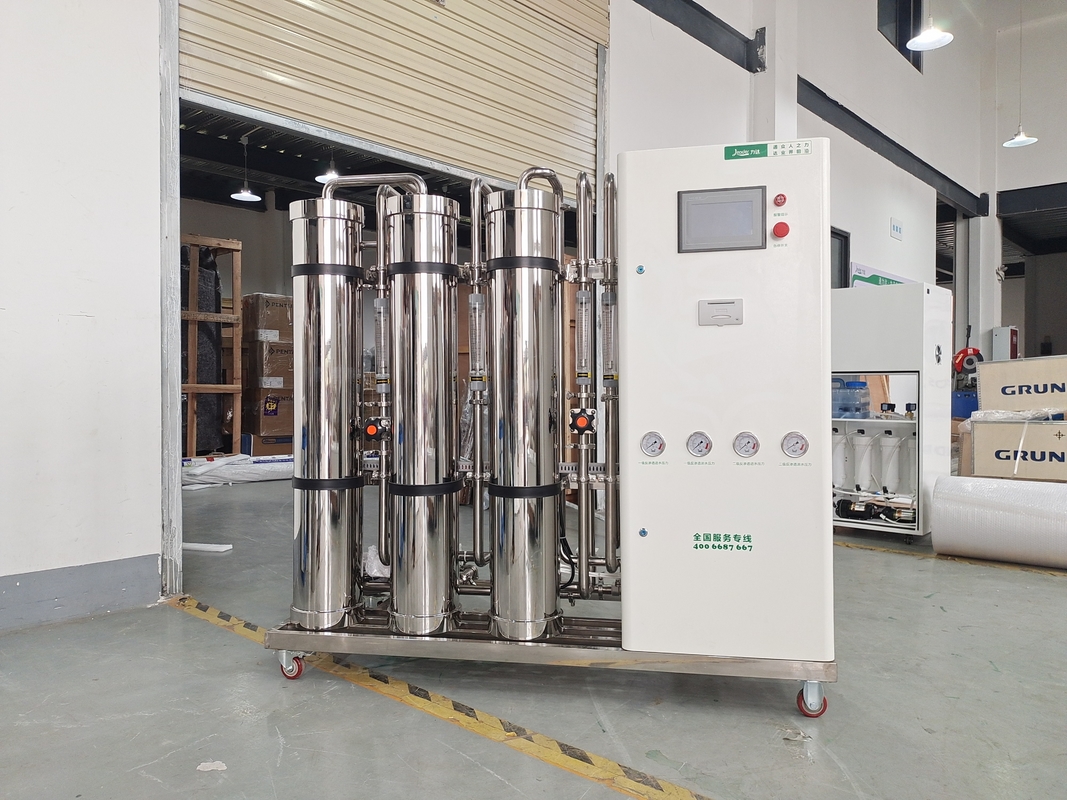

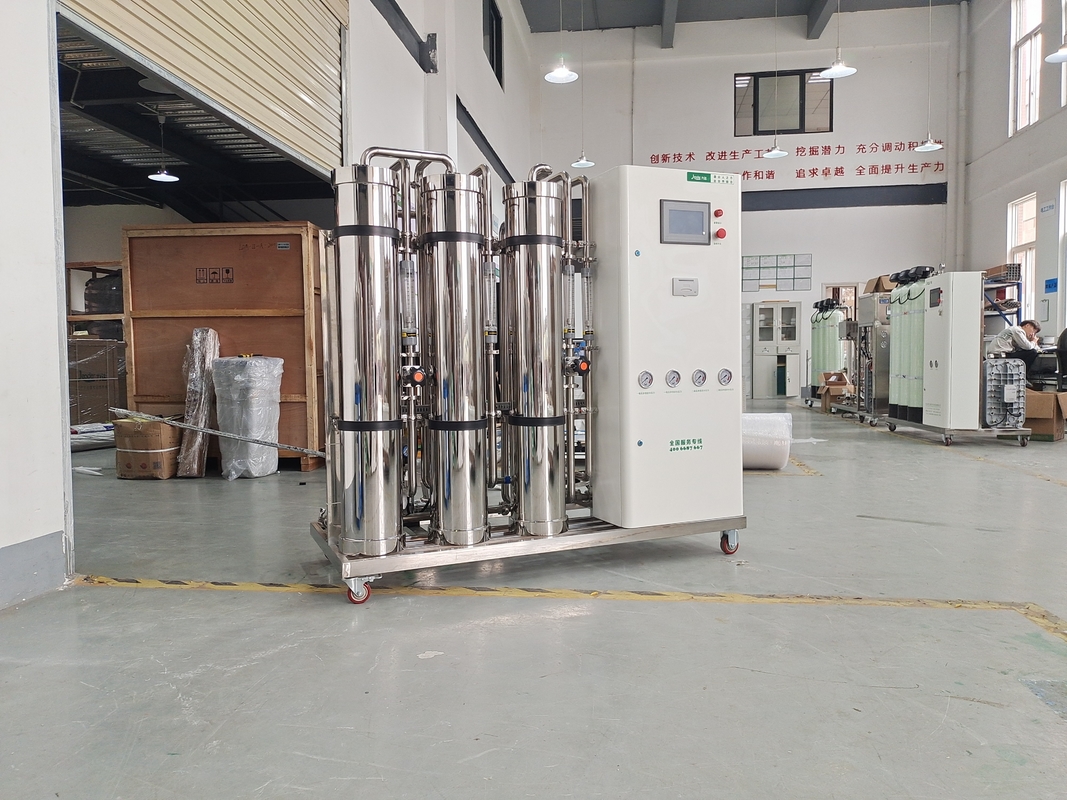

1000LPH Double Stage RO System By Complete SS Material 0

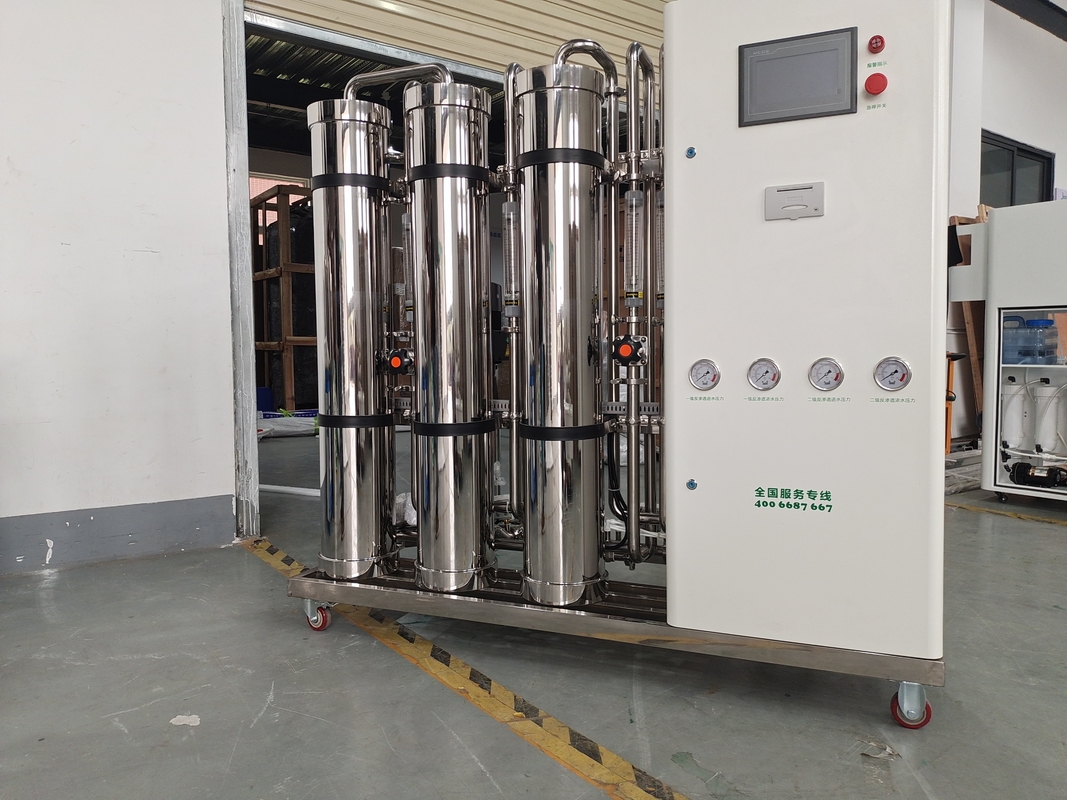

1000LPH Double Stage RO System By Complete SS Material 1

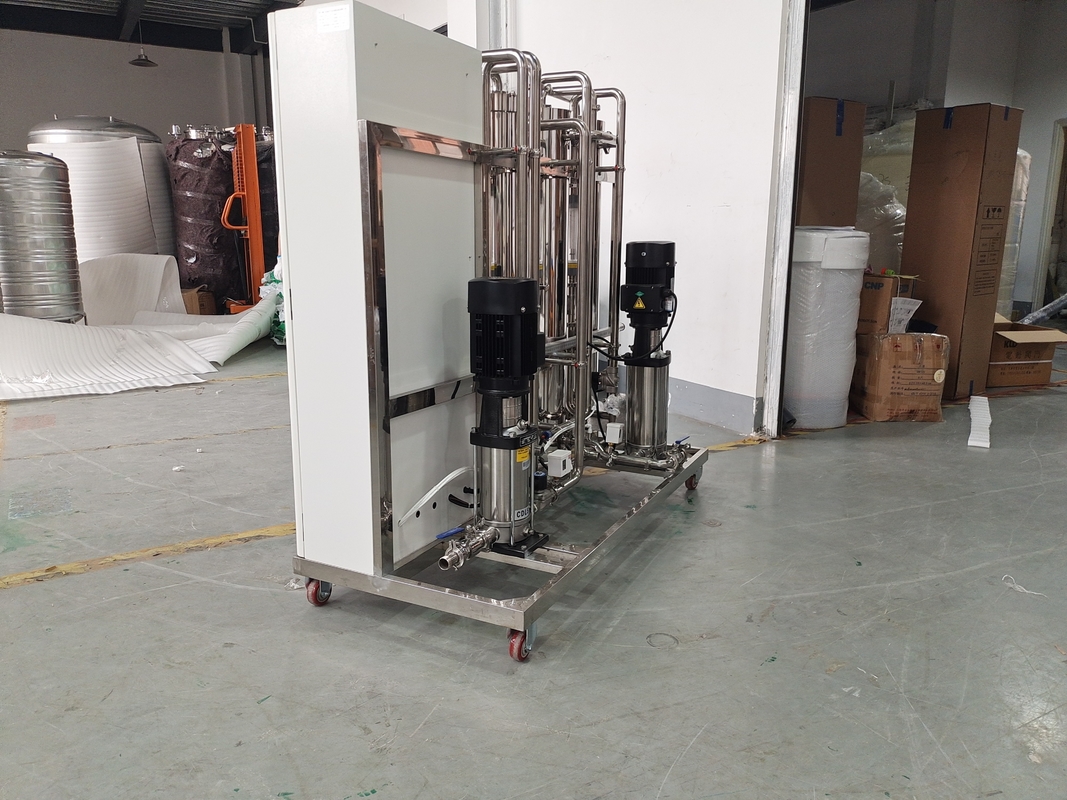

1000LPH Double Stage RO System By Complete SS Material 2
