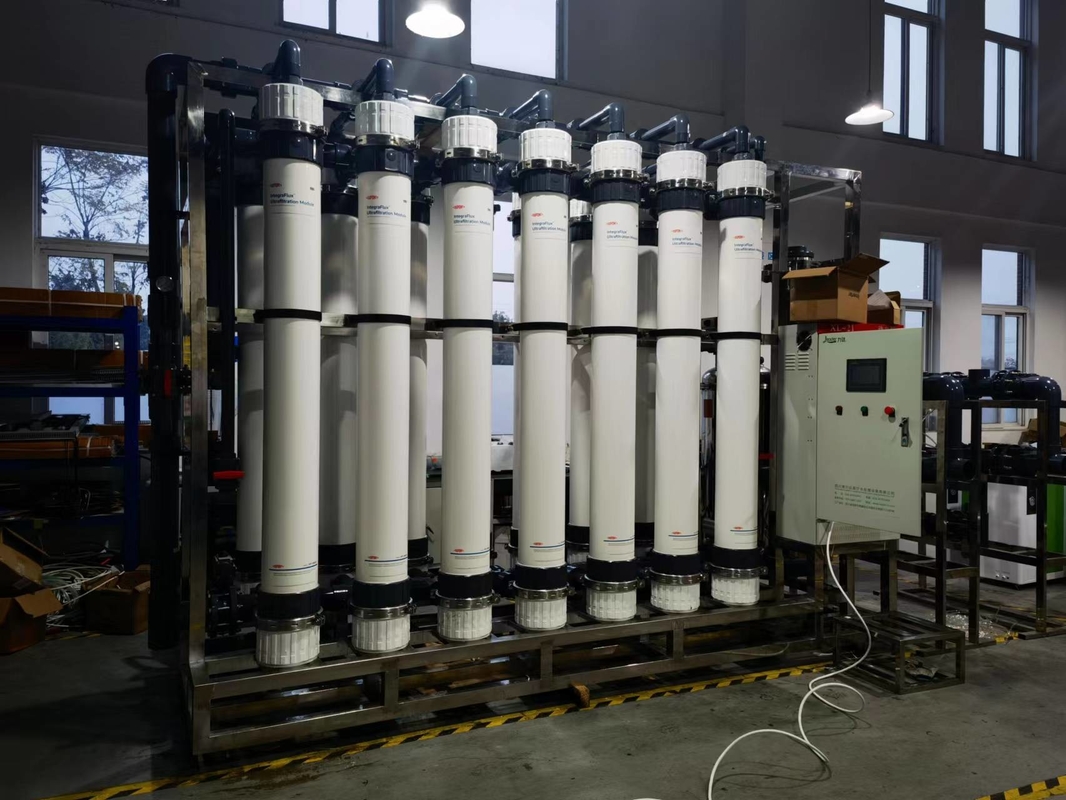

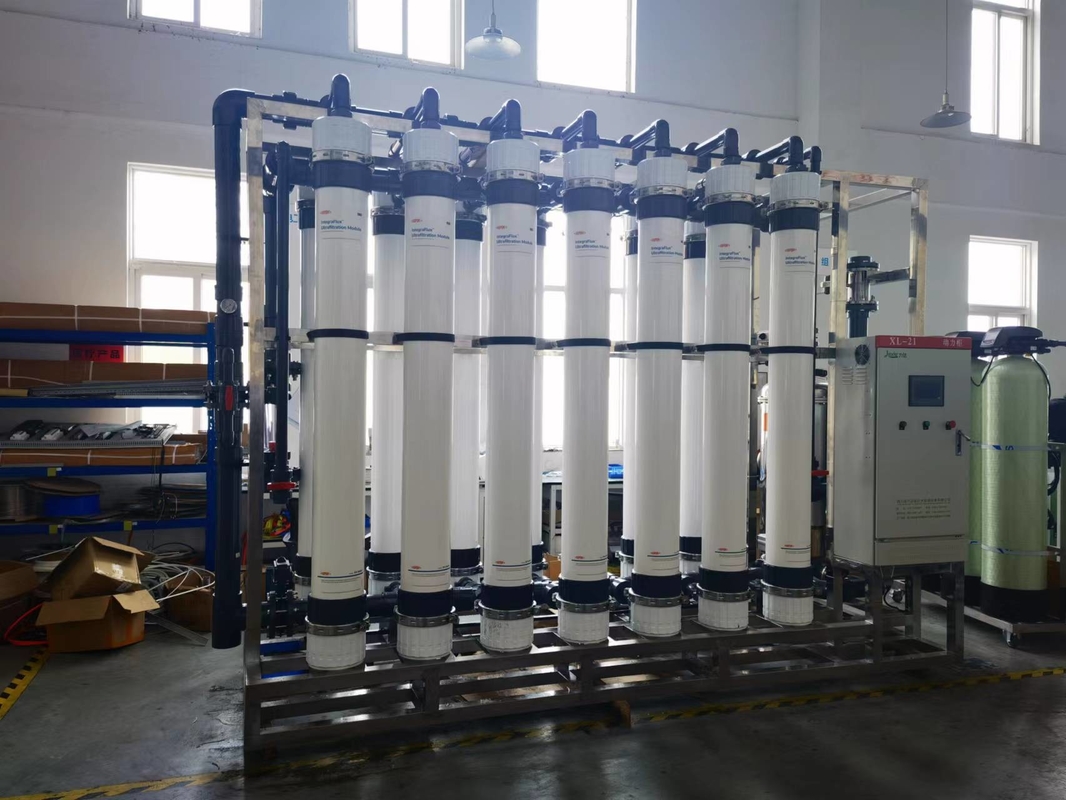

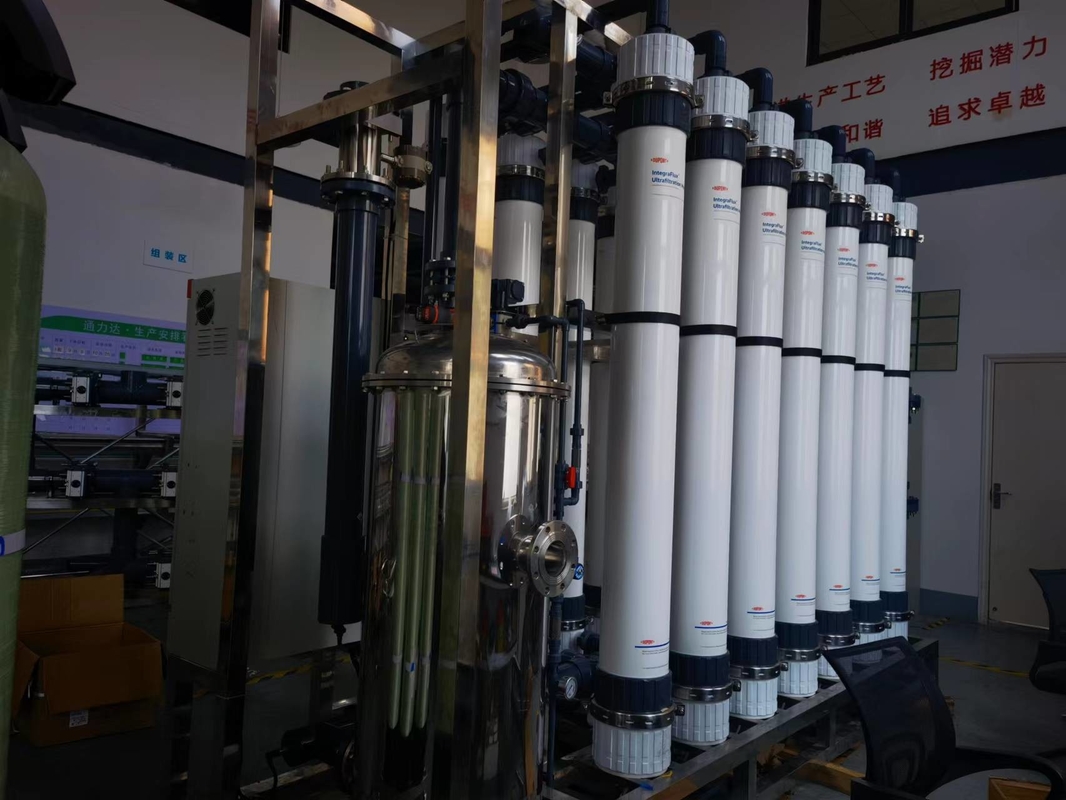

65000lph UF Membrane Filters Water Treatment Full Automatic

65000lph UF Membrane Filters Water Treatment Full Automatic

uf membrane filter Water Treatment

65000lph Ultrafiltration Membrane Filters

65000lph UF membrane filters

Place of Origin:

China

Brand Name:

Leader-t/OEM

Certification:

CE/ISO

Model Number:

LD-UF65000LPH

Contact Us

Request A Quote
Product Details
Product Name:
65000lph Industrial Ultrafiltration Membrane Filters Ultrafiltration Water Treatment Plant
Productivity:
65000L/Hour
Material Of Housing:
Anti-corrosive Carbon Steel Or Stainless Steel
Place Of Origin:
Chengdu,China
Core Components:
Pump, Bearing, PLC, Membrane
After Warranty Service:
Video Technical Support, Online Support, Field Maintenance A
Applicable Industries:
Hotels, Building Material Shops, Manufacturing Plant, Machin、Aquaculture Farms、 Small Water Plants
Capacity:
10-200m3/h
Payment & Shipping Terms
Minimum Order Quantity
1SET
Price
Negotiable
Packaging Details
Wooden /Box
Delivery Time
10-25 Days
Payment Terms
L/C, T/T, Western Union
Supply Ability
1000 Sets /Month
Product Description

65000lph Industrial Ultrafiltration Membrane Filters Ultrafiltration Water Treatment Plant



Specifications



item Ultrafiltration Systems
Brand name LD-UF65000lph
operating weight 12000kg
Overall dimensions L*W*H=3.7*1.3*2.7M
Voltage 380V/31KW
Warranty 1 Year
After-sales Service Provided Video technical support, Online support
Material PVDF,PVC-U
Usage

Drinking water factory/school/reatuarant/enterprise

MOQ 1
Control mode full-automatic
Inlet water quality

Groundwater, surface water, urban tap water







UF membrane water treatment plant system for water purification

Ultrafiltration system is one of membrane separation technologies with ultrafiltration membrane fiber as filter medium and pressure as driving force. For the purpose of separating large and small molecules, the pore size of the membrane is between 20-1000A°. Hollow fiber ultrafilter (membrane) has the advantages of high filling density per unit container and small footprint. A solution separation device in which the pressure difference on both sides of the membrane is the driving force. The ultrafiltration membrane only allows the solvent (such as water molecules), mineral salts and small organic substances in the solution to pass through, and intercepts the suspended substances, colloids, proteins and microorganisms and other large molecular substances in the solution, so as to achieve the purpose of purification or separation.



UF description

UF processes are currently limited by the high cost incurred due to membrane fouling and replacement. Additional pre-treatment of feed water is required to prevent excessive damage to the membrane units.

Quartz Sand Filter
It uses quartz sand as filter medium, effectively intercept to remove the suspended solids in the water, organic matter, colloid particles, microorganism, chlorine, smelling and some heavy metal ions, etc., finally to reduce water turbidity, purify water quality.

Activated Carbon Filter
activated carbon is used for both removing organic constituents and residual disinfectants (such as chlorine and chloramines) from water. We make media always by coconut shell which is the best quality media.
Activated carbon filter can effectively remove color, odor, residual chlorine, organic matter and heavy metals, synthetic detergent, such as bacteria, viruses and radioactive pollution.

Water softener
A water softener can be used to help prevent scaling in an RO system by exchanging scale forming ions with non scale forming ions. As with a MMF unit, it is important to have a 5 micron cartridge filter placed directly after the water softener in the event that the under drains of the softener fail.
Water softener is used to remove calcium and magnesium, and some other metal cations in the hard water.



Precision filter

Precision filter (also known as the security filter), the shell is generally made of stainless steel, and the interior uses PP melt-blowout, wire burning, folding, titanium filter element, activated carbon filter element and other tubular filter element as the filter element. Different filter elements are selected according to different filter media and design process, in order to meet the requirements of water quality.


Ultrafiltration (UF)

Ultrafiltration (UF) is a variety of membrane filtration in which forces like pressure or concentration gradients lead to a separation through a semipermeable membrane.Suspend solids and solutes of high molecular weight are retained in the so-called retentate, while water and low molecular weight solutes pass through the membrane in the permeat (filtrate). This separation process is used in industry and research for purifying and concentrating macromolecular (103 - 106 Da) solutions, especially protein solutions.



Flow chart



65000lph UF Membrane Filters Water Treatment Full Automatic 0



65000lph UF Membrane Filters Water Treatment Full Automatic 1

65000lph UF Membrane Filters Water Treatment Full Automatic 2

65000lph UF Membrane Filters Water Treatment Full Automatic 3

Foreign installation and training

1.Timely Delivery,considerate sales after service

2.Many Years quality warranty,OEM service.

3.Top Craftmanship, All products 100% tested

4.Preferential freight by Famous shipping company

5.New Design,Very popular style products recommendation for your local market.



After-sales Service

1. Starting from the date of the equipment installation is complete, free warranty for 12 months, overseas projects since the factory warranty from the date of 18 months

2. Warranty period of product problems, the seller free of charge and is responsible for transport costs

3. If the buyer need to on-site service, both sides talks things over solve.

4. Man-made or natural disaster damage caused by the seller to provide free telephone support, for service, the seller may be appropriate to charge the cost

5. If you need to extend the warranty period, the two sides resolved through consultation.
