Place of Origin:
China
Brand Name:
Leader-t/OEM
Certification:
CE/ISO
Model Number:
LD-UF1000LPH
Contact Us
UF Membrane Water Treatment Plant System For Water Purification Ultrafiltration Water Treatment Plant
Specifications
| item | Ultrafiltration Systems |
| Brand name | LD-UF1000lph |
| Weight | 230-300kg |
| Overall dimensions | L*W*H=150*580*160CM |
| Voltage | 220V/380V |
| Warranty | 1 Year |
| After-sales Service Provided | Video technical support, Online support |
| Material | FRP |
| Usage | drinking water factory/school/reatuarant |
| MOQ | 1 |
| Control mode | automatic |
| Inlet water quality | TDS≤500ppm |
UF membrane water treatment plant system for water purification
UF system is a solution separation device in which an UF membrane fiber is used a filtration medium, membrane two side's pressure difference as a driving force. The UF membrane is only allows the solvent(such as water molecules), mineral salts and small molecular organic substances in the solution to pass through, and the macromolecular substances such as suspended matter, colloid, protein and microorganisms in the solution are intercepted, Thereby achieving the purpose of purification or separation
UF System Application
1. RO pre-treatment and post-treatment,raw water includes sea water, surface water,well water and waste water etc.
2. Drinking water treatment.
3 .Condensate water reuse.
4. Pharmaceutical industry to remove pyrogen.
5. Municipal water,surface water and well water treated for drinking.
6. Waste water deep treated for recycling.
7. Turbidity removal of liquor,removing bacterial and turbidity from fruit wine,grape wine and yellow rice wine.
8. Applied to industries of concentration treatment such as food,beverages,fermentation,milk.
Flow chart

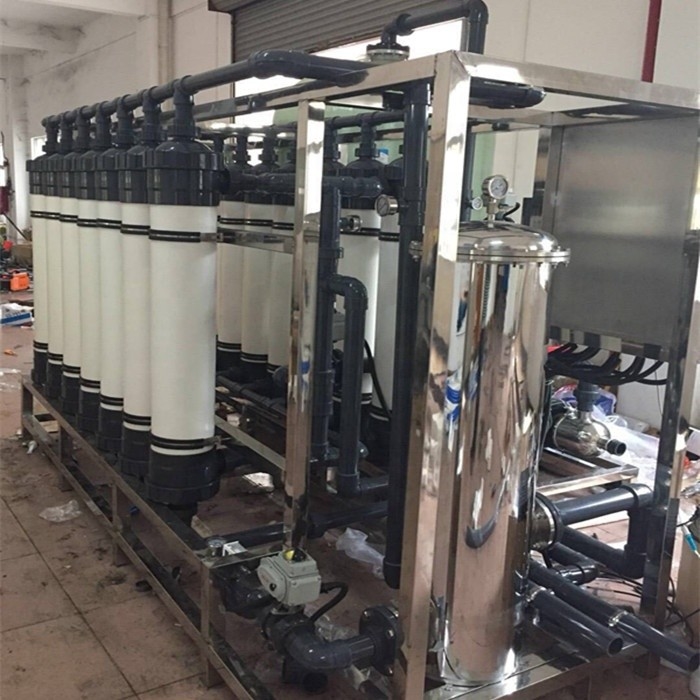

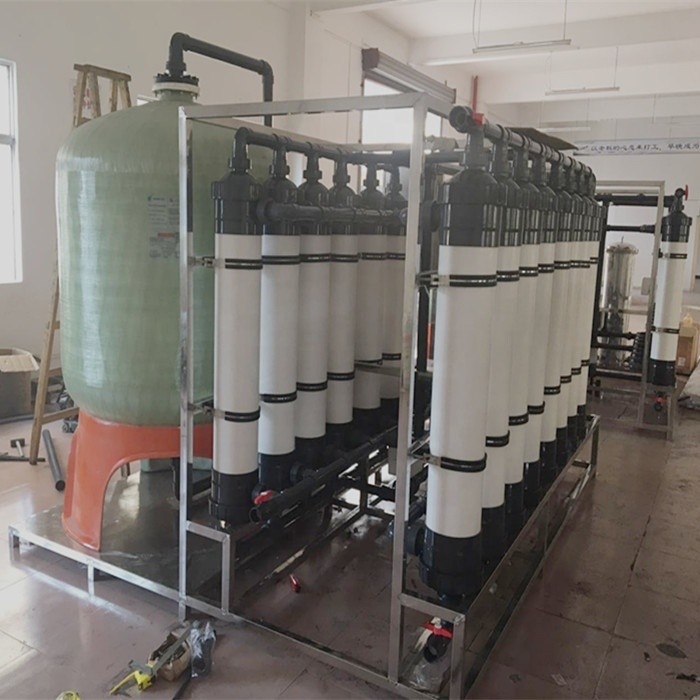

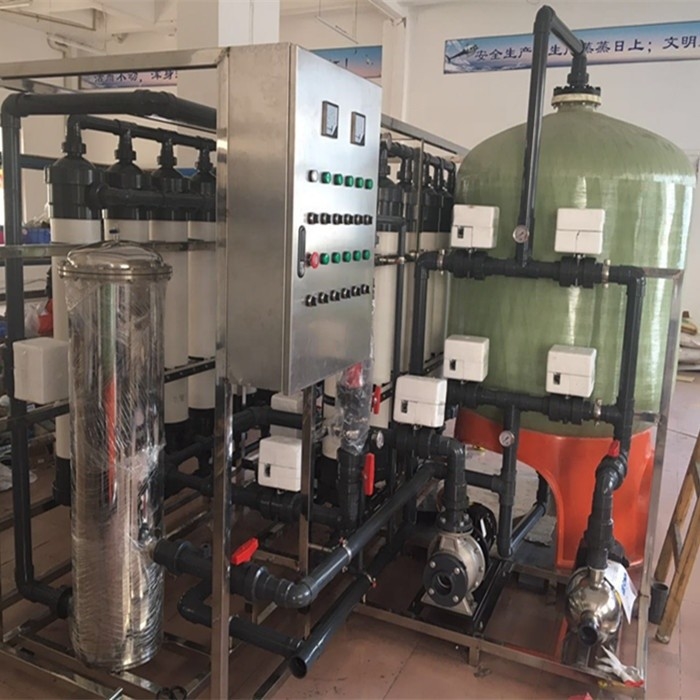

Pictures
