Place of Origin:
China
Brand Name:
Leader-t/OEM
Certification:
CE/ISO
Model Number:
LD-UF1000LPH
Contact Us
UF System Water Treatment Equipment With Lower Price Ultrafiltration Water Treatment Plant
Specifications
| item | Ultrafiltration Systems |
| Brand name | LD-UF1000lph |
| Weight | 230-300kg |
| Overall dimensions | L*W*H=150*580*160CM |
| Voltage | 220V/380V |
| Warranty | 1 Year |
| After-sales Service Provided | Video technical support, Online support |
| Material | FRP |
| Usage | drinking water factory/school/reatuarant |
| MOQ | 1 |
| Control mode | automatic |
| Inlet water quality | TDS≤500ppm |
1. The design water flux of the membrane element should be selected according to the low flux specified in the membrane element manufacturer. The design flux of the ultrafiltration membrane is 55 L/m2•h. The minimum number of membrane elements is calculated as follows: net output of the device/ 0.85/(design flux×single membrane area).
2. Ultrafiltration membranes are required to have the characteristics of strong anti-pollution ability, good chemical stability, and good mechanical strength. The pore size of the filter element can meet the requirements of removing colloidal silicon. Under the condition of ensuring the quality and quantity of the effluent, the membrane service life is more than five years.
3. The material of the membrane shell of the ultrafiltration membrane is polyvinyl chloride, and the material of the end cover is the same material. ⑸ The design form of ultrafiltration membrane is according to cross-flow filtration or circulating cross-flow filtration mode.
4. Water recovery rate of ultrafiltration device: ≥90% (10℃), removal rate of colloidal silicon of ultrafiltration device: ≥99% (10℃), SDI of produced water ≤3.
Flow chart

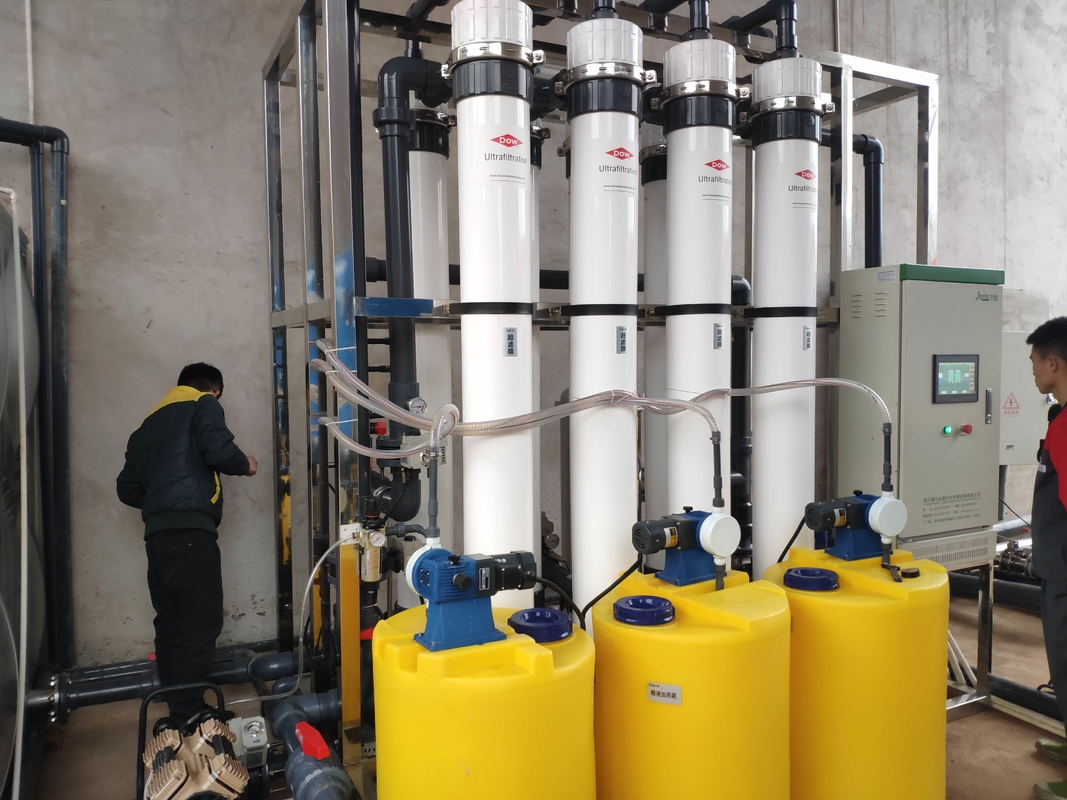

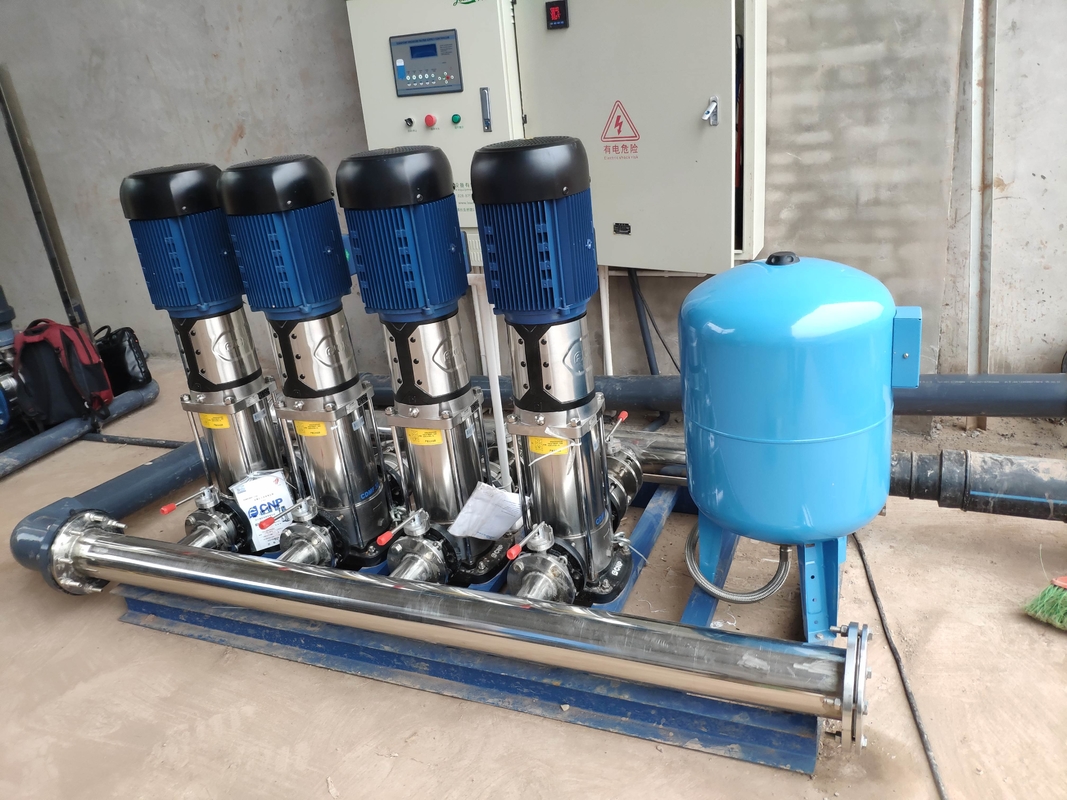

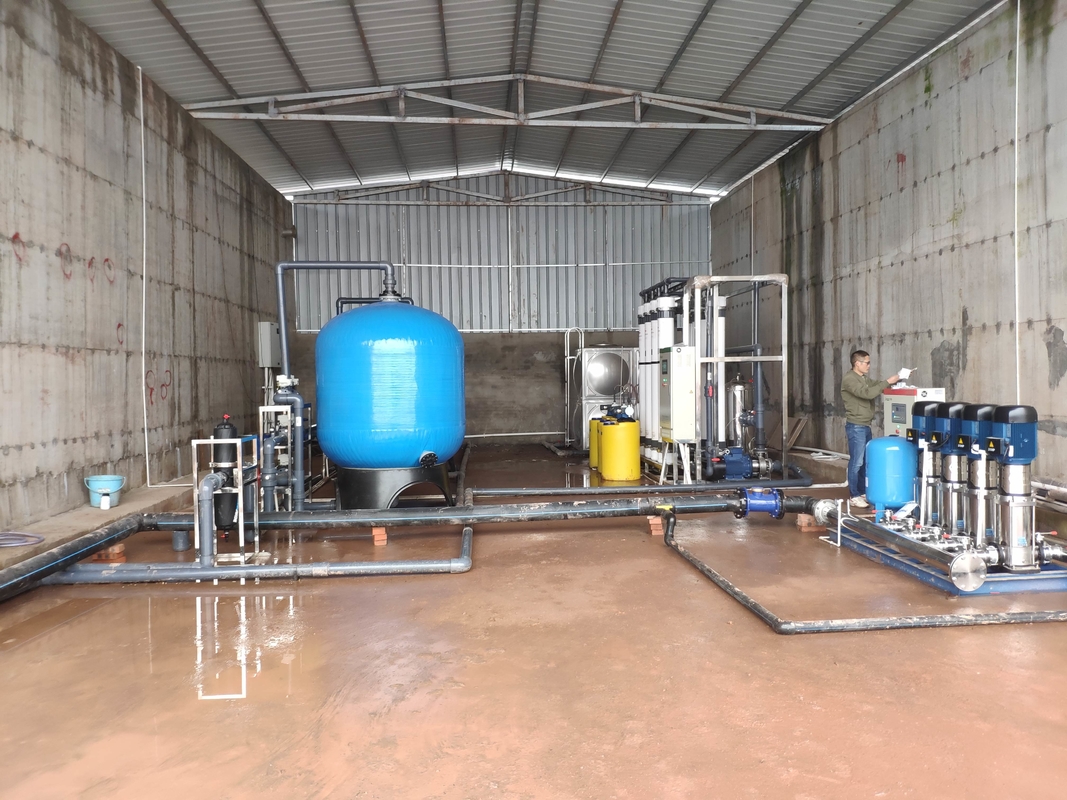

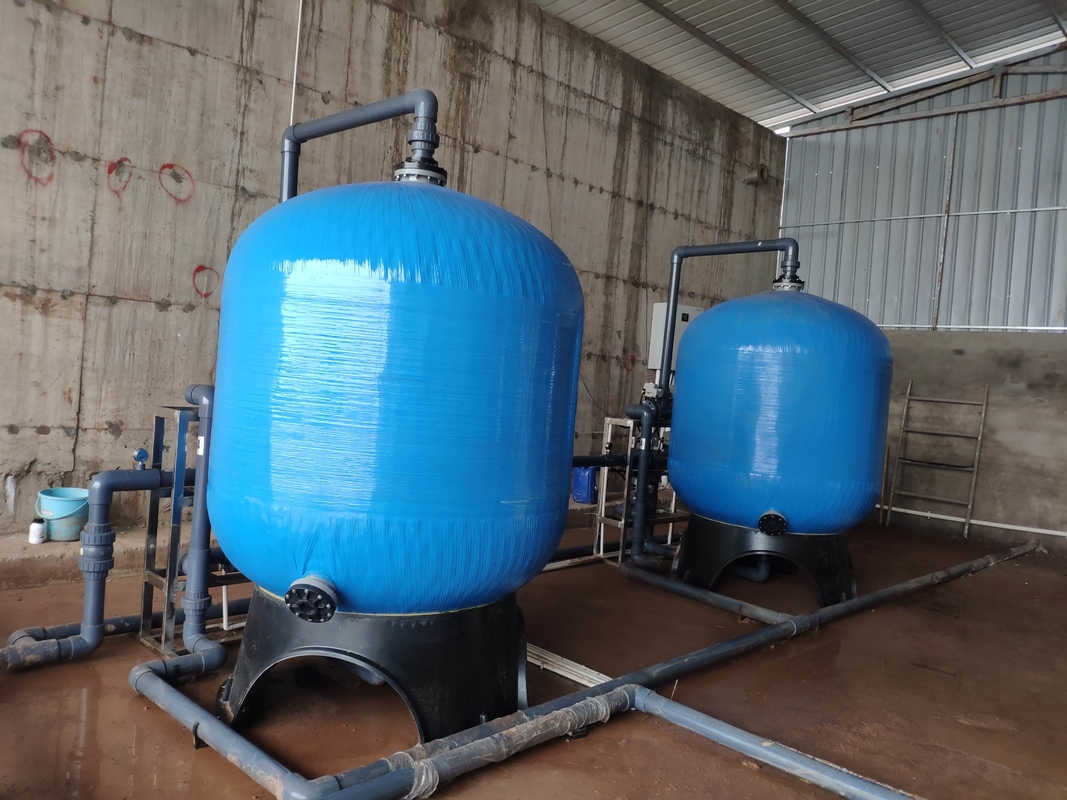

Pictures
