Place of Origin:
China
Brand Name:
LEADER-T /OEM
Certification:
CE/ISO
Model Number:
LD-RO300LPH
Contact Us

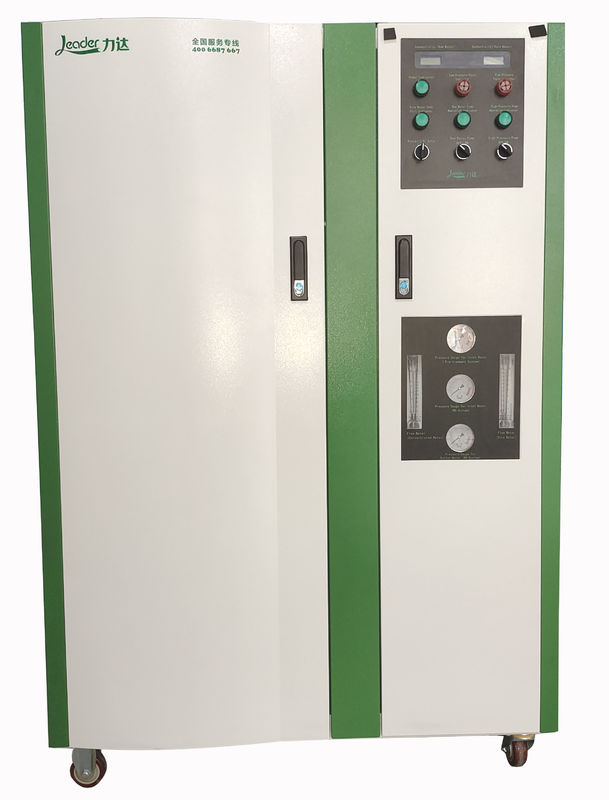

300Liter Per Hour Single Pass RO System For Water Purification Plant
The water purification system of the water purifier takes the reverse osmosis membrane as the core. The part before the reverse osmosis membrane can be called pre-treatment, and the part after the reverse osmosis membrane is called post-treatment. Reverse osmosis water purifier is a device that integrates microfiltration, adsorption, ultrafiltration, reverse osmosis, UV sterilization, ultra purification and other technologies to directly convert tap water into ultra pure water. The core element of reverse osmosis pure water unit is reverse osmosis (RO) membrane. The pure water produced by reverse osmosis pure water mechanism is fresher, healthier and safer than barreled water. It is widely used.
specification
Model | LDM-III-A-100 | LDM-III-A-200 | LDM-III-A-300 |
productivity | 100L/H | 200L/H | 300L/H |
produced water conductivity |
≤15us/cm |
≤15us/cm |
≤15us/cm |
Power | 1.5KW | 1.5KW | 1.5KW |
Applicable original water pressure | 0.1-0.5mpa | 0.1-0.5mpa | 0.1-0.5mpa |
Supply water pressure | 0.2-0.3mpa | 0.2-0.3mpa | 0.2-0.3mpa |
Working process :
Raw water--- AC filter--- Water Softener---Security filter---High prssure pump---- RO membrane ---Pure water out
Our advantages:
1. Rate of desalination up to 98%~99%
2. Pure water obtaining rate is up to 75%
3. Continuously purifying water for 24 hours
4. PLC control automatic flushing function.
5. Optional UV sterlilizer & Ozone generator
6. Low operating cost and long life span.
Pictures
Pressure gauge
LCD
warehouse

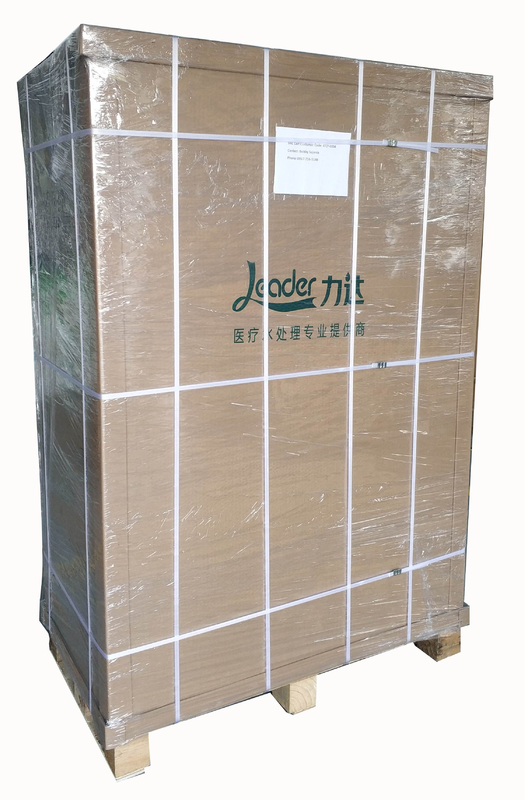

package
