Place of Origin:
China
Brand Name:
LEADER-T /OEM
Certification:
CE/ISO
Model Number:
LD-RO300LPH
Contact Us

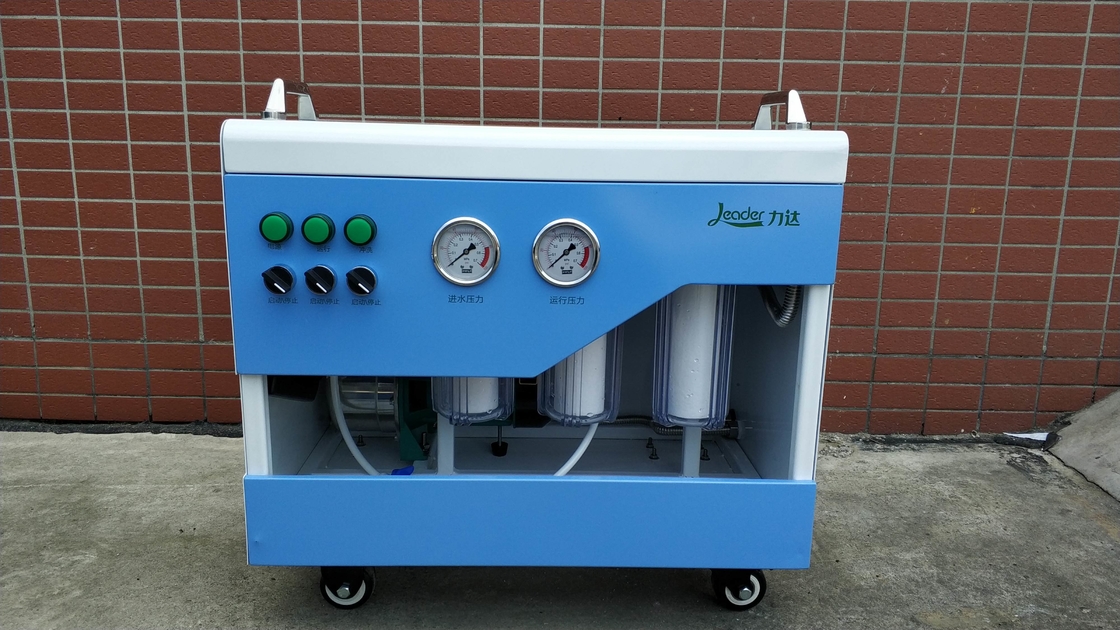

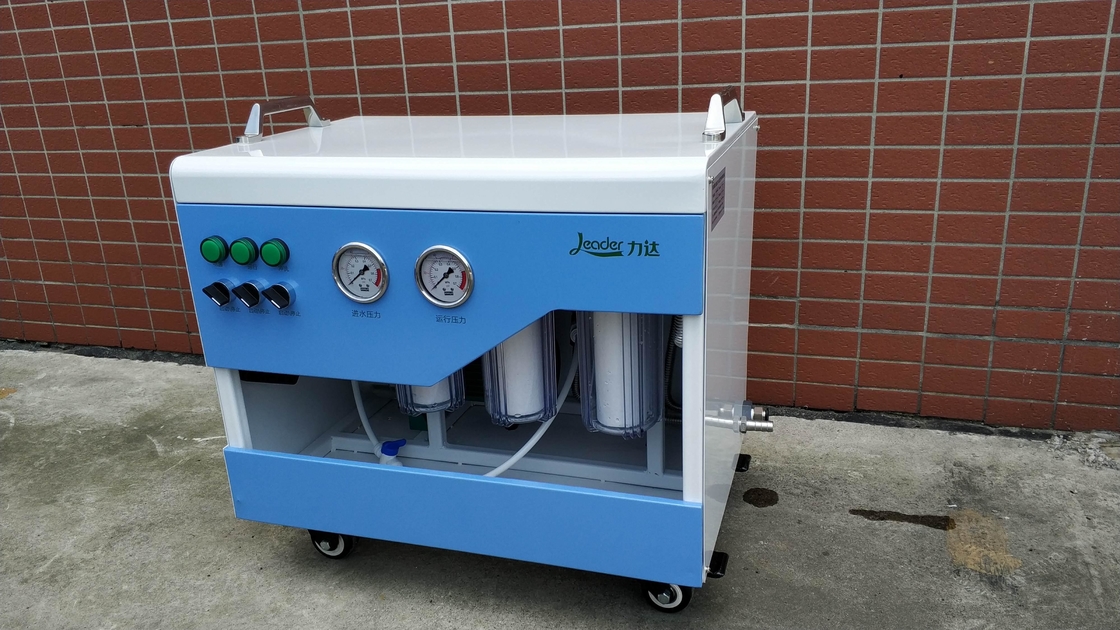

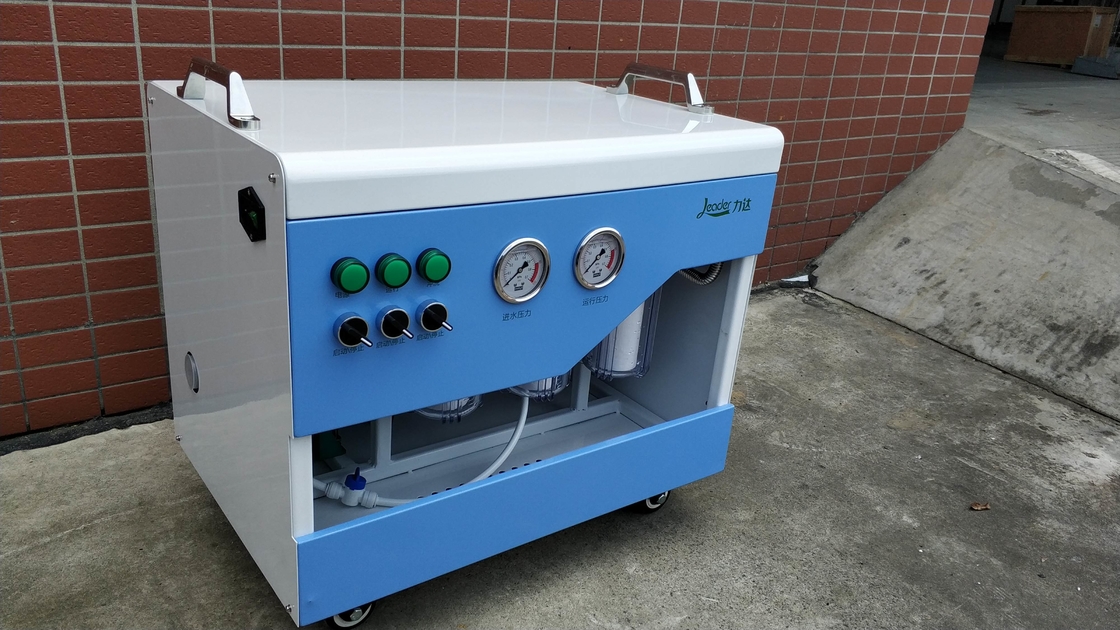

400L Ro Water Drinking SystemSingle Pass RO System
specification
| Configuration list | ||||
| Configuration | Material | SPEC | Brand | |
| Tank | FRP /SS | 844/725/1065etc | Domestic/Pentair etc. | |
| Value | / | Auto/Manual | Domestic/Pentair etc | |
| Filter | quartz sand | 20-80 mesh | Domestic | |
| Active Carbon | 600-1100Mg/g | Domestic | ||
| Resin | / | Domestic PUROLITE,Rohm Hass | ||
| Ro membrance | Cellulose acetate membrane,element | 1812/2521/2540,4040/8040 etc.. | VONTRON/DOW,HYDRANAUTIC/Dongli | |
| Controlling System | / | PLC ,Maunal,Electric control | Domestic,Siemens | |
| Pipe/Value | Upvc/ss304/ss316 | DN15-DN150 | Domestic | |
| Pump | SS/Iron/Copper | CNP,Grundfos | ||
| Optional | Customize the design according to the customer's URS | |||
| Application | Drinking, cleaning, beverage, industrial and mining enterprises and so on. | |||
Flow chart
Raw water→ 1. Booster pump→ 2. Sand(multi-medium) filter→3. Active carbon filter→4. Softener (optional)→ 5. Security(micron) filter→6. High pressure pump→7. Reverse osmosis system→ 8. UV sterilizer (ozone generator) →Pure water storage tank
Equipment Purpose Editing
Reverse osmosis water treatment equipment is mainly used in the following aspects:
Make electronic industry production such as monocrystalline silicon semiconductor integrated circuit block, picture tube, glass shell, liquid crystal display and other manufacturing industry with pure water, ultra-pure water.
Pharmaceutical industry water: pharmaceutical, preparation process water, medical hemodialysis, biochemical analysis, infusion, etc.
Making thermal and thermal power generation boilers, factories and mining enterprises, low pressure boiler feed water softening water, desalination of pure water.
Drinking purified water, distilled water, natural water, mineral water, mineralized water in beverage industry, pure water for liquor blending in wine production, water for beer saccharization feeding and pure draft beer filtration, etc.
Quality water supply network for hotels, buildings, communities and swimming pools.
Deionized water for electroplating process, pure water for battery (battery) production process, pure water for surface coating and cleaning of automobile, household appliances and building materials products, pure water for coated glass, and dehardened brine for textile printing and dyeing process.
Petrochemical industry such as chemical reaction cooling, chemical chemicals, chemical fertilizers and fine chemicals, cosmetics manufacturing process used in the process of pure water
Pictures
