Water Filter System Drinking Water Treatment Machine 500Lph For RO Plant

Water Filter System Drinking Water Treatment Machine 500Lph For RO Plant

500Lph Drinking Water Treatment Machine

RO Plant Drinking Water Treatment Machine

Water Filter Single Pass RO System

Place of Origin:

China

Brand Name:

LEADER-T /OEM

Certification:

CE/ISO

Model Number:

LD-RO500LPH

Contact Us

Request A Quote
Product Details
Product Name:
500Lph Water Filter System Drinking Water Treatment Machine RO Plant Price
Output:
500lph
Productivity:
500LPH
Capacity:
100-1000000LPH
Packing:
Wooden Box
Core Components:
RO Membrane
After-sales Service:
Video Technical Support, Field Installation
Certification:
CE,ISO9001,ISO 14001
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
Wooden/ Box
Delivery Time
7-15 Days
Payment Terms
L/C, T/T, Western Union
Supply Ability
1000 Set /Month
Product Description

500Lph Water Filter System Drinking Water Treatment machine RO Plant Price



Features:

  • automatic operationand manual operation are available.
  • Multi-stage pretreatment can prolong the life of membrane.
  • Simple operation,automatic continuous water production.
  • Real-time online monitoring of raw water quality and purified water quality.
  • Automatic standby when the raw water is short of water and the water tank is full.
  • Low voltage protection,high voltage protection,short circuit protection and over load protection.



Application:



  • High quality drinking water for residential quarters
  • Purified water production plant
  • Raw material water for the food industry
  • Water preparation for dairy, beverage and wine industry
  • Water for the chemical industry
  • Boiler water for the power industry.

specification



Configuration list
Configuration Material SPEC Brand
Tank FRP 1054 Domestic
Value / Auto  Domestic
Filter quartz sand 12-20 mesh Domestic
  Active Carbon 600-1100Mg/g Domestic
  Resin / Domestic PUROLITE,Rohm Hass
Ro membrance Cellulose acetate membrane,element 4040 DOW
Controlling System / PLC ,Maunal,Electric control Domestic,Siemens
Pipe/Value ss304 DN15-DN150 Domestic
Pump SS/Iron/Copper   CNP,Grundfos
Optional Customize the design according to the customer's URS
Application Drinking, cleaning, beverage, industrial and mining enterprises and so on.




specification



water capacity 500L/H
Power voltage 380V / 50Hz
Rated power 2.75Kw
Raw water pressure 0.15mpa~0.5mpa
Raw water temperature 5~35
operating pressure 0.6mpa~12mpa
pressure of supply water 0.2mpa~0.3mpa
environment temperature 5℃~35℃
disinfection method ultraviolet disinfection





Flow chart

Water Filter System Drinking Water Treatment Machine 500Lph For RO Plant 0

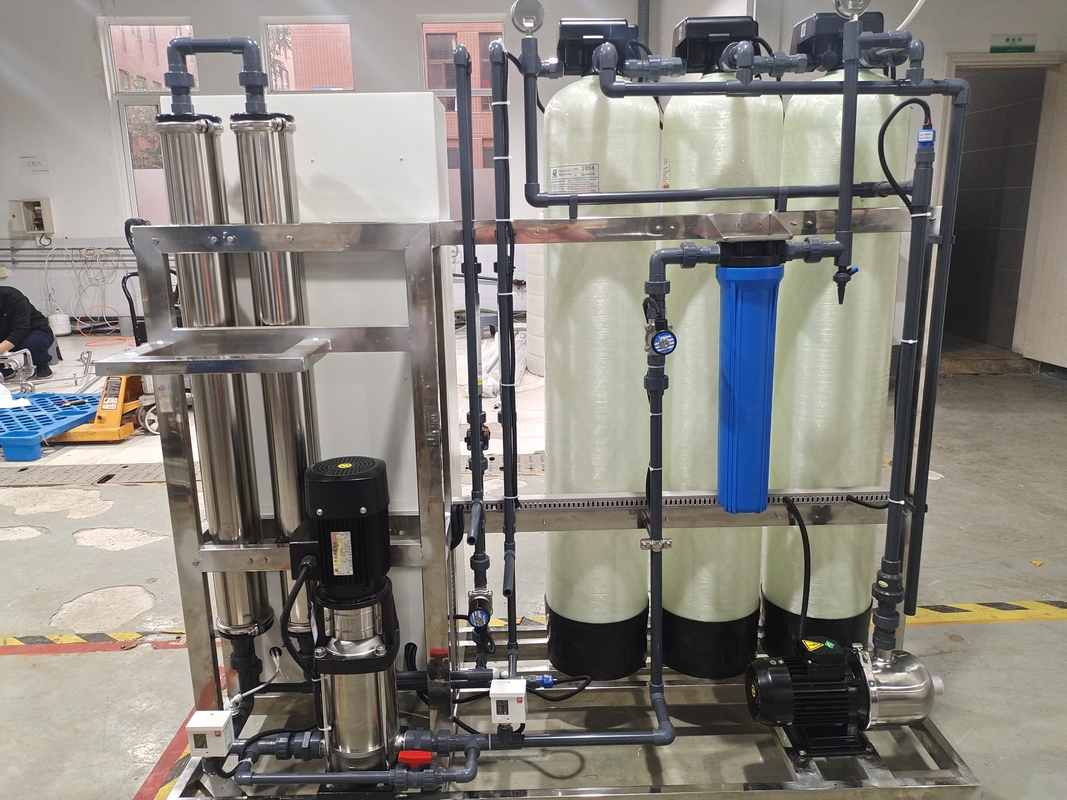

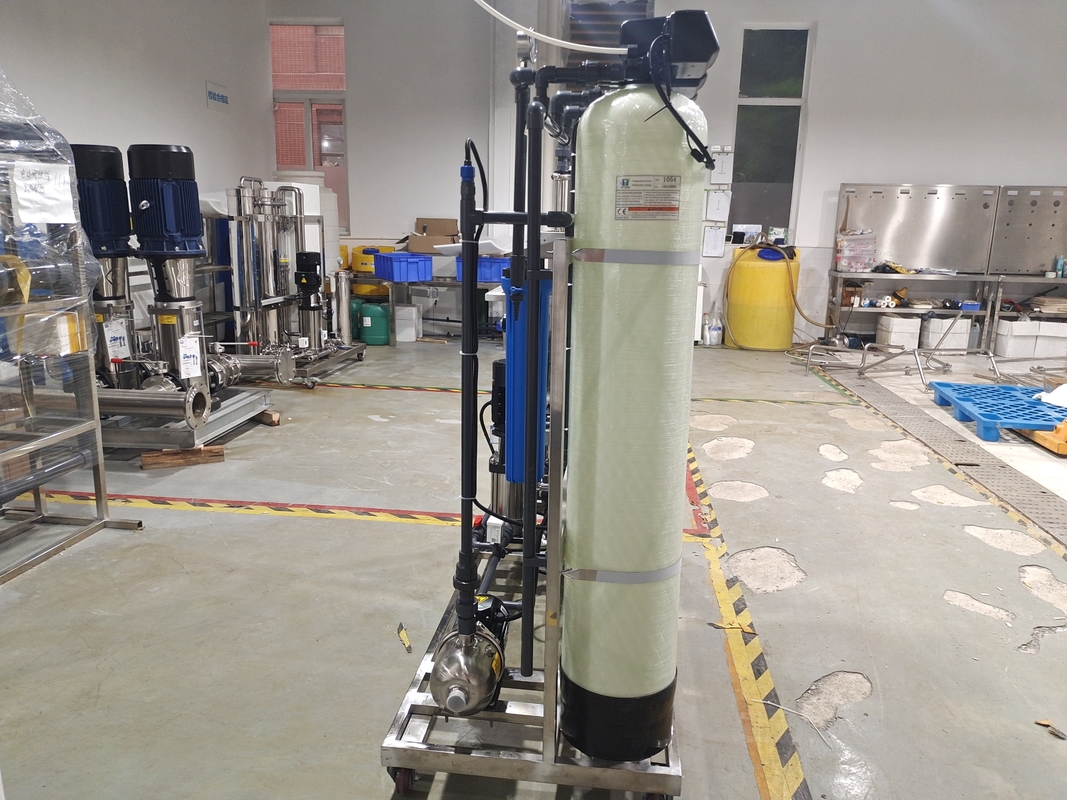

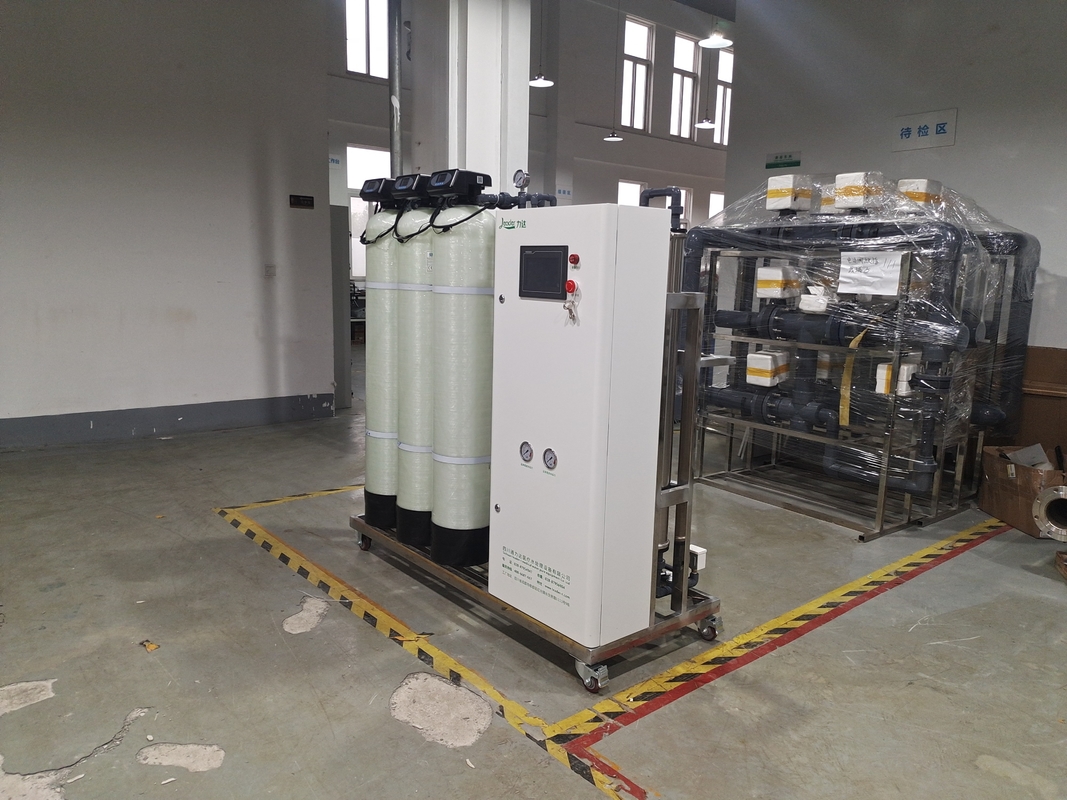

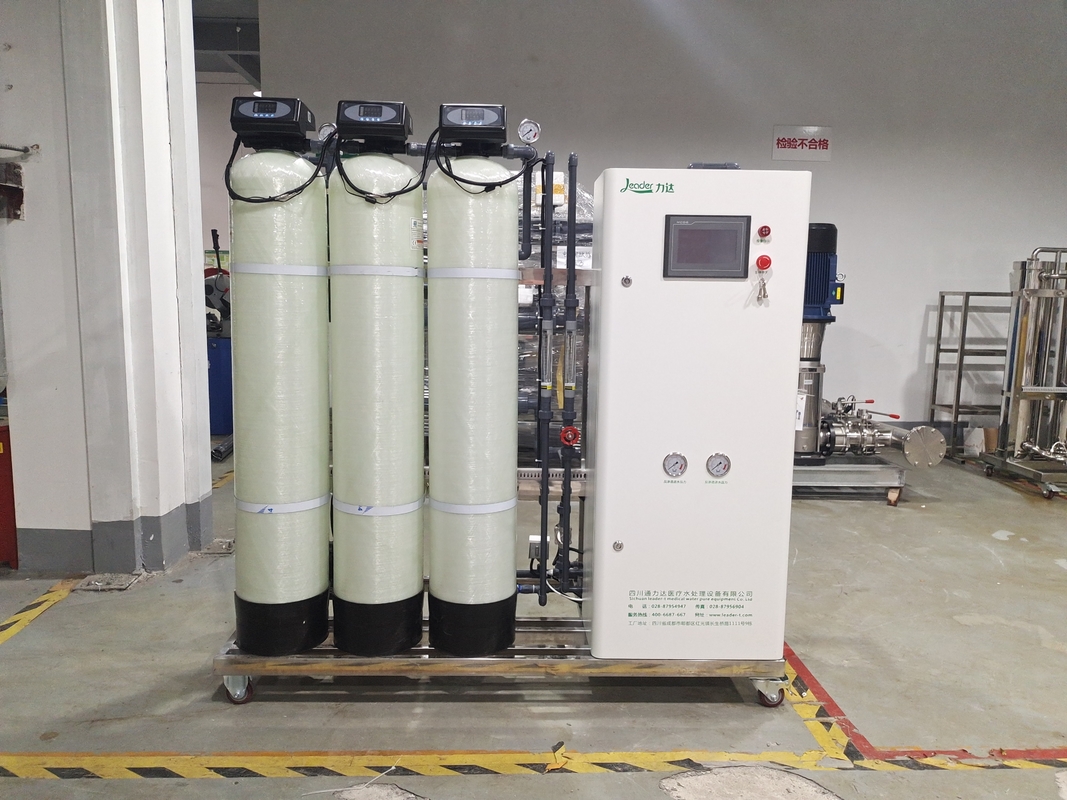

Pictures



Water Filter System Drinking Water Treatment Machine 500Lph For RO Plant 1



Water Filter System Drinking Water Treatment Machine 500Lph For RO Plant 2



Water Filter System Drinking Water Treatment Machine 500Lph For RO Plant 3



Water Filter System Drinking Water Treatment Machine 500Lph For RO Plant 4
