Cabinet Type Single Pass RO System Water Treatment Plant 300L Per Hour

Cabinet Type Single Pass RO System Water Treatment Plant 300L Per Hour

Cabinet Type Single Pass RO System

300LPH Single Pass RO System

Anti Scaling 300 Lph Ro Plant

Place of Origin:

China

Brand Name:

LEADER-T /OEM

Certification:

CE/ISO

Model Number:

LDM-III-A-300

Contact Us

Request A Quote
Product Details
Product Name:
Cabinet Type RO Water Plant
Power:
2.0KW
Productivity:
300LPH
Operation Pressure:
0.2-0.3Mpa
Core Components:
RO Membrane,
After-sales Service:
Video Technical Support, Field Installation
Certification:
CE,ISO9001,ISO 14001
Packing:
Wooden Case
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
Wooden/ Box
Delivery Time
7-15 Days
Payment Terms
L/C, T/T, Western Union
Supply Ability
1000 Set /Month
Product Description

300L Per Hour Cabinet Type Single Pass RO System Water Treatment Plant



This RO system water plant is designed to cabinet type, which is mainly used in the water system of the dental center of the hospital to provide pure water for other equipment in the dental center; The pure water productivity is 300L per hour. The RO system water plant include the pre-treatment system and the Reverse osmosis system; The pretreatment system include the media filter, AC filter,the water softener and security filter.







Advantages:



1. Use reverse osmosis purification technology to remove pollutants and bacteria in water;
2. Fully automatic RO anti-scaling and low-pressure flushing, prolonging the service life of RO membrane;
3. With water shortage protection, low pressure protection, high pressure protection, water full prompt, fault alarm and other functions;
4. Adopt double sterilization, ozone degradation and ultraviolet sterilizer;
5. Circulating water supply to reduce the risk of microbial growth;

Specification



Configuration list
Configuration Material SPEC Brand
Tank FRP /SS 844/725/1065etc Domestic/Pentair etc.
Value / Auto/Manual Domestic/Pentair etc
Filter quartz sand 20-80 mesh Domestic
  Active Carbon 600-1100Mg/g Domestic
  Resin / Domestic PUROLITE,Rohm Hass
Ro membrance Cellulose acetate membrane,element 1812/2521/2540,4040/8040 etc.. VONTRON/DOW,HYDRANAUTIC/Dongli
Controlling System / PLC ,Maunal,Electric control Domestic,Siemens
Pipe/Value Upvc/ss304/ss316 DN15-DN150 Domestic
Pump SS/Iron/Copper   CNP,Grundfos
Optional Customize the design according to the customer's URS
Application Drinking, cleaning, beverage, industrial and mining enterprises and so on.




Pictures:

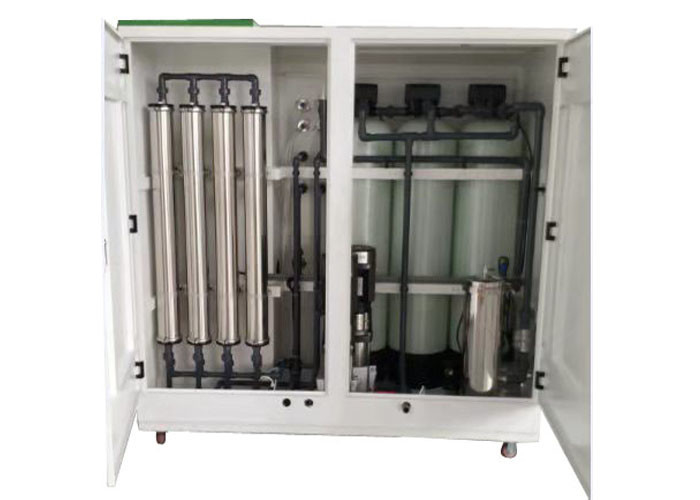

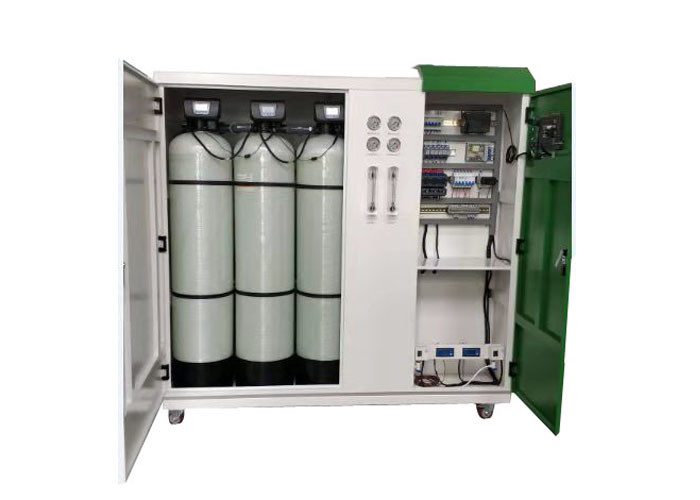

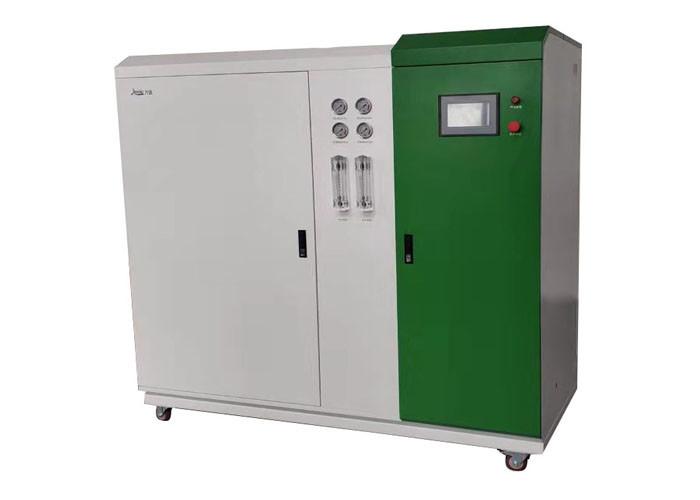

Cabinet Type Single Pass RO System Water Treatment Plant 300L Per Hour 0Cabinet Type Single Pass RO System Water Treatment Plant 300L Per Hour 1Cabinet Type Single Pass RO System Water Treatment Plant 300L Per Hour 2
