Double Pass Reverse Osmosis System 50-70% Water Recovery Rate 1000LPH

Double Pass Reverse Osmosis System 50-70% Water Recovery Rate 1000LPH

Double Pass Reverse Osmosis System

70% Water Recovery Rate RO System

1000LPH Reverse Osmosis System

Place of Origin:

China

Brand Name:

LEADER-T /OEM

Certification:

CE/ISO

Model Number:

LDM-II-B-1000

Contact Us

Request A Quote
Product Details
Product Name:
1000LPH Water Filtration Two Stage RO System
Productivity:
1000Liter / Hour
Warranty:
1 Year For Main Components
Core Components:
High Pressure Pump,Pre-treatment Filters, RO System
After-sales Service:
Video Technical Support, Field Installation
Certification:
CE,ISO9001,ISO 14001
Material:
Stainless Steel
Usage:
University,Labratory, Hospital, And Medicine Company
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
Wooden/ Box
Delivery Time
7-15 Days
Payment Terms
L/C, T/T, Western Union
Supply Ability
1000 Set /Month
Product Description

1000Liter Per Hour Stainess Steel Water Filtration Double Pass Reverse Osmosis System





Reverse osmosis water filtration RO system includes two parts: pretreatment system and reverse osmosis. The two-stage reverse osmosis water filtration device is also called two-stage reverse osmosis, which is followed by a second reverse osmosis treatment. The raw water after rough filtration is pressurized into the pretreatment system. After entering the precision filter, it is pressurized by the liquid level high pressure pump and sent into the liquid level reverse osmosis system again. The pressure output from the secondary high pressure pump of the system is again output to the secondary reverse osmosis system. The product water is called secondary reverse osmosis.



Main configuration of two-stage reverse osmosis:





The pretreatment system is configured with: raw water pump, multi-media filter, activated carbon filter, automatic water softener, pipeline, valve

The DRO reverse osmosis system is equipped with: first-level high-pressure pump, second-level high-pressure pump, reverse osmosis membrane, reverse osmosis membrane shell, membrane frame, control system water inlet, solenoid valve, flush solenoid valve, pressure regulating valve, high pressure switch, low pressure switch , Precision filters, pipelines, valves.

The storage system includes: liquid level controller, water tank.





Specifications:



Model LDM-II-B-1000
Voltage/frequency 380V,220V / 50Hz
Capacity 1000LPH
Desalting rate 99%
Water Recovery rate 50-70%
Conductivity of pure water ≤10μs









Pictures

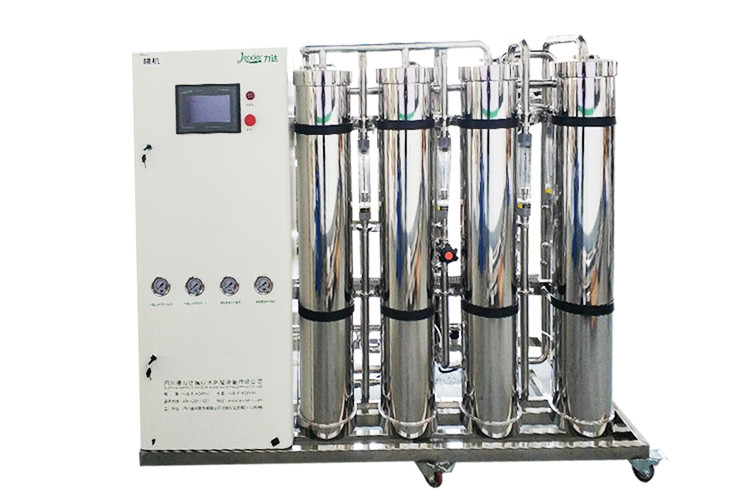

Double Pass Reverse Osmosis System 50-70% Water Recovery Rate 1000LPH 0

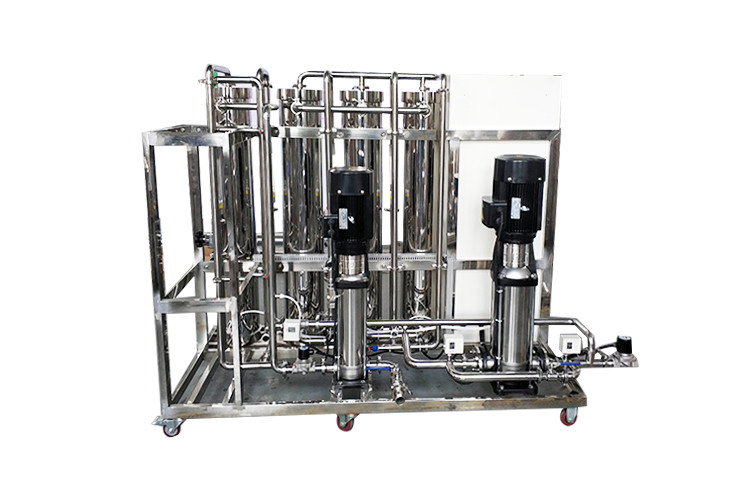

Double Pass Reverse Osmosis System 50-70% Water Recovery Rate 1000LPH 1

Double Pass Reverse Osmosis System 50-70% Water Recovery Rate 1000LPH 2
