Place of Origin:
China
Brand Name:
LEADER-T /OEM
Certification:
CE/ISO
Model Number:
LDM-II-B-1000
Contact Us

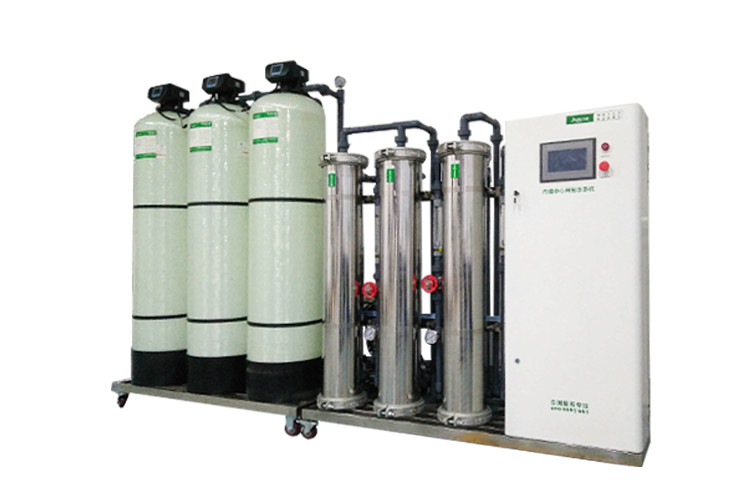

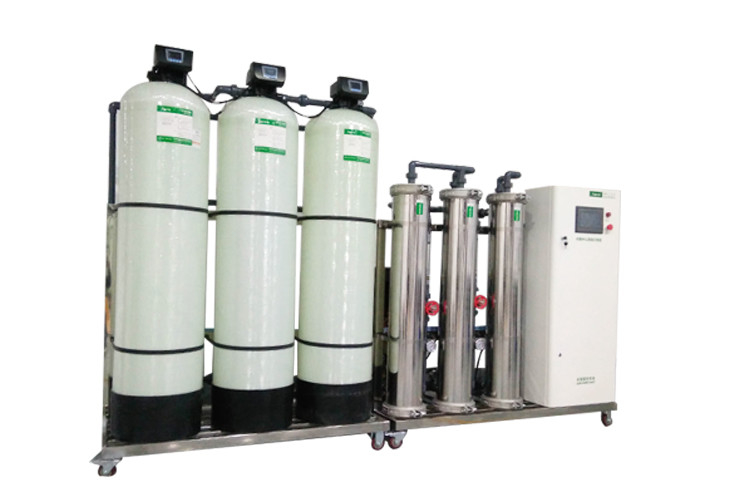

1000L/H water treatement double pass reverse osmosis system is mainly used for drinking water project, the production capacity is 1000L per hour, the raw water could be the underground water, lake water and river water.
The reverse osmosis system provides you with purified water from the faucet through simple settings. Installing reverse osmosis systems can remove concerns about the most common water pollutants. These multi-stage water filtration systems can remove up to 99% of total dissolved solids (TDS) from your water supply, providing fresh and contaminant free water.
Specification:
Model | TLD-1000 |
Production capacity | 1000L/H |
Voltage | 380V,3 phase or customized |
Frequency | 50Hz |
Power | 3KW |
Water pump | Nanfang |
Pre-treatment | Media filter+ AC filter+ Water softener |
Precsion Filter | 20 inch |
Reverse osmosis | two stage, membrane:4040 |
Desinfection | UV |
Raw water:
Process:
Raw water— raw water pump —quartz sand filter — active carbon filter — water softener — cartridge filter — primary high-pressure pump — primary RO system — secondary high-pressure pump— secondary RO system — pure water tank
—converter—water point.
Detail Pictures:
