250L/H Ro Water Plant Machine For Commercial Drinking System

250L/H Ro Water Plant Machine For Commercial Drinking System

250L/H Ro Water Plant Machine

Membrane Ro Water Plant Machine

PLC Ro Water Plant Machine

Place of Origin:

China

Brand Name:

LEADER-T /OEM

Certification:

CE/ISO

Model Number:

LD-RO250LPH

Contact Us

Request A Quote
Product Details
Product Name:
250L/Hr RO Water Plant Equipment For Commercial Drinking System
Output:
250lph
Productivity:
250LPH
Capacity:
100-1000000LPH
Packing:
Wooden Box
Core Components:
RO Membrane
After-sales Service:
Video Technical Support, Field Installation
Certification:
CE,ISO9001,ISO 14001
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
Wooden/ Box
Delivery Time
7-15 Days
Payment Terms
L/C, T/T, Western Union
Supply Ability
1000 Set /Month
Product Description

250L/Hr RO Water Plant Equipment For Commercial Drinking System



Function of each part of water treatment plant


1. feed water pump pump-- provide the pressure to quartz sand filter/active carbon filter
2. Multi-medium filter-- get rid of turbidity, suspended matter, organic matter, colloid, ect.
3. Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect.
4. Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.
5. Security filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um
6. High pressure pump-- Provide the high pressure to RO membrane
7. RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions
8. UV sterilizer or ozone generator--- kill bacteria

specification



Configuration list
Configuration Material SPEC Brand
Tank FRP /SS 844/725/1065etc Domestic/Pentair etc.
Value / Auto/Manual Domestic/Pentair etc
Filter quartz sand 20-80 mesh Domestic
  Active Carbon 600-1100Mg/g Domestic
  Resin / Domestic PUROLITE,Rohm Hass
Ro membrance Cellulose acetate membrane,element 1812/2521/2540,4040/8040 etc.. VONTRON/DOW,HYDRANAUTIC/Dongli
Controlling System / PLC ,Maunal,Electric control Domestic,Siemens
Pipe/Value Upvc/ss304/ss316 DN15-DN150 Domestic
Pump SS/Iron/Copper   CNP,Grundfos
Optional Customize the design according to the customer's URS
Application Drinking, cleaning, beverage, industrial and mining enterprises and so on.



Performance and advantages
1.  continuous operation, product water quality is stable.


2.  without the use of acid and base regeneration.


3.  save the recoil and cleaning water.


4.  to produce ultra-pure water with high yield (yield up to 95%).


5.  safe and reliable use.


6. reduce operation and maintenance costs.



7. simple installation, simple operation.



STABLE PERFORMANCE
1.Can run and produce water continuously, highly automatic
2.No need chemical to regeneration,easy operation and maintainance
3.RO system uses first-line membrane
4.Automatic switch on when lack of water,and switch off when no water or full of water
5.RO membrane auto wash and reduce the pollution speed.
6.Low-pressure switch protects high-pressure pump from damage cause by water supply stops.
7.Production water condutivity meter monitors water quality online contionuosly.
8.Input water and dense water pressure meters, monitor the RO differential pressure and remind the time of washing.

Pictures

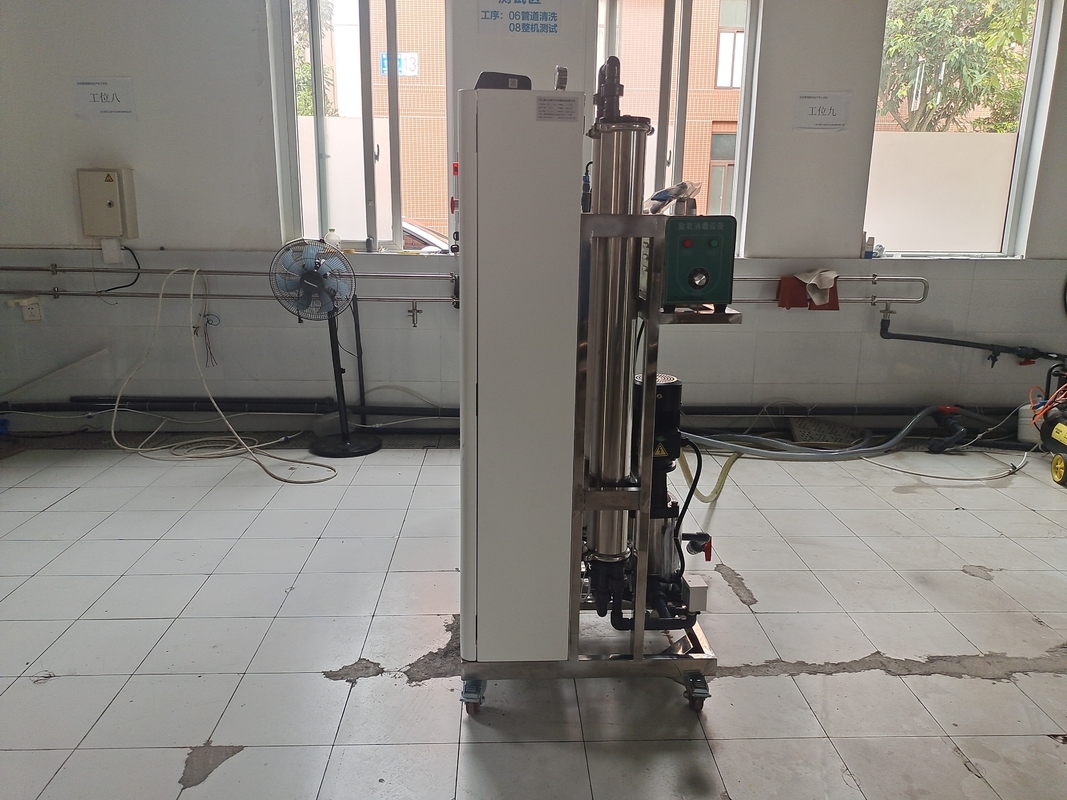

250L/H Ro Water Plant Machine For Commercial Drinking System 0

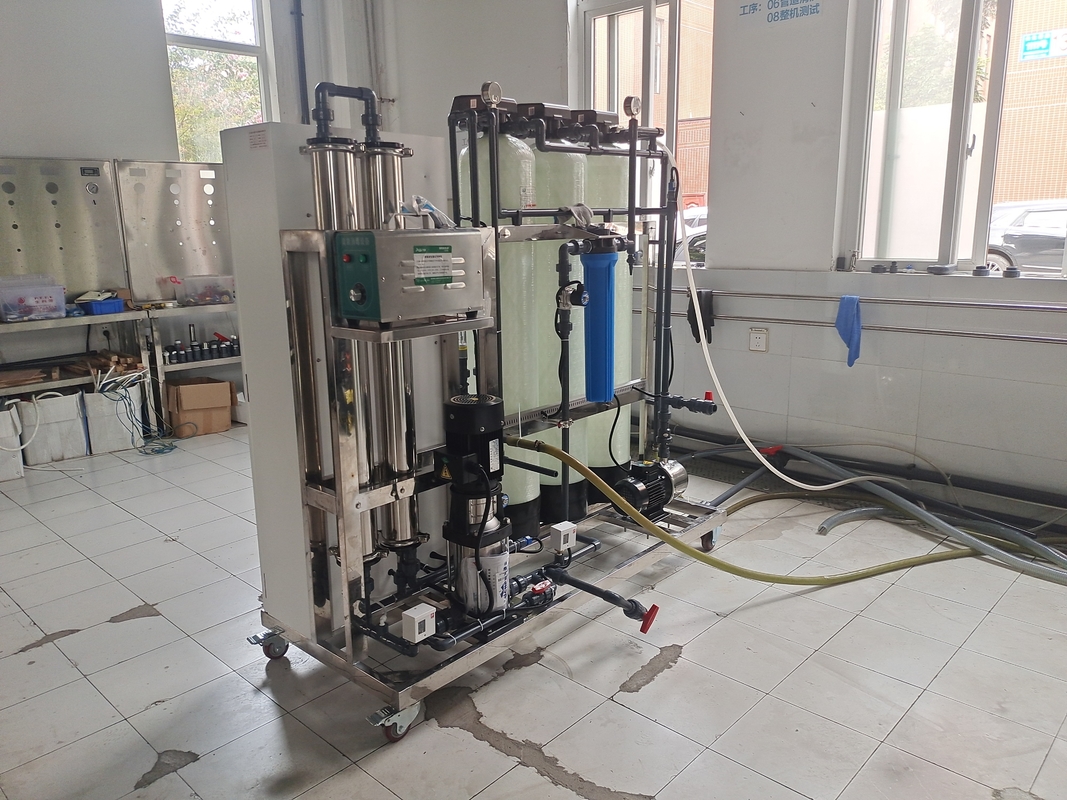

250L/H Ro Water Plant Machine For Commercial Drinking System 1

250L/H Ro Water Plant Machine For Commercial Drinking System 2
