Place of Origin:
China
Brand Name:
LEADER-T /OEM
Certification:
CE/ISO
Model Number:
LD-RO400LPH
Contact Us
400L Ro Water Drinking SystemSingle Pass RO System
specification
| Configuration list | ||||
| Configuration | Material | SPEC | Brand | |
| Tank | FRP /SS | 844/725/1065etc | Domestic/Pentair etc. | |
| Value | / | Auto/Manual | Domestic/Pentair etc | |
| Filter | quartz sand | 20-80 mesh | Domestic | |
| Active Carbon | 600-1100Mg/g | Domestic | ||
| Resin | / | Domestic PUROLITE,Rohm Hass | ||
| Ro membrance | Cellulose acetate membrane,element | 1812/2521/2540,4040/8040 etc.. | VONTRON/DOW,HYDRANAUTIC/Dongli | |
| Controlling System | / | PLC ,Maunal,Electric control | Domestic,Siemens | |
| Pipe/Value | Upvc/ss304/ss316 | DN15-DN150 | Domestic | |
| Pump | SS/Iron/Copper | CNP,Grundfos | ||
| Optional | Customize the design according to the customer's URS | |||
| Application | Drinking, cleaning, beverage, industrial and mining enterprises and so on. | |||
Flow chart
Raw water→ 1. Booster pump→ 2. Sand(multi-medium) filter→3. Active carbon filter→4. Softener (optional)→ 5. Security(micron) filter→6. High pressure pump→7. Reverse osmosis system→ 8. UV sterilizer (ozone generator) →Pure water storage tank
Working principle editing
Reverse osmosis is the most sophisticated liquid membrane separation technology, operating pressure against the side of water (concentrated solution) in order to overcome natural osmotic pressure, when higher osmotic pressure naturally operating pressure is imposed on thick natural seepage flow of water molecules in solution side direction will be reversed, the moisture in water (concentrated solution) radical become dilute solution by reverse osmosis membrane side of purified water production;Reverse osmosis equipment can stop all the soluble salt and organic molecular weight greater than 100, but allowing water molecules through the reverse osmosis composite membrane desalting rate is generally greater than 98%, they are widely used in industrial pure water preparation and electronic ultrapure water, drinking pure water production, such as boiler feed water process, using reverse osmosis equipment before ion exchange can sharply decreasing operation of water and wastewater emissions.

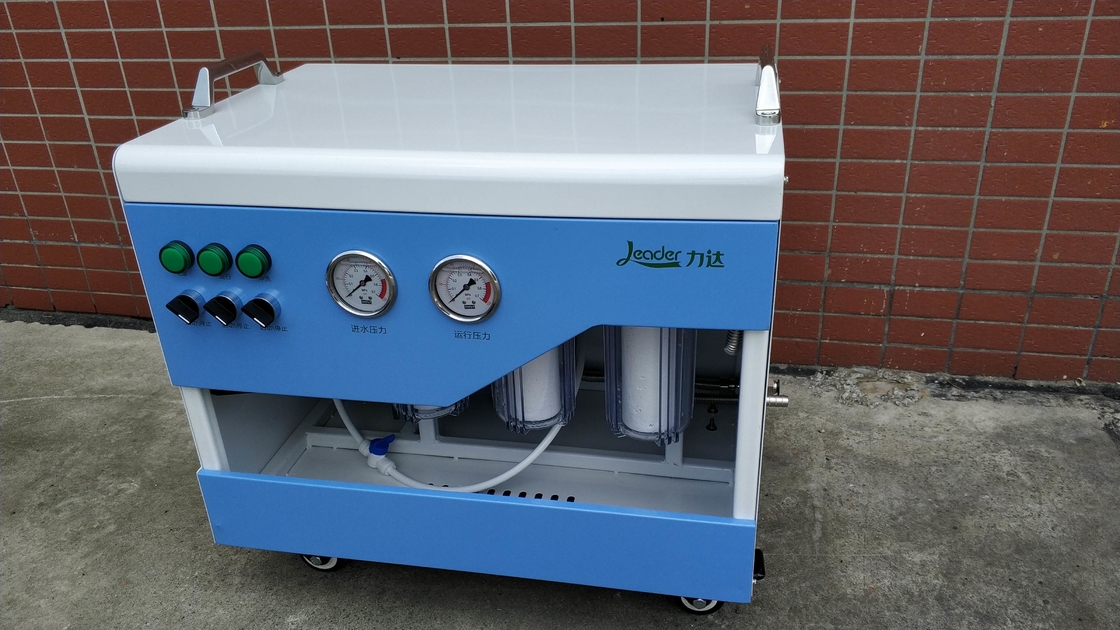

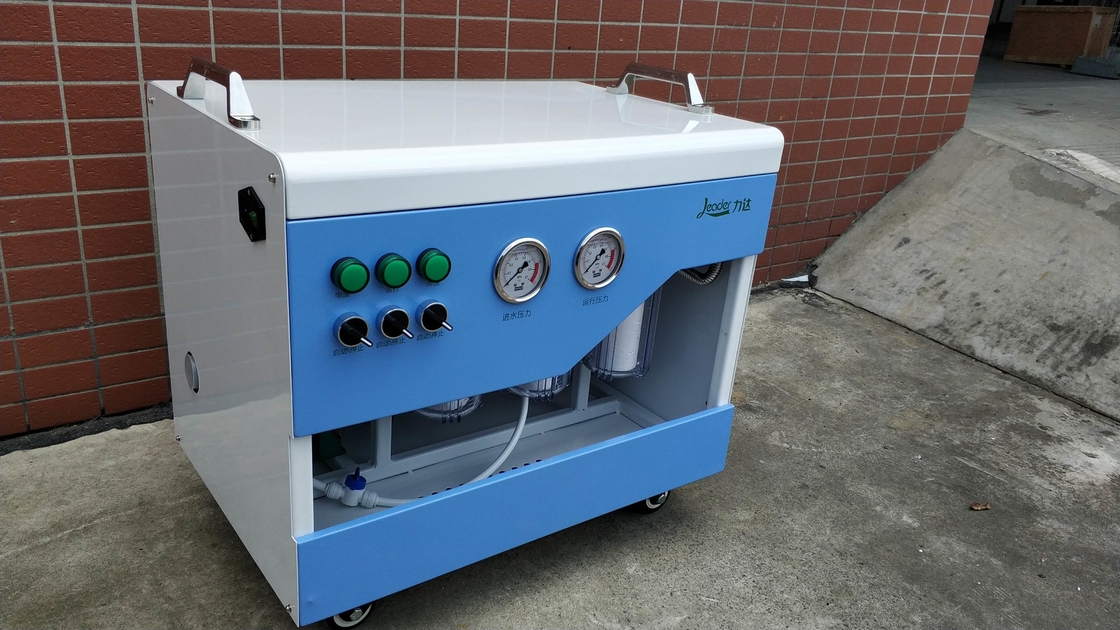

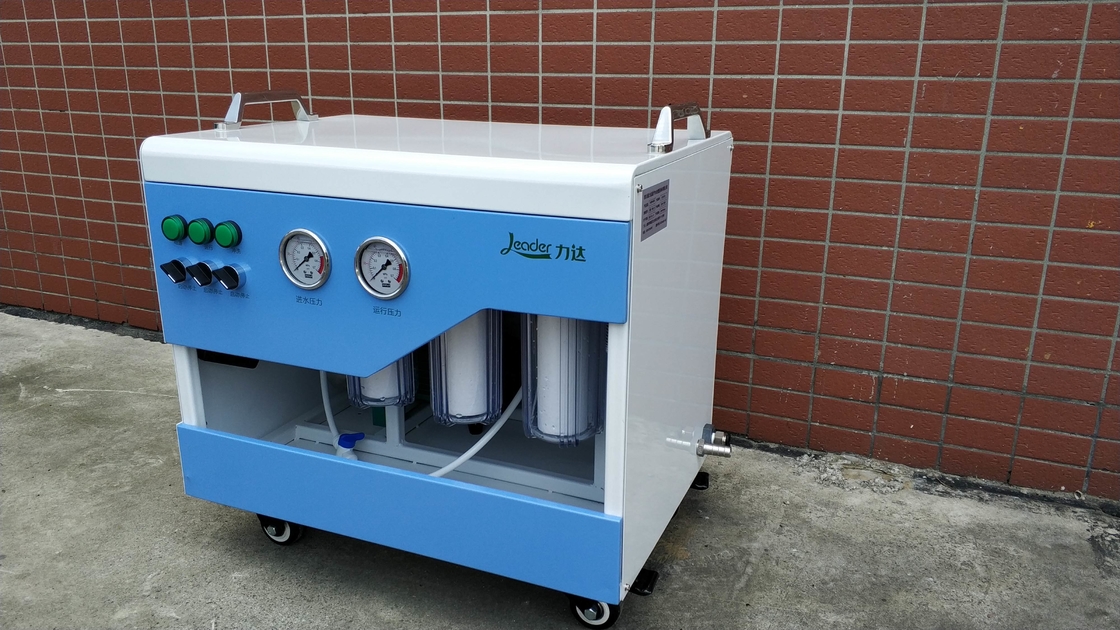

Pictures
