1TPH SUS304 Industrial Reverse Osmosis Equipment RO Water Filter Machine

200lph Customized Water RO System Single Pass RO System

Function of each part of water treatment plant

1. feed water pump pump-- provide the pressure to quartz sand filter/active carbon filter
2. Multi-medium filter-- get rid of turbidity, suspended matter, organic matter, colloid, ect.
3. Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect.
4. Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.
5. Security filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um
6. High pressure pump-- Provide the high pressure to RO membrane
7. RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions
8. UV sterilizer or ozone generator--- kill bacteria

specification

Main performance and features

1. TOC<100ppb
2. Conductivity <0.5us/cm
3. Microorganism<100CFU/ML
4. Endotoxin <0.25EU/ml
5. Nitrate<0.06ppm
6. Heavy metal <0.1ppm
l According to the water quality and customer’s requirements, the two stage RO or RO+EDI configurations are provided.
l Modular design, compact structure, convenient installation and operation
l Double-stage softener series operation, no spare equipment dead water risk.
l Multi-channel diaphragm valves replace multiple individual valves, reduce dead corners, facilitate emptying, reduce the amount of verification documents and reduce the number of welds.

Flow chart

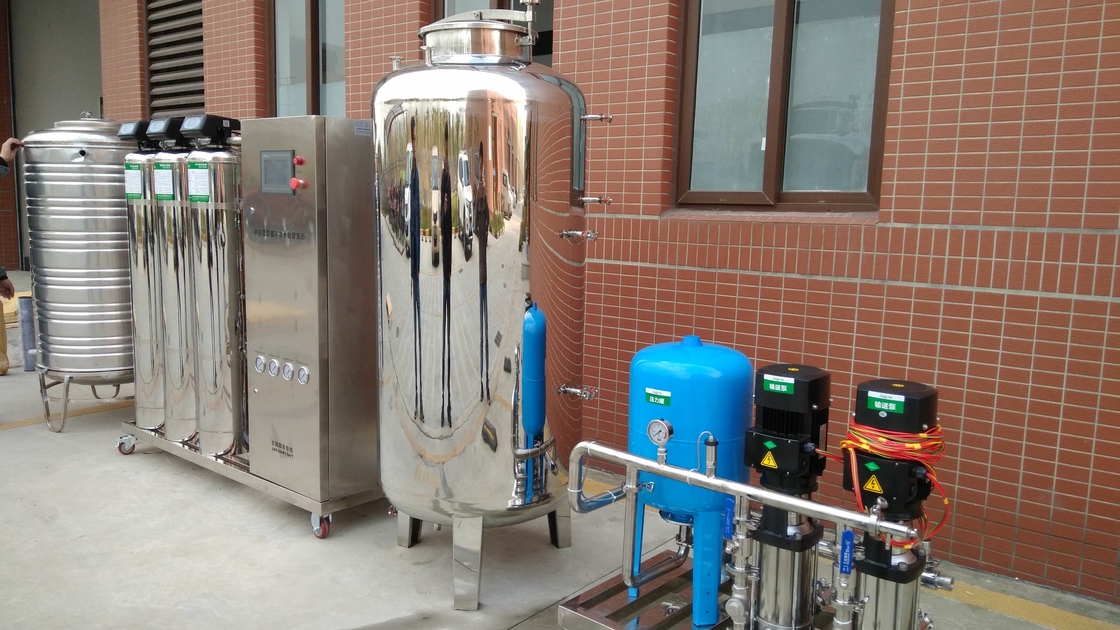

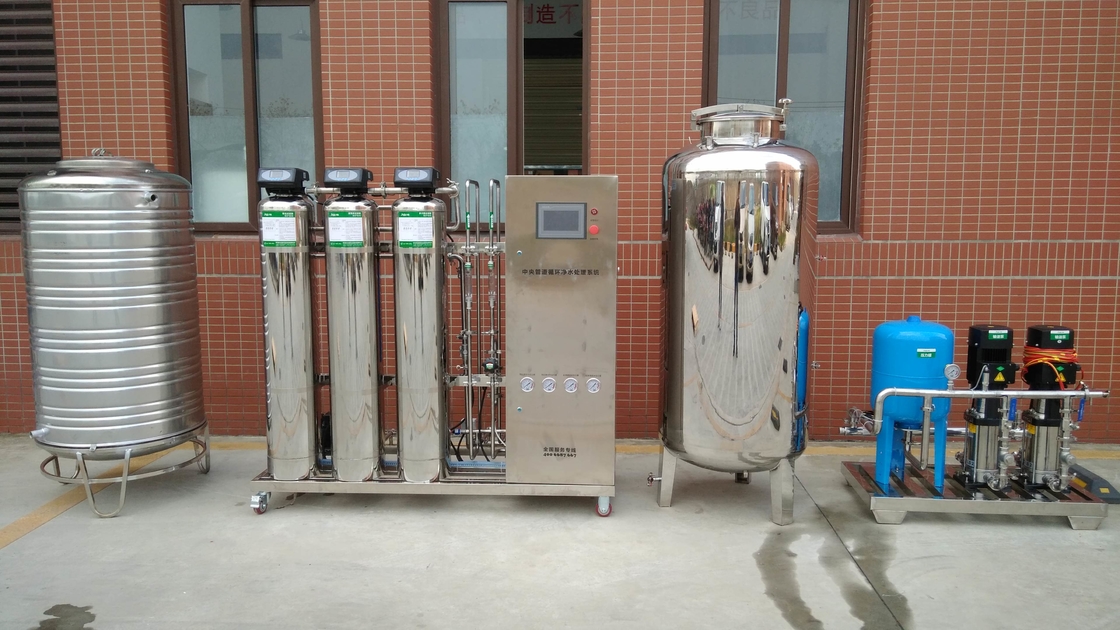

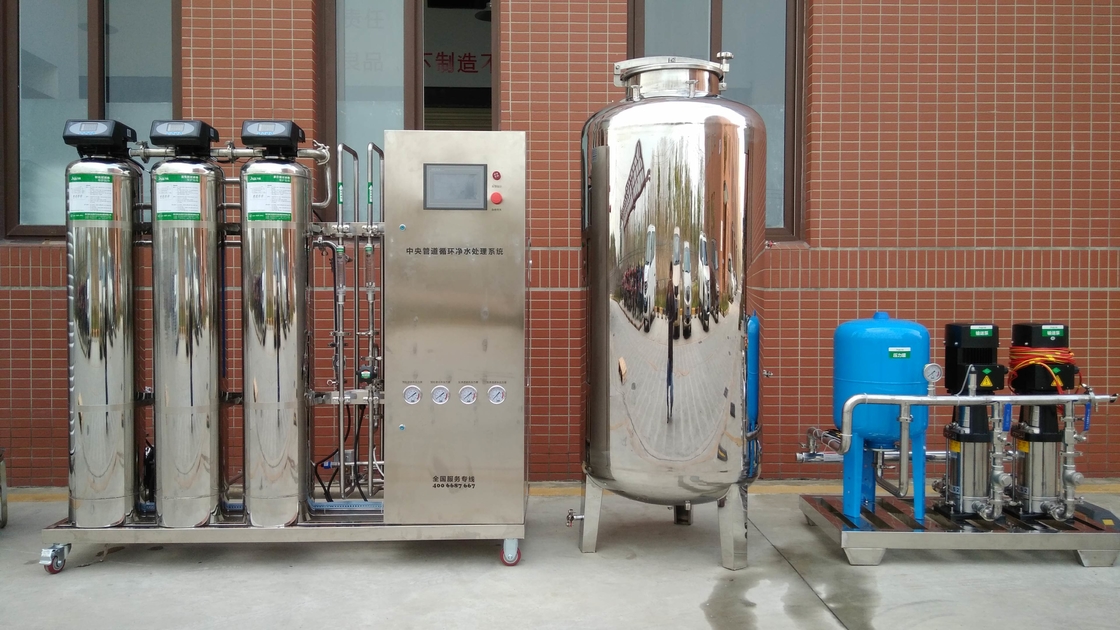

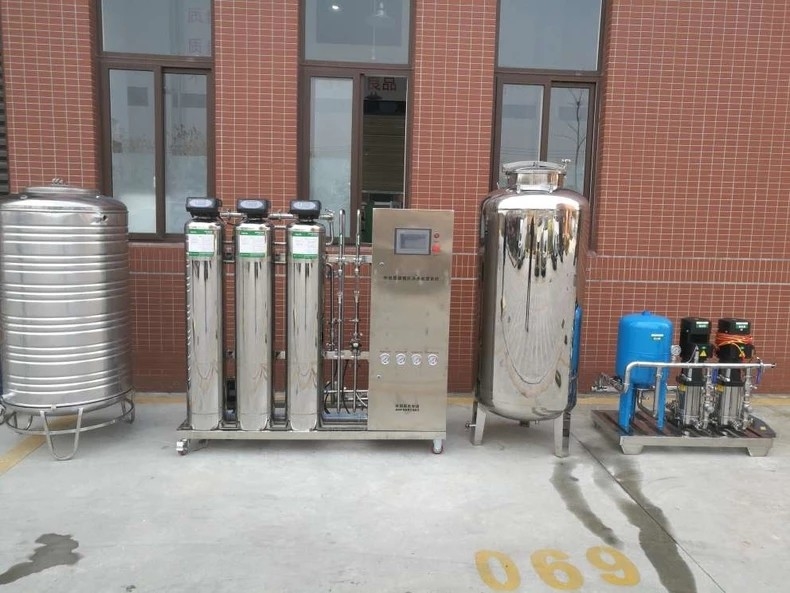

Pictures
