750lph Two Stage RO System RO Water Filtration System

750lph Two Stage RO System RO Water Filtration System

750lph Two Stage RO System

750lph double Stage RO System

750lph dual Stage RO System

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Name:
Reverse Osmosis Water Filtration System
Wooden Box
Core Components:
RO Membrane
After-sales Service:
Video Technical Support, Field Installation
CE,ISO9001,ISO 14001
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Packaging Details
Wooden/ Box
Delivery Time
7-15 Days
Payment Terms
L/C, T/T, Western Union
Supply Ability
1000 Set /Month
Product Description

750lph Two Stages Ro Water Filtration System Double Pass RO System




Configuration list
Configuration Material SPEC Brand
Tank FRP /SS 844/725/1065etc Domestic/Pentair etc.
Value / Auto/Manual Domestic/Pentair etc
Filter quartz sand 20-80 mesh Domestic
  Active Carbon 600-1100Mg/g Domestic
  Resin / Domestic PUROLITE,Rohm Hass
Ro membrance Cellulose acetate membrane,element 1812/2521/2540,4040/8040 etc.. VONTRON/DOW,HYDRANAUTIC/Dongli
Controlling System / PLC ,Maunal,Electric control Domestic,Siemens
Pipe/Value Upvc/ss304/ss316 DN15-DN150 Domestic
Pump SS/Iron/Copper   CNP,Grundfos
Optional Customize the design according to the customer's URS
Application Drinking, cleaning, beverage, industrial and mining enterprises and so on.


Introduction of reverse osmosis equipment

Reverse osmosis is to use enough pressure to make the solvent in the solution (usually refers to water) through the reverse osmosis membrane (or semi-permeable membrane) and separate out, so called reverse osmosis.Reverse osmosis, as an efficient desalination technology, can remove inorganic ions, bacteria, viruses, organic matter, colloid and other impurities in raw water, so as to obtain high quality pure water.According to the different osmotic pressure of various materials, the reverse osmosis method larger than osmotic pressure can be used to achieve the purpose of separation, extraction, purification and concentration.
Plant extract processing (fructus momordicae, ginkgo tree, acid-insoluble ash, tea polysaccharide, theanine and other effective ingredients extraction enrichment), using the reverse osmosis technology in at room temperature to operation, low energy consumption, which can effectively avoid rabbit high temperature condensed faults: extract a number of important flavor substances and nutrition will not damage, the product delicate aroma, color and taste;The content of active ingredients in the final product was significantly increased.Compared with the traditional, single evaporation and concentration method, the product quality and cost have been significantly improved.


Performance and advantages
1.  continuous operation, product water quality is stable.
2.  without the use of acid and base regeneration.
3.  save the recoil and cleaning water.
4.  to produce ultra-pure water with high yield (yield up to 95%).
5.  safe and reliable use.
6. reduce operation and maintenance costs.
7. simple installation, simple operation.


Flow chart

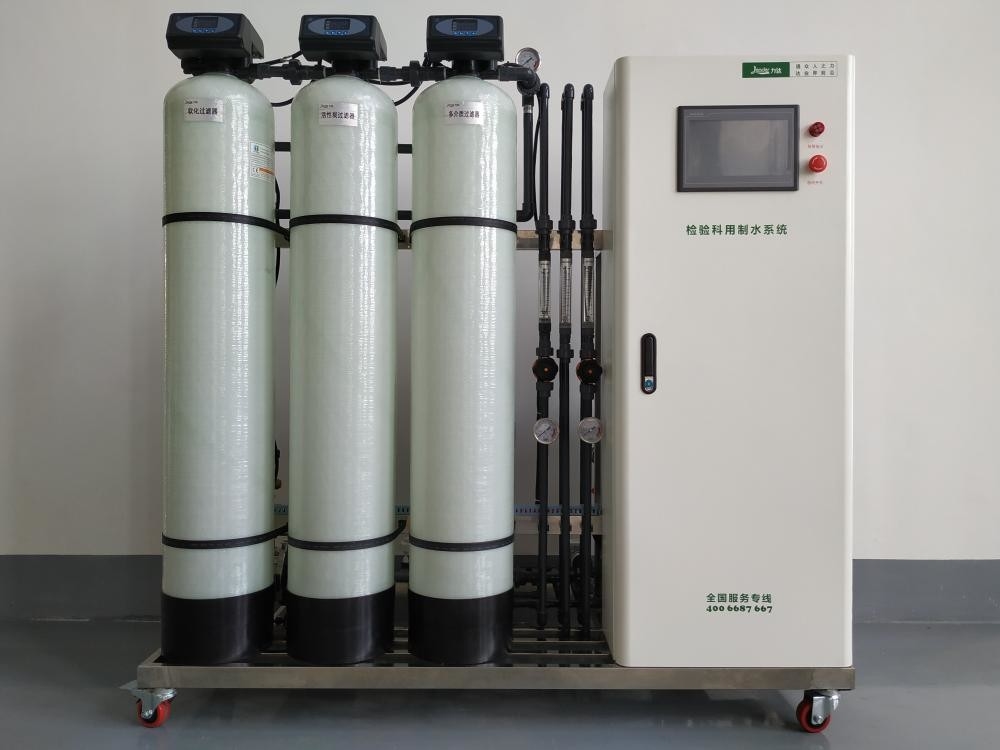

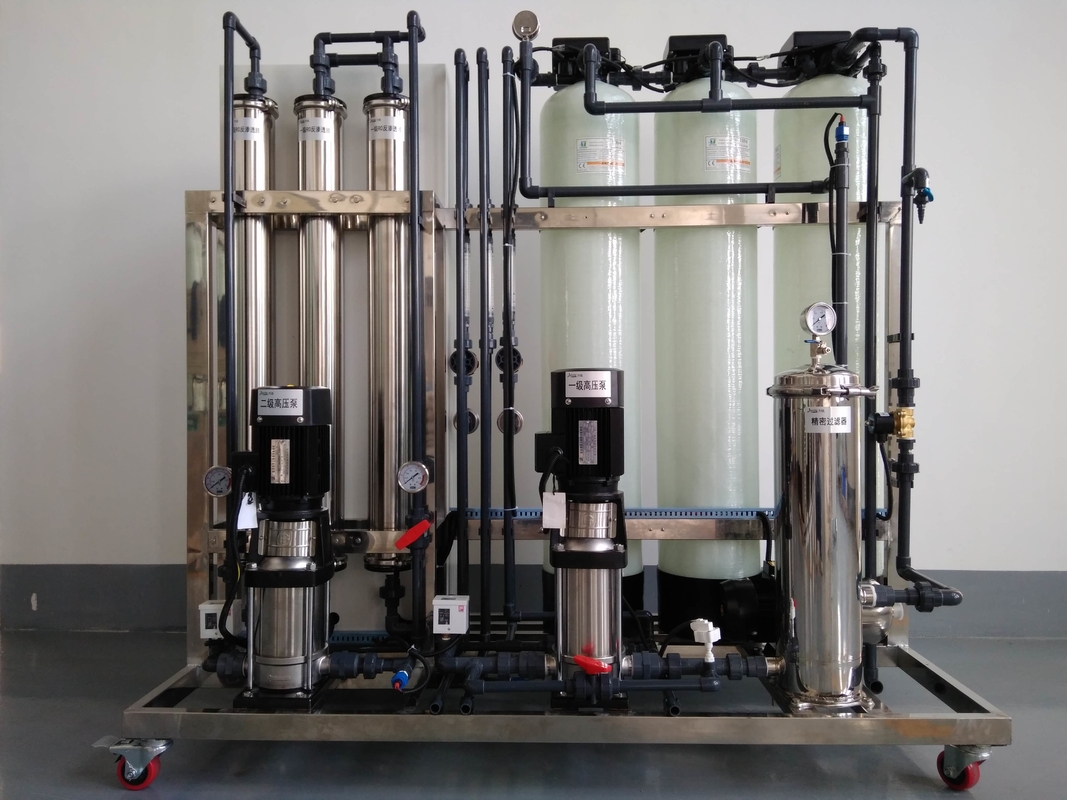

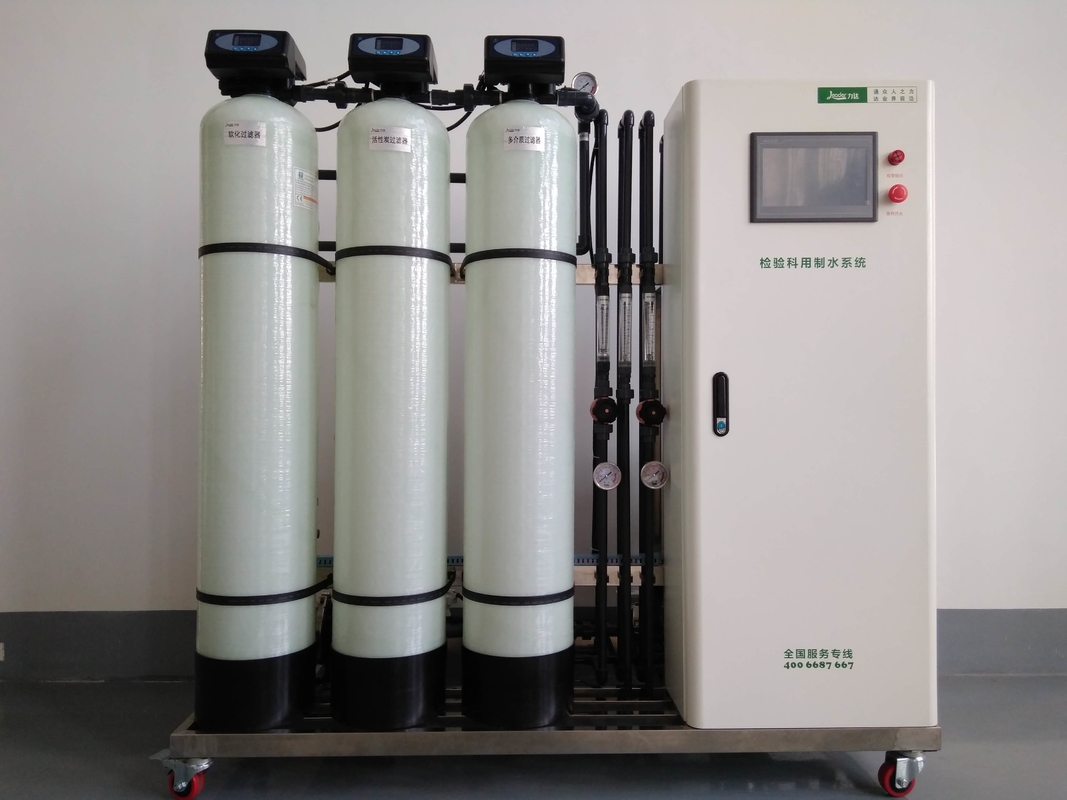

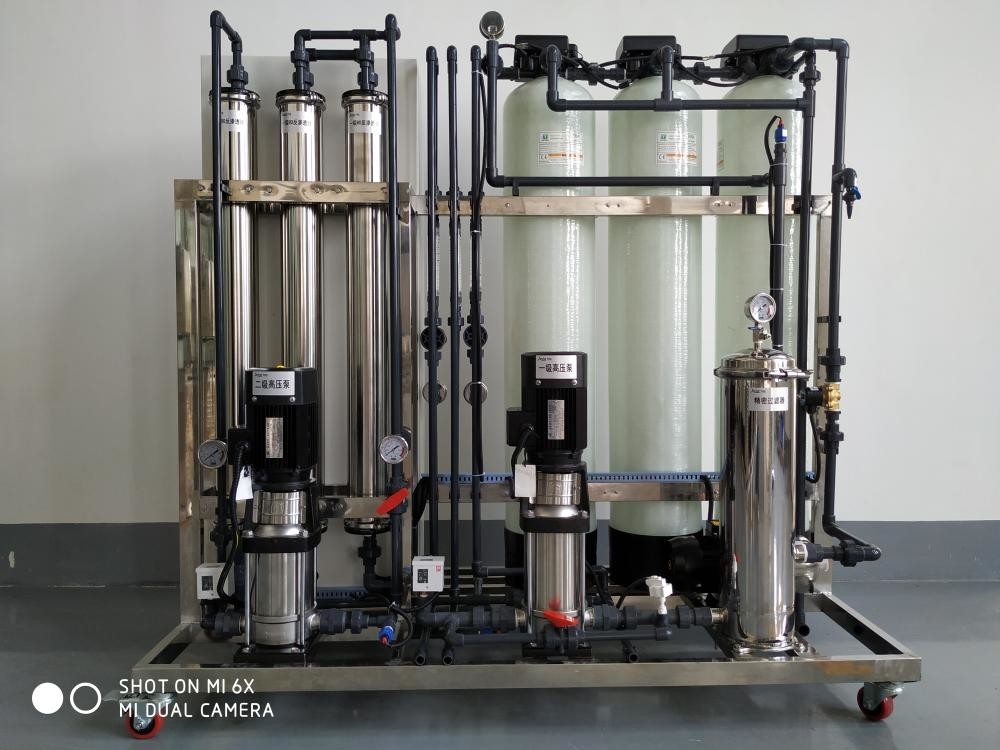

750lph Two Stage RO System RO Water Filtration System 0



750lph Two Stage RO System RO Water Filtration System 1

750lph Two Stage RO System RO Water Filtration System 2

750lph Two Stage RO System RO Water Filtration System 3
