30T Per Hour Reverse Osmosis Water Purification Machine Molecular Industrial Borehole

30T Per Hour Molecular Industrial Borehole Water Treatment Reverse Osmosis Machine Single Pass RO System

Reverse osmosis, also known as reverse osmosis, is a membrane separation operation in which the solvent is separated from the solution by the
pressure difference as the driving force.Pressure is applied to the material liquid on one side of the membrane. When the pressure exceeds its
osmotic pressure, the solvent will reverse osmotic against the direction of natural osmotic.Thus, the permeating solvent is obtained on the low-
pressure side of the membrane, namely the permeating solution.The concentrated solution is obtained at the high pressure side, namely the
concentrated solution.If seawater is treated by reverse osmosis, fresh water is obtained on the low pressure side of the membrane and brine is
obtained on the high pressure side.

Because it is opposite to the direction of natural infiltration, it is called reverse osmosis.According to the different osmotic pressure of various
materials, the reverse osmosis pressure greater than osmotic pressure, namely reverse osmosis method, can be used to achieve the purpose of
separation, extraction, purification and concentration.

specification


Working process :

1. Booster pump-- provide the pressure to quartz sand filter/active carbon filter.

2. Sand/Multi-medium filter-- get rid of turbidity, suspended matter, organic matter, colloid, ect.

3. Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect.

4. Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.

5. Micron PP filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um,

6. High pressure pump-- Provide the high pressure to RO membrane ro.

7.RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions.

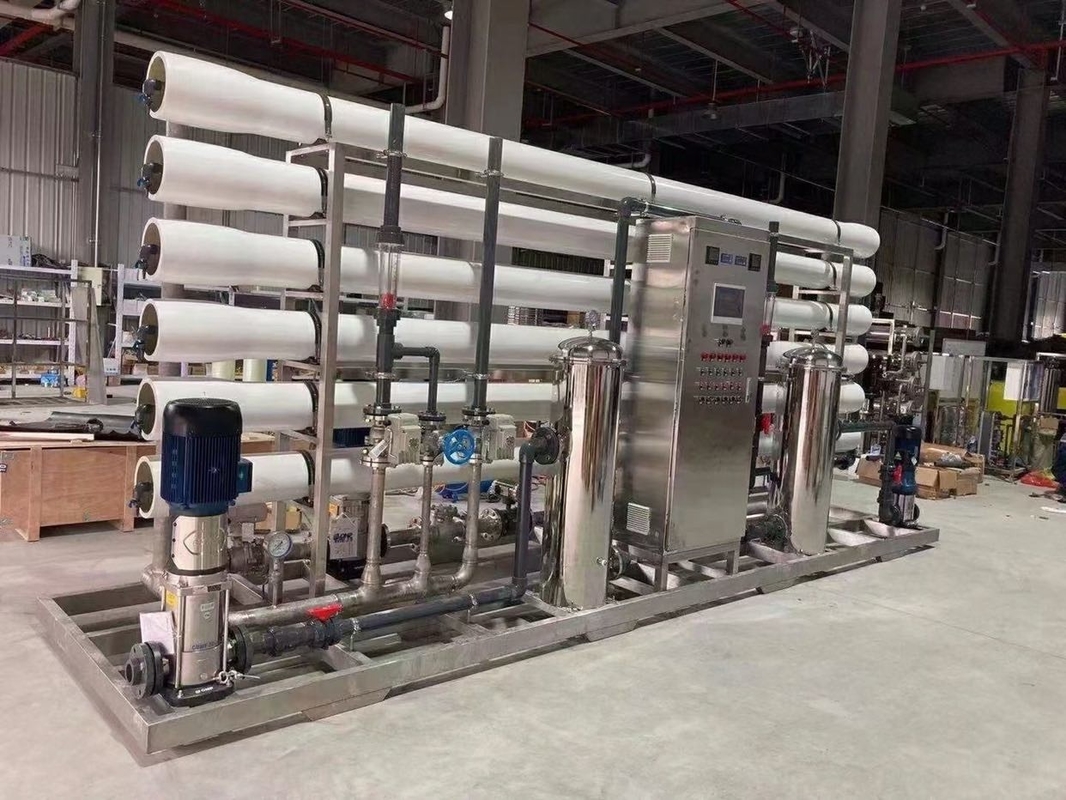

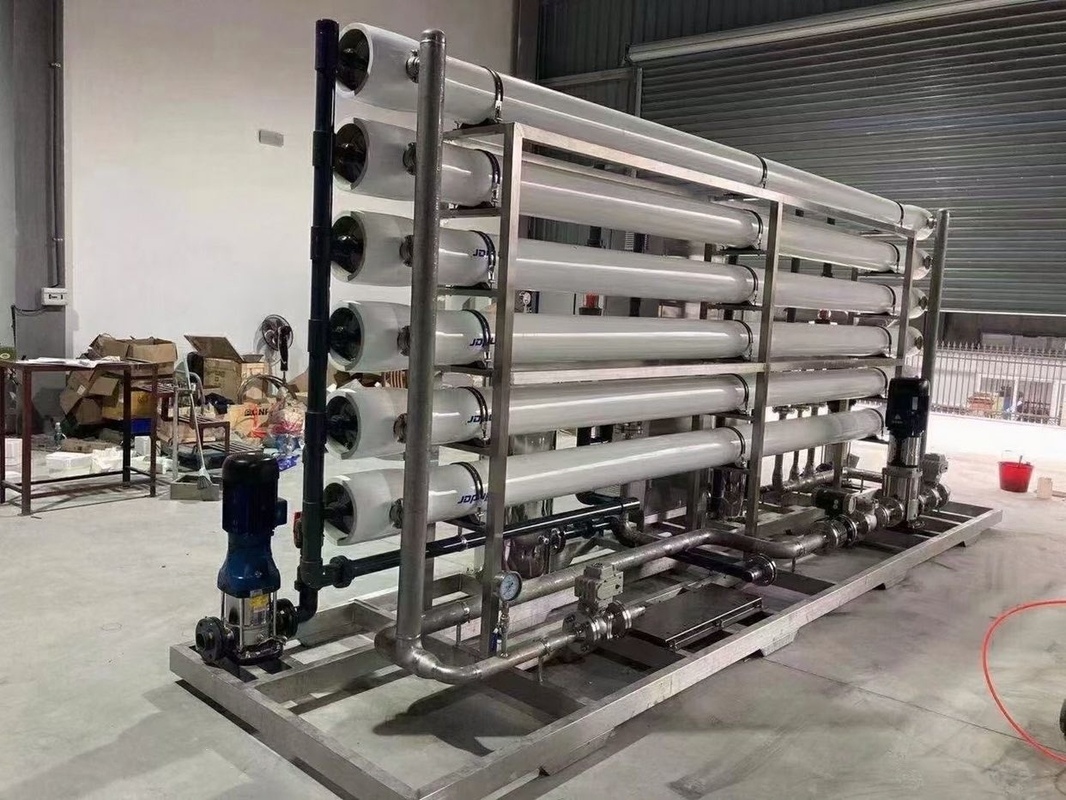

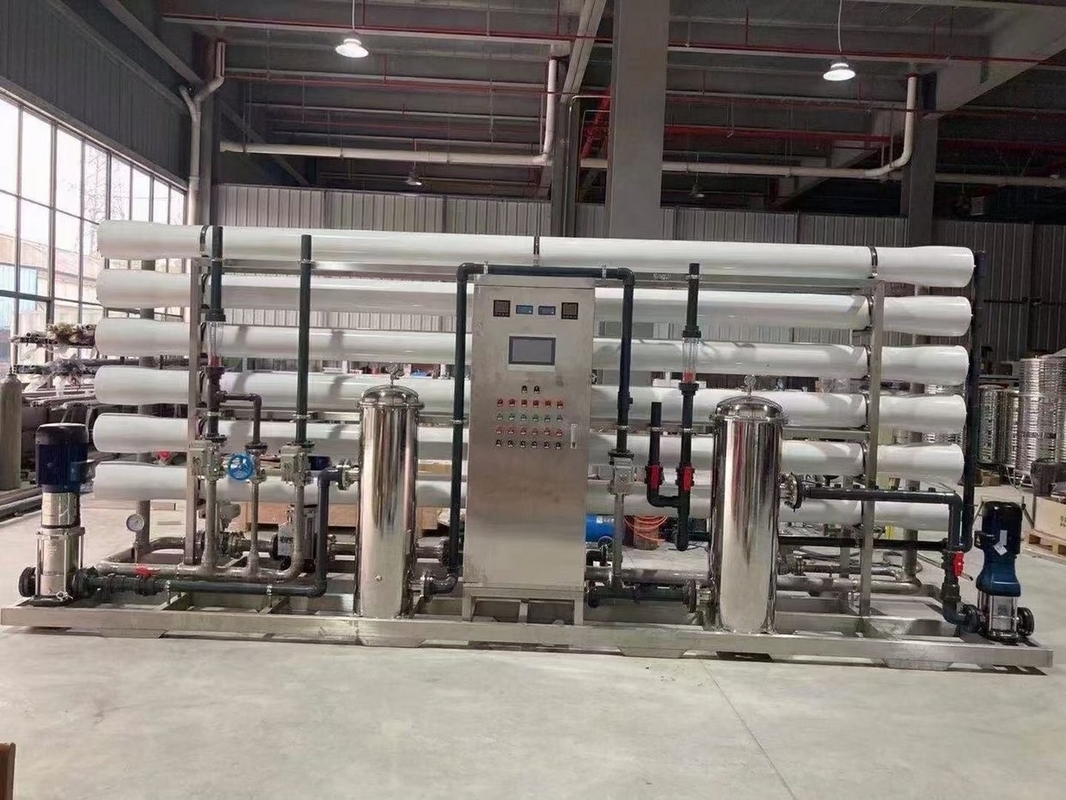

Pictures
