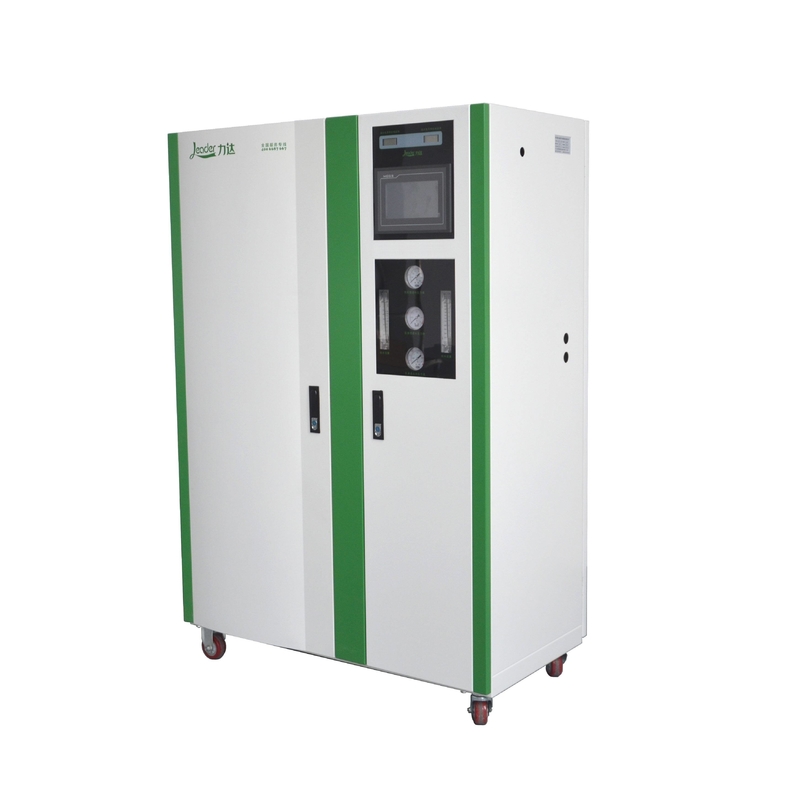

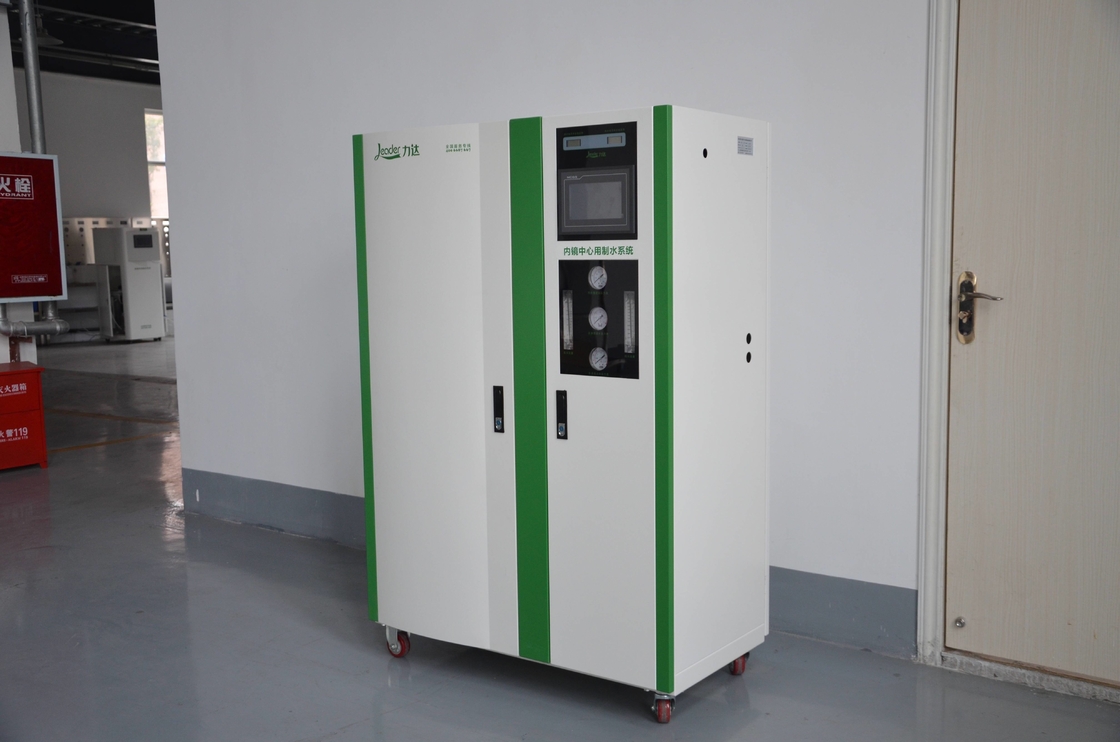

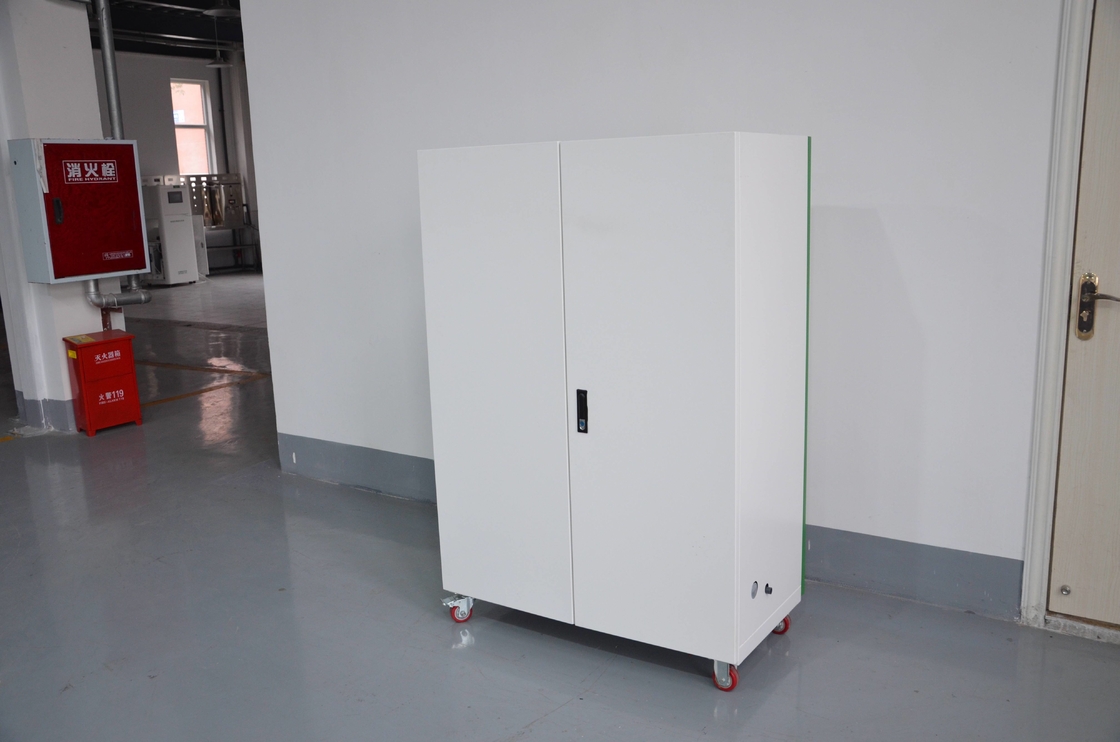

Home Drinking FRP Single Pass RO System 100 Ltr Per Hour Ro Plant

Home Drinking FRP Single Pass RO System 100 Ltr Per Hour Ro Plant

FRP Single Pass RO System

100 liter Single Pass RO System

SS304 100 Ltr Per Hour Ro Plant

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Name:
Single Pass RO System
Wooden Box
Core Components:
RO Membrane
After-sales Service:
Video Technical Support, Field Installation
CE,ISO9001,ISO 14001
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Packaging Details
Wooden/ Box
Delivery Time
7-15 Days
Payment Terms
L/C, T/T, Western Union
Supply Ability
1000 Set /Month
Product Description

100Liters Per Hour Ro Plant For Home Drinking Single Pass RO System​


1. Our company's RO reverse osmosis equipment adopts key components, equipment adopts International brand.
2. advanced technology, reliable quality, strong expandability, reasonable structure and small area.
3. high water utilization rate, low energy consumption, fully automated operation, simple operation and maintenance.
4. According to user requirements design and manufacture of reverse osmosis system.
5. The general production limit of 0.25m3/hr, the upper limit is not limited, the water recovery rate can reach more than 75%, salt rejection > 98%.
6. The amount of water produced varies with the temperature of the incoming water and the aging or contamination of the reverse osmosis membrane.

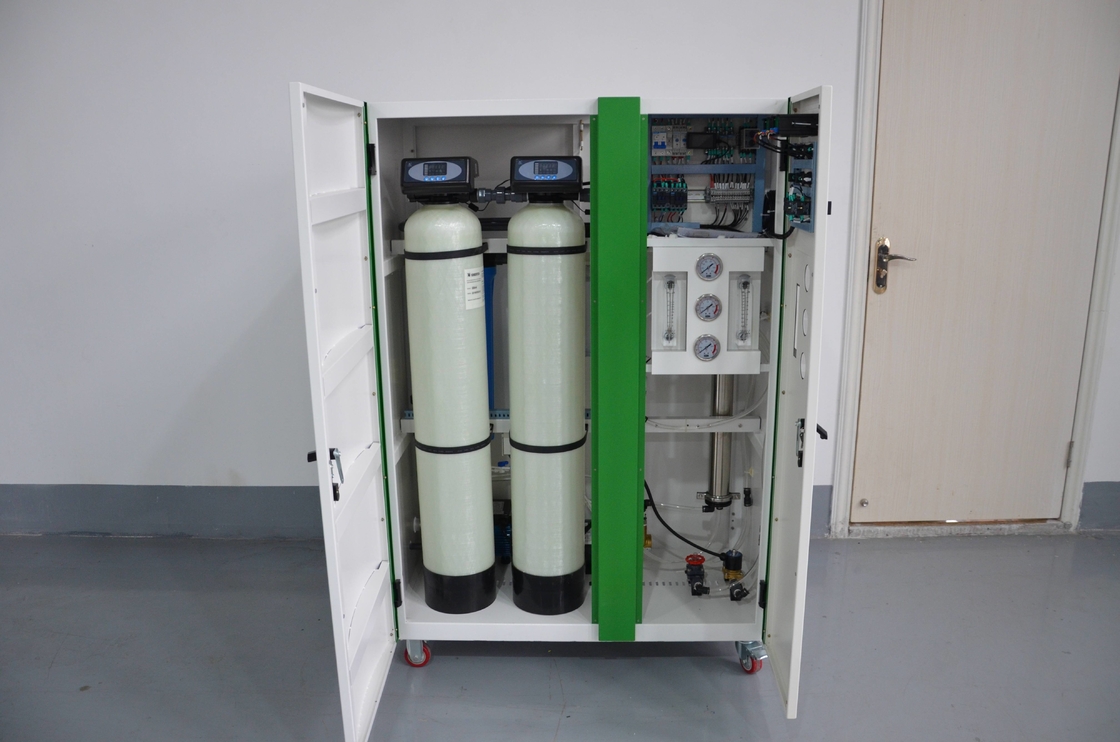

Configuration list
Configuration Material SPEC Brand
Tank FRP /SS 844/725/1065etc Domestic/Pentair etc.
Value / Auto/Manual Domestic/Pentair etc
Filter quartz sand 20-80 mesh Domestic
  Active Carbon 600-1100Mg/g Domestic
  Resin / Domestic PUROLITE,Rohm Hass
Ro membrance Cellulose acetate membrane,element 1812/2521/2540,4040/8040 etc.. VONTRON/DOW,HYDRANAUTIC/Dongli
Controlling System / PLC ,Maunal,Electric control Domestic,Siemens
Pipe/Value Upvc/ss304/ss316 DN15-DN150 Domestic
Pump SS/Iron/Copper   CNP,Grundfos
Optional Customize the design according to the customer's URS
Application Drinking, cleaning, beverage, industrial and mining enterprises and so on.

Reverse osmosis, also known as reverse osmosis, is a membrane separation operation in which the solvent is separated from the solution by the
pressure difference as the driving force.Pressure is applied to the material liquid on one side of the membrane. When the pressure exceeds its
osmotic pressure, the solvent will reverse osmotic against the direction of natural osmotic.Thus, the permeating solvent is obtained on the low-
pressure side of the membrane, namely the permeating solution.The concentrated solution is obtained at the high pressure side, namely the
concentrated solution.If seawater is treated by reverse osmosis, fresh water is obtained on the low pressure side of the membrane and brine is
obtained on the high pressure side.
Because it is opposite to the direction of natural infiltration, it is called reverse osmosis.According to the different osmotic pressure of various
materials, the reverse osmosis pressure greater than osmotic pressure, namely reverse osmosis method, can be used to achieve the purpose of
separation, extraction, purification and concentration
