Place of Origin:
China
Brand Name:
LEADER-T /OEM
Certification:
CE/ISO
Model Number:
LD-RO 200LPH
Contact Us

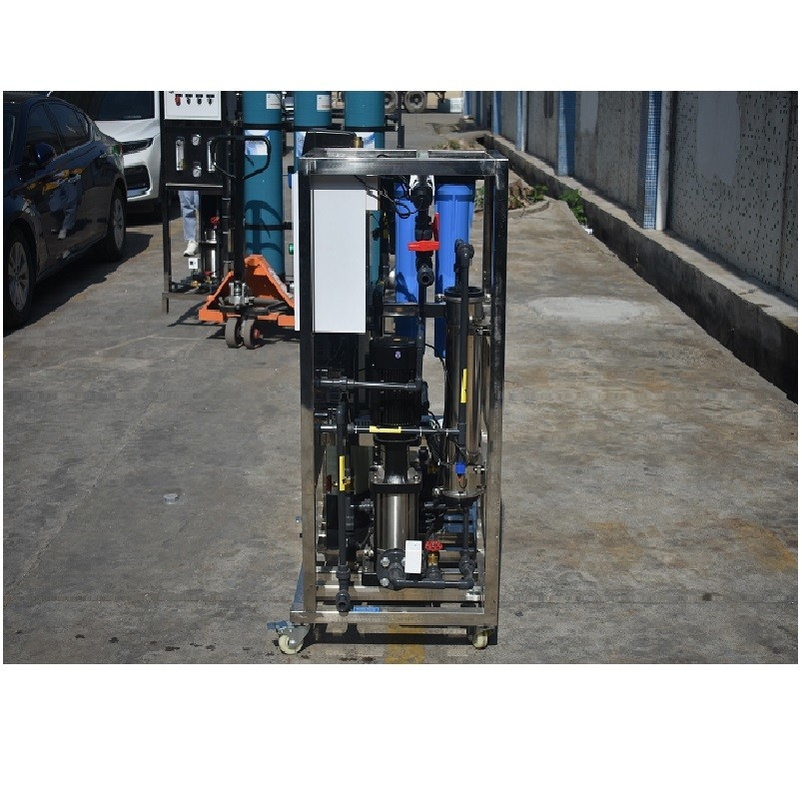

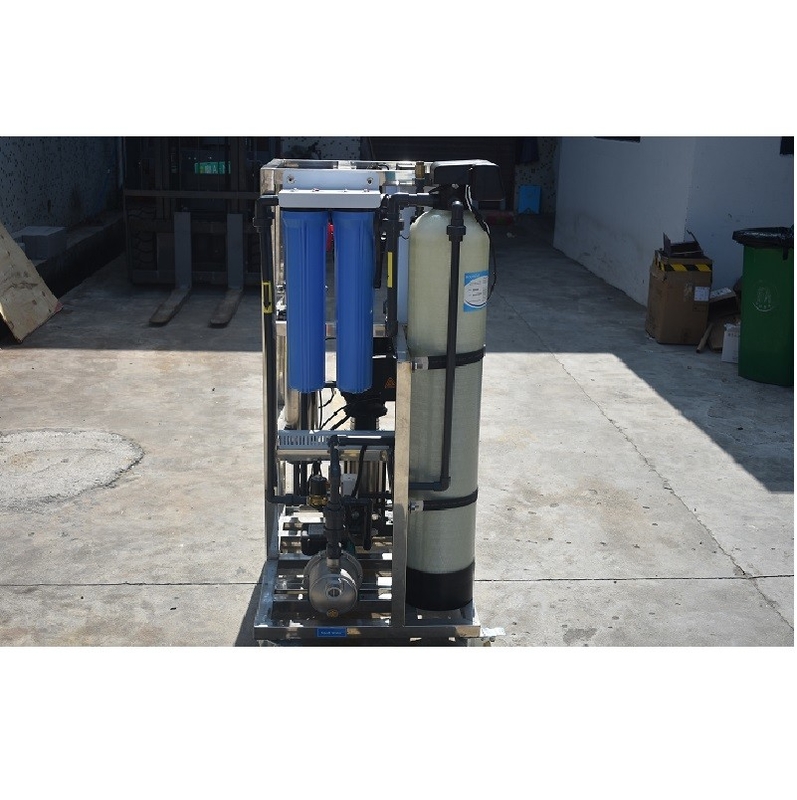

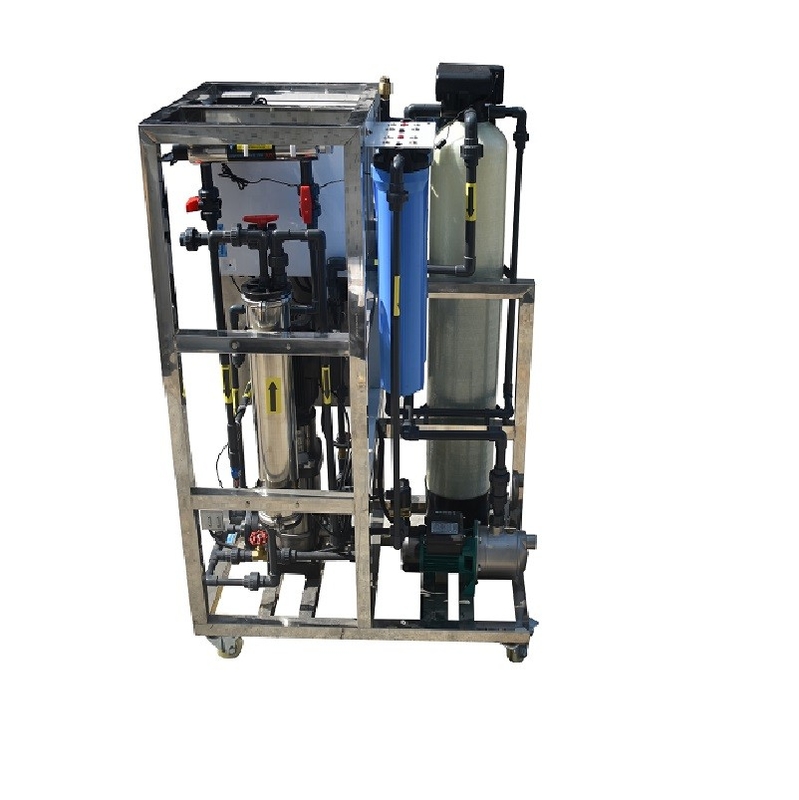

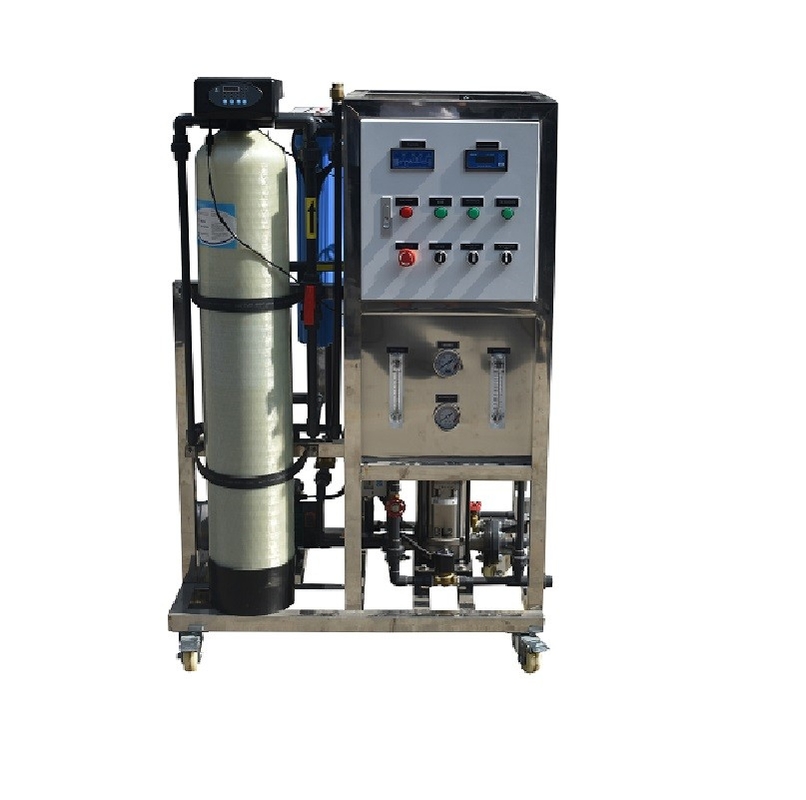

200LPH Whole House Reverse Osmosis Drinking Single Pass RO System
specification
| Configuration list | ||||
| Configuration | Material | SPEC | Brand | |
| Tank | FRP /SS | 844/725/1065etc | Domestic/Pentair etc. | |
| Value | / | Auto/Manual | Domestic/Pentair etc | |
| Filter | quartz sand | 20-80 mesh | Domestic | |
| Active Carbon | 600-1100Mg/g | Domestic | ||
| Resin | / | Domestic PUROLITE,Rohm Hass | ||
| Ro membrance | Cellulose acetate membrane,element | 1812/2521/2540,4040/8040 etc.. | VONTRON/DOW,HYDRANAUTIC/Dongli | |
| Controlling System | / | PLC ,Maunal,Electric control | Domestic,Siemens | |
| Pipe/Value | Upvc/ss304/ss316 | DN15-DN150 | Domestic | |
| Pump | SS/Iron/Copper | CNP,Grundfos | ||
| Optional | Customize the design according to the customer's URS | |||
| Application | Drinking, cleaning, beverage, industrial and mining enterprises and so on. | |||
Advantages:
1. Our company's RO reverse osmosis equipment adopts key components, equipment adopts International brand.
2. advanced technology, reliable quality, strong expandability, reasonable structure and small area.
3. high water utilization rate, low energy consumption, fully automated operation, simple operation and maintenance.
4. According to user requirements design and manufacture of reverse osmosis system.
5. The general production limit of 0.25m3/hr, the upper limit is not limited, the water recovery rate can reach more than 75%, salt rejection > 98%.
6. The amount of water produced varies with the temperature of the incoming water and the aging or contamination of the reverse osmosis membrane.
Function of each part of water treatment plant
1.Booster pump– provide the pressure to quartz sand filter/active carbon filter
2.Multi-medium filter– get rid of turbidity, suspended matter, organic matter, colloid, ect.
3.Active Carbon filter–Remove the color, free chloride, organic matter, harmful matter, ect.
4.Softener–exchange "ions" of calcium and magnesium with the most common and easiest method.
5.Security filter–prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um
6.High pressure pump– Provide the high pressure to RO membrane
7.RO system– main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions
8.UV sterilizer or ozone generator- kill bacteria
Pictures
