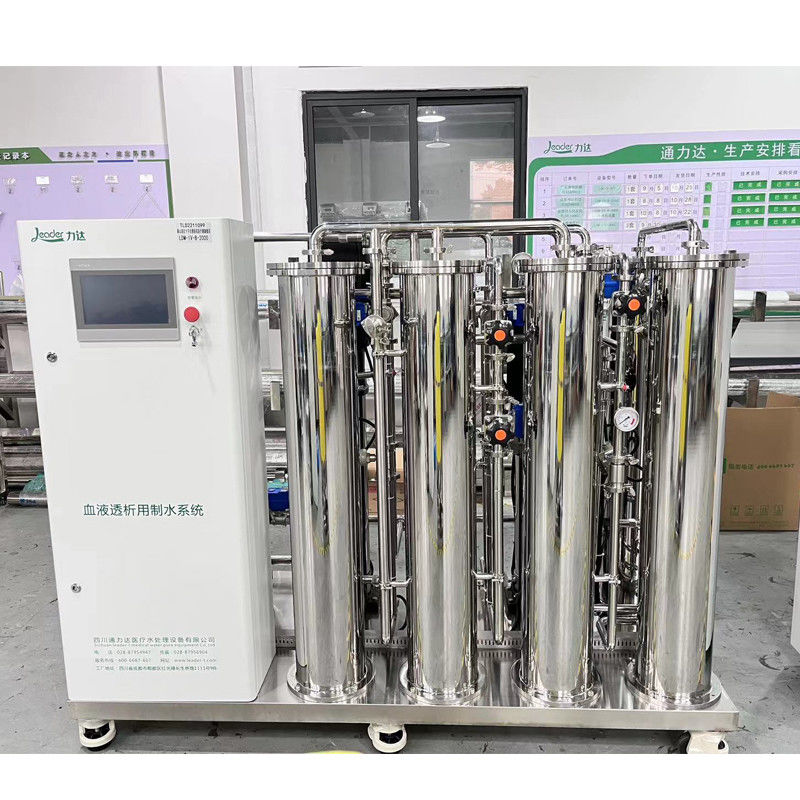

Name: Hemodialysis Water Treatment System with YY0572-2015 Compliance 380V/50Hz Power Supply and Stainless Steel Pipeline
Brand: Sichuan Leader-t Water Treatment Equipment Co., Ltd
SKU: LDM-D-300-3000L
Price: 7.40 USD
Availability: InStock

Home > Products > Hemodialysis Water Treatment System >

Hemodialysis Water Treatment System with YY0572-2015 Compliance 380V/50Hz Power Supply and Stainless Steel Pipeline

3000L/H Hemodialysis Water Treatment System

Reverse Osmosis Hemodialysis Water Treatment System

2500L/H Hemodialysis Water Treatment System

Place of Origin:

Chengdu, China

Brand Name:

Leader-t

Certification:

CE, ISO

Model Number:

LDM-D-300-3000L

Request A Quote

Product Details

Pump Brand:

Grundfos/ CNP

Executive Standard:

Manufacturing Standard

Optional Functions:

Thermal Disinfection Device, U-shaped Small Circulation, Without Dead Space, Integrated Mute Cabinet, U-type Small Circulation, Unit Without Dead Space, Online Monitoring Of Residual Chlorine

Flow Rate:

2500-3000 LPH

Quality Of Produced Water:

Conforms To The Requirements Of YY0572-2015 Water For Haemodialysis And Related Therapies

Support And Services:

Installation Guideline Support, Maintenance And Repair Services, Troubleshooting And Diagnostics, Software And Firmware Updates, Customer Support And Training, Warranty And Replacement Services

Power Supply:

380V/50Hz/ Customized

Technical Parameters:

Pressure Vessels, Control Panel, Occupied Area, Power Supply, Total Weight, Membrane Housing, Warranty, Membrane Brand, Flow Rate, Pump Brand

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Please send inquiry

Packaging Details

customized wooden case/shelf, strong paper box, shrink film, EPE foam

Delivery Time

35 days

Payment Terms

T/T,west union,L/C

Supply Ability

1000 sets/month

leadertwater@gmail.com

86-028-87956904

Contact Now

Product Description

Hemodialysis water treatment system

Purpose

For medical institutions to prepare water for multi-bed hemodialysis and related treatments;
The water involved includes: water for preparing dialysis concentrates, water for dialysis fluids (used in hemodialysis, hemodiafiltration, or hemofiltration), and water for dialyzer reprocessing.

Product Technical Specifications

Item	Specification Description
Product Name	Water making equipment for hemodialysis
System Water Production Capacity	300—6000L/H
Microorganism Content	Bacteria ≤100 CFU/mL, Endotoxin ≤0.25 EU/mL
System Recovery Rate	50-75% (adjustable)
Product Process	Composed of a multi-stage pre-treatment system, a two-stage reverse osmosis system, a disinfection system, a control system, and connecting pipelines.
Disinfection Method	Chemical disinfection, pipeline thermal disinfection (optional)
Equipment Power	Main unit: 7-13 kVA; Thermal disinfection device: 11-18 kVA
Operation Method	PLC + Intelligent display screen
Operation Mode	Automatic operation, Manual operation
Operating Weight	Approximately 2000-4000 Kg (including filters); Thermal disinfection device: approximately 100 Kg
Working Power Supply	AC 380V ±10% (three-phase five-wire system), Frequency: 50Hz ±1Hz
Site Requirements	Room area ≥ 20 m², with floor waterproofing treatment, a drainage pipe network, and no direct sunlight exposure.
Working Environment	Room temperature 5～40℃, Relative humidity ≤80%RH
Raw water requirements	Water supply volume must be at least twice the nominal treatment capacity, with a pressure of 0.15–0.5 MPa and a water temperature of 5–45 °C.
Working Pressure	1.0–1.5 MPa
Structural Material	304/316L stainless steel pipeline, FRP (Fiberglass Reinforced Plastic) storage tank, Medical-grade connector

Product Technical Standards

1. Product Water Quality Standards

YY0572-2015 "Water for Hemodialysis and Related Therapies"
American AAMI and ASAIO Water Quality Standards for Hemodialysis

2. Electrical Safety Standards

GB 9706.1-2020 Medical Electrical Equipment - Part 1: General Requirements for Basic Safety and Essential Performance
GB 9706.102—2021 Medical Electrical Equipment - Part 1-2: General Requirements for Basic Safety and Essential Performance - Collateral Standard: Electromagnetic Compatibility - Requirements and Tests

3. Product Quality Standards

YY/T 0793.1-2022 Preparation and Quality Management of Fluids for Hemodialysis and Related Therapies - Part 1: Water Treatment Equipment for Hemodialysis and Related Therapies
GB/T17219－1998 Safety Evaluation Standard for Drinking Water Distribution Equipment and Protective Materials
YY/T0316－2008 Application of Risk Management to Medical Devices
