1000 LPH Double Stage RO System Water Treatment Equipment For Hospital

1000 LPH Double Stage RO System Water Treatment Equipment For Hospital

1000LPH RO System Water Treatment Equipment

1000L/h Double Stage RO System

ISO9001 RO Water Treatment Equipment

Place of Origin:

China

Brand Name:

LEADER-T /OEM

Certification:

CE/ISO

Model Number:

LDM-II-B-1000

Contact Us

Request A Quote
Product Details
Product Name:
Double Stage RO System Water Plant
Output:
1000LPH
Process:
Media Filter, AC Filter, Water Softener, Security Filter,Two Stage RO System
Warranty:
12 Monthes
Packing:
Wooden Box
After-sales Service:
Video Technical Support, Field Installation
Certification:
CE,ISO9001,ISO 14001
Operation:
Manual And Automatic Operation
Optiaonal:
Water Tank, Transmission Device
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
Wooden/ Box
Delivery Time
7-15 Days
Payment Terms
L/C, T/T, Western Union
Supply Ability
1000 Set /Month
Product Description

1000 LPH Double Stage RO System Water Treatment Equipment For Hospital

The working principle of reverse osmosis technology is to use semi permeable membrane to separate pure water and solute containing solution. The semi permeable membrane can only pass through water. The water on the pure water side spontaneously enters the solution side through the semi permeable membrane, and the water surface on the solution side rises. This phenomenon is called osmosis. When the liquid level rises to a certain height, the pressure on both sides of the membrane reaches equilibrium, and the liquid level on one side of the solution no longer rises. At this time, there will be a pressure difference on both sides of the membrane, which is called osmotic pressure. If a pressure greater than the osmotic pressure is applied to one side of the solution, the water molecules in the solution will be squeezed to the pure water side. This process is the opposite of osmosis and is called reverse osmosis.


specification:



Productivity:1000L/h

Raw water pressure:0.15mpa~0.5mpa

Size:165*70*168cm

iMinimum installation area: 15 ㎡

installation environment:No direct sunlight and less dust

Diameter of raw wter inlet pipe:>DN50

applicable raw water:municipal tap water



Raw water:

1000 LPH Double Stage RO System Water Treatment Equipment For Hospital 0

Process:



Raw water— raw water pump —quartz sand filter — active carbon filter — soften filter — cartridge filter — sotten water tank

— one-stage high-pressure pump — RO membrane —two-stage high-pressure pump— RO membrane — pure water tank

—converter—water point.

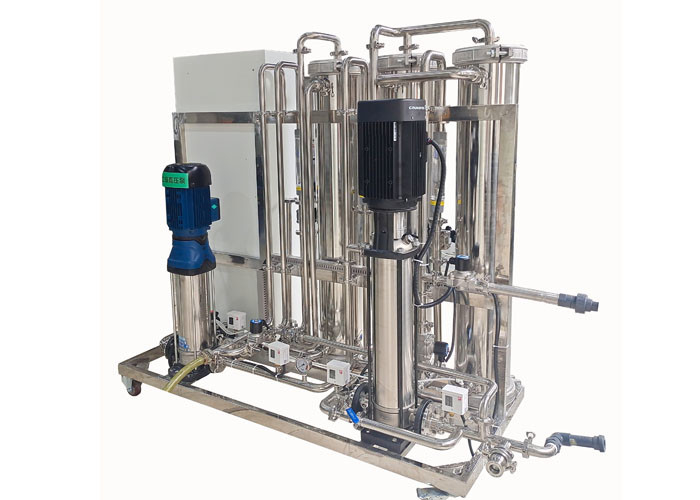

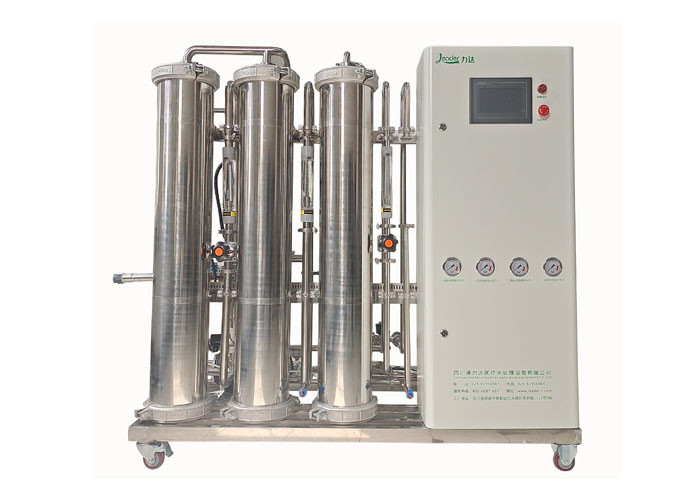

Detail Pictures:



 1000 LPH Double Stage RO System Water Treatment Equipment For Hospital 1



  1000 LPH Double Stage RO System Water Treatment Equipment For Hospital 2



  1000 LPH Double Stage RO System Water Treatment Equipment For Hospital 3
