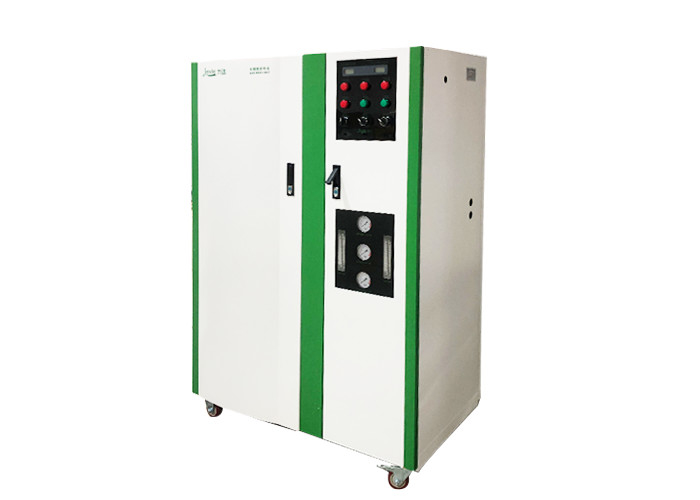

Disinfection Center Cabinet Single Pass RO System PLC Controlled 500LPH

Disinfection Center Cabinet Single Pass RO System PLC Controlled 500LPH

PLC Single Pass RO System

Single Pass RO System 500LPH

Disinfection Center Cabinet Reverse Osmosis System​

Place of Origin:

China

Brand Name:

LEADER-T /OEM

Certification:

CE/ISO

Model Number:

LD-RO-500LPH

Contact Us

Request A Quote
Product Details
Product Name:
Disinfection Center Cabinet Water Treatment Reverse Osmosis Machine Single Pass RO System
Type:
Cabinet Type
Productivity:
500 Liter Per Hour
Power:
2.0KW
Packing:
Wooden Box
After-sales Service:
Video Technical Support, Field Installation
Certification:
CE,ISO9001,ISO 14001, ISO13485
Operation:
Automatic Operation
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
Wooden/ Box
Delivery Time
10-15 Days
Payment Terms
L/C, T/T, Western Union
Supply Ability
1000 Set /Month
Product Description

500LPH Disinfection Center Cabinet Single Pass Reverse Osmosis System​





This cabinet single pass reverse osmosis system could be used in the disinfection center of hospital,  adopts cabinet design, integrated pretreatment, RO function in a cabinet, only take up a small area and it's with beautiful apperanace.Anyway, it's easy to move;



Reverse osmosis (RO) is a water purification process system. It uses partial osmosis membrane to separate ions, unwanted molecules and large particles from drinking water.


Specification



Model LDM-III-A-300 LDM-III-A-500 LDM-III-A-1000
productivity 300L/H 500L/H 1000L/H
produced water conductivity

≤15us/cm

≤15us/cm

≤15us/cm

Power 2.0KW 2.0KW 2.5KW
Applicable original water pressure 0.1-0.5mpa 0.1-0.5mpa 0.1-0.5mpa
Supply water pressure 0.2-0.3mpa 0.2-0.3mpa 0.2-0.3m




Working process :

 Disinfection Center Cabinet Single Pass RO System PLC Controlled 500LPH 0



Features:

1. The desalination rate is during 98%-99%;
2. The recovery of water is 75%;
3. PLC control automatic flushing function.
4. Low operating cost and long life span.

5.The system has a compact structure, a small footprint, and effectively saves space


Pictures



Pressure gauge

Disinfection Center Cabinet Single Pass RO System PLC Controlled 500LPH 1



LCD

Disinfection Center Cabinet Single Pass RO System PLC Controlled 500LPH 2



warehouse
Disinfection Center Cabinet Single Pass RO System PLC Controlled 500LPH 3



package

Disinfection Center Cabinet Single Pass RO System PLC Controlled 500LPH 4

Disinfection Center Cabinet Single Pass RO System PLC Controlled 500LPH 5
