Place of Origin:
China
Brand Name:
Leader-t/OEM
Certification:
CE/ISO
Model Number:
LD-ST-2TPH
Contact Us
Reverse Osmosis Water Softener System RO Water Softerner System
Definition:
1. Automatic sodium ion exchanger uses ion exchange principle to remove calcium, magnesium and other scaling ions in water.When the raw water containing hardness ions through the resin layer in the exchange, the calcium and magnesium ions in the water and the resin adsorption of sodium ions replacement, resin adsorption of calcium and magnesium ions and sodium ions into the water, so from the exchange out of the water is to remove the hardness of the softening water.
2. Because the hardness of water is mainly formed and expressed by calcium and magnesium, cation exchange resin (water softener) is generally used to replace the Ca2+ and Mg2+(the main component of scale formation) in the water. With the increase of Ca2+ and Mg2+ in the resin, the efficiency of removing Ca2+ and Mg2+ in the resin is gradually reduced.
3. When the resin absorbs a certain amount of calcium and magnesium ions, it must be regenerated. The regeneration process is to wash the resin layer with salt water in the salt box, and the hardness ions on the resin are replaced. With the regeneration waste liquid discharged from the tank, the resin resumes its softening and exchange function.
4. Because the hardness of water is mainly formed by calcium, magnesium and said that the hardness of water is mainly formed by calcium, magnesium and said that the principle of sodium ion exchange softening treatment is the raw water through the sodium type cation exchange resin, so that the hardness of Ca2+, Mg2+ in water and the resin Na+ exchange phase, so as to adsorb the water of Ca2+, Mg2+, so that the water is softened.
Softened water is water that does not contain or contains less soluble calcium and magnesium compounds. It has been widely used in European and American countries for more than 40 years. This equipment uses the principle of ion exchange to remove calcium and magnesium ions that are prone to scale formation, so as to soften water quality and avoid scaling.
Specification
Configuration list | |||
Configuration | Material | SPEC | Brand |
Tank | FRP /SS | 844/725/1065etc | Domestic/Pentair etc. |
Value | / | Auto/Manual | Domestic/Pentair etc |
Filter | quartz sand | 20-80 mesh | Domestic |
Active Carbon | 600-1100Mg/g | Domestic | |
Resin | Domestic PUROLITE,Rohm Hass | ||
Controlling System | / | PLC ,Maunal,Electric control | Domestic,Siemens |
Pipe/Value | Upvc/ss304/ss316 | DN15-DN150 | Domestic |
Pump | SS/Iron/Copper | CNP,Grundfos | |
Optional | Customize the design according to the customer's URS | ||
Application | Farming, cleaning, and so on |

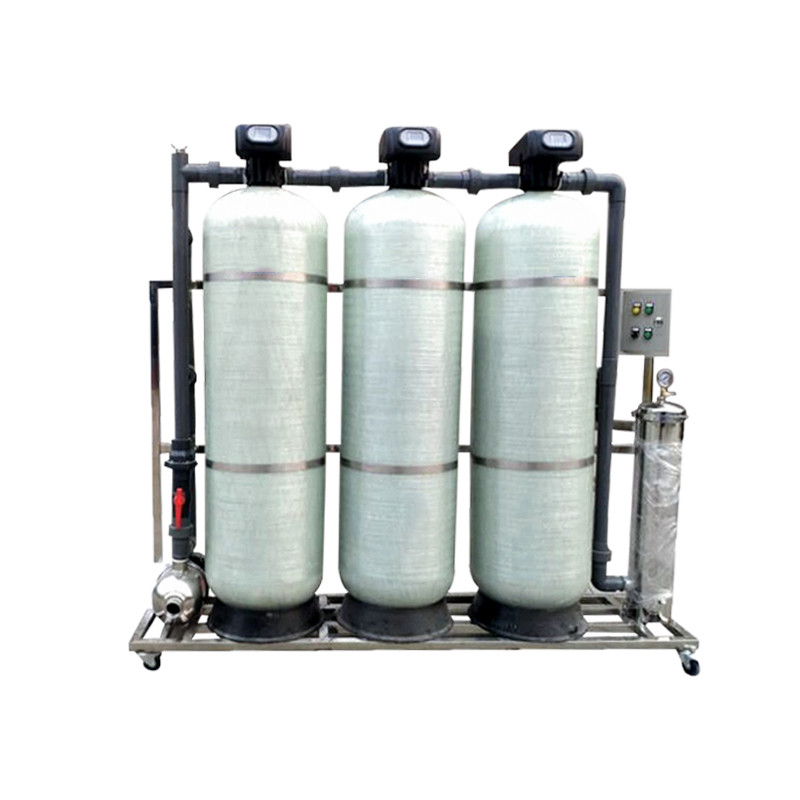

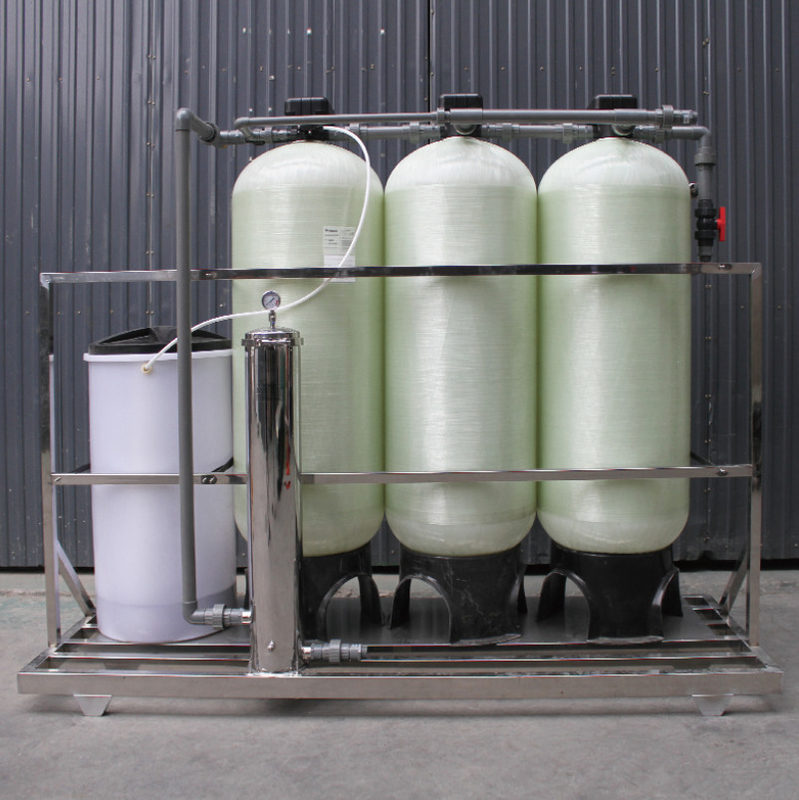

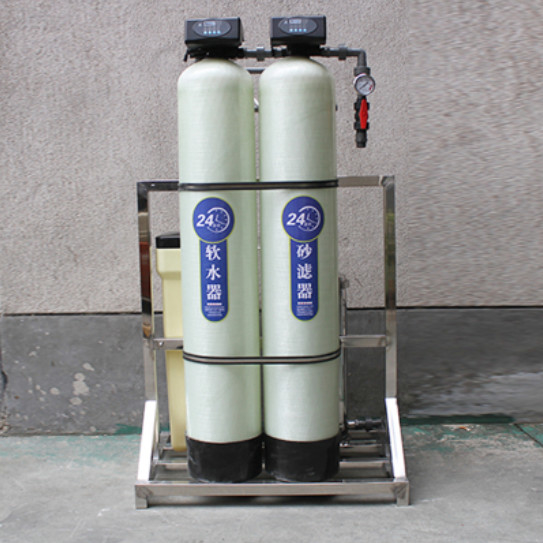

Pictures
