Place of Origin:
China
Brand Name:
LEADER-T /OEM
Certification:
CE/ISO
Model Number:
LD-EDI100LPH
Contact Us
Video

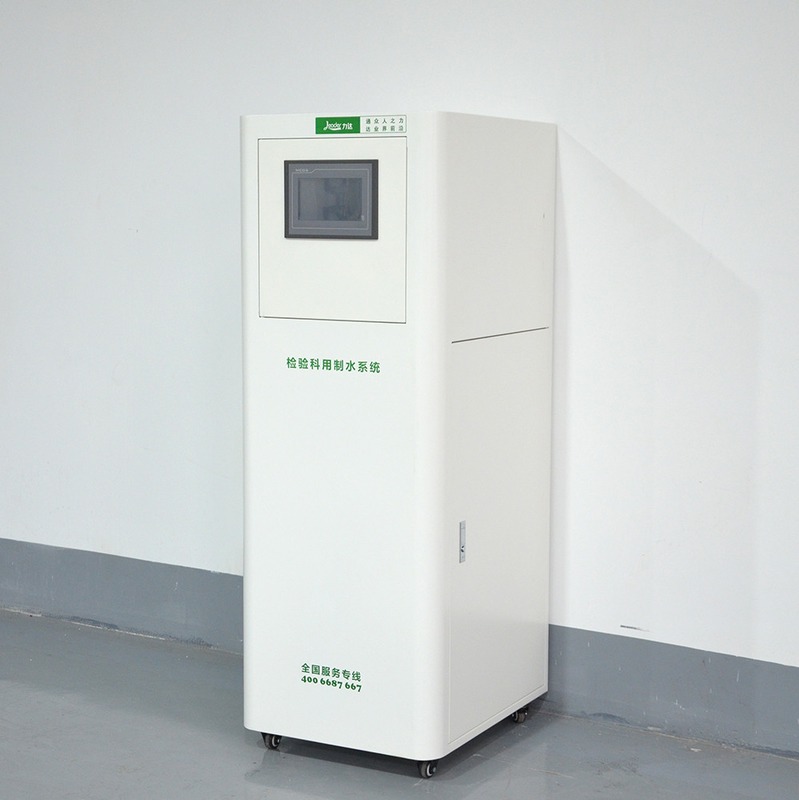

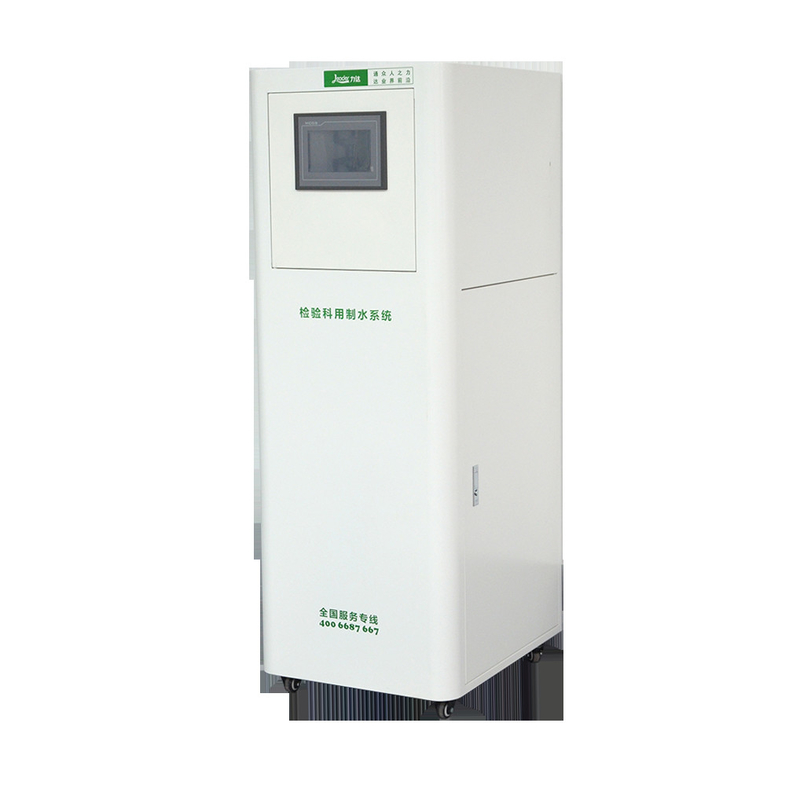

50L Double RO System+EDI Pharmaceutical Purified Water Plant EDI Purified Water System
specification
| Configuration list | ||||
| Configuration | Material | SPEC | Brand | |
| Tank | FRP /SS | 844/725/1065etc | Domestic/Pentair etc. | |
| Value | / | Auto/Manual | Domestic/Pentair etc | |
| Filter | quartz sand | 20-80 mesh | Domestic | |
| Active Carbon | 600-1100Mg/g | Domestic | ||
| Resin | / | Domestic PUROLITE,Rohm Hass | ||
| Ro membrance | Cellulose acetate membrane,element | 1812/2521/2540,4040/8040 etc.. | VONTRON/DOW,HYDRANAUTIC/Dongli | |
| Controlling System | / | PLC ,Maunal,Electric control | Domestic,Siemens | |
| Pipe/Value | Upvc/ss304/ss316 | DN15-DN150 | Domestic | |
| Pump | SS/Iron/Copper | CNP,Grundfos | ||
| Optional | Customize the design according to the customer's URS | |||
| Application | Drinking, cleaning, beverage, industrial and mining enterprises and so on. |
|||
PLANT PROCES
1.Raw water pump-- provide the pressure to silica sand filter/ active carbon filter
2.Silica Sand filter -- get rid of turbidity, suspended matter, organic matter, colloid and so on
3.Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter and so on
4.Softener--reduce the hardness of water
5.Micron filter--prevent any deposition of large Particles, most of the bacteria, and viruses into the RO membrane, The
accuracy is 5um, for holding back any large particulates such as large iron, dust, suspended matter, impurity.
6.High pressure pump-- Provide the high pressure to RO membrane (at least 2.0 M pa).
7.RO system--RO system is the main part of pure water treatment plant. The RO membrane's desalt rate can reach as
high as 99%, it is capable of removing over 99% of ions, bacteria, particles and 98% of organic.
Main description
This system is designed for the purified water project. Design the water source to master the worst water quality, and the production capacity is designed according to requirements. According to the different products, the effluent quality of the system meets the water requirements.
The design water source is based on municipal water.
The system is designed according to the user's raw water quality and the water quality requirements. The system configuration and settings can fully meet the requirements of water inlet conditions, with the principles of automatic, energy saving, simple operation, environmental protection and safety, and ensure the system can run stably for a long time.
The purified water system processes involve pretreatment via softening and microfiltration stage followed by a reverse osmosis stage and a final demineralization via the patented EDI module. This process technology meets current USP and European Pharmacopoeia requirements in a safe and reliable way. Each system is pre-qualified before shipment and undergoes a full functional FAT test at our factory.
Flow chart

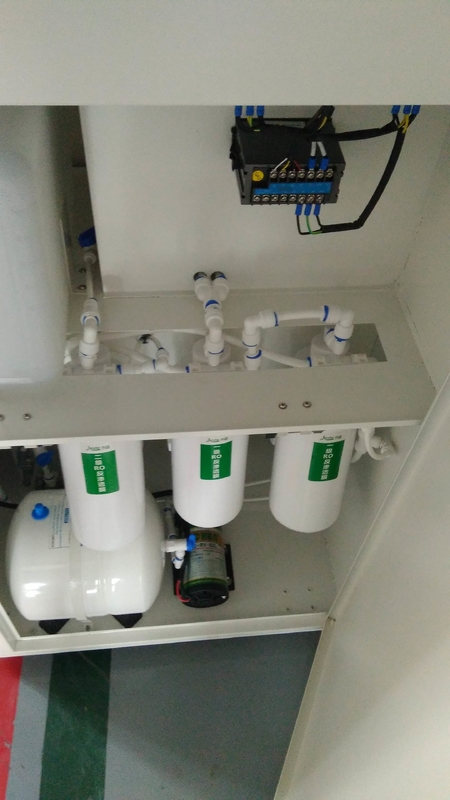

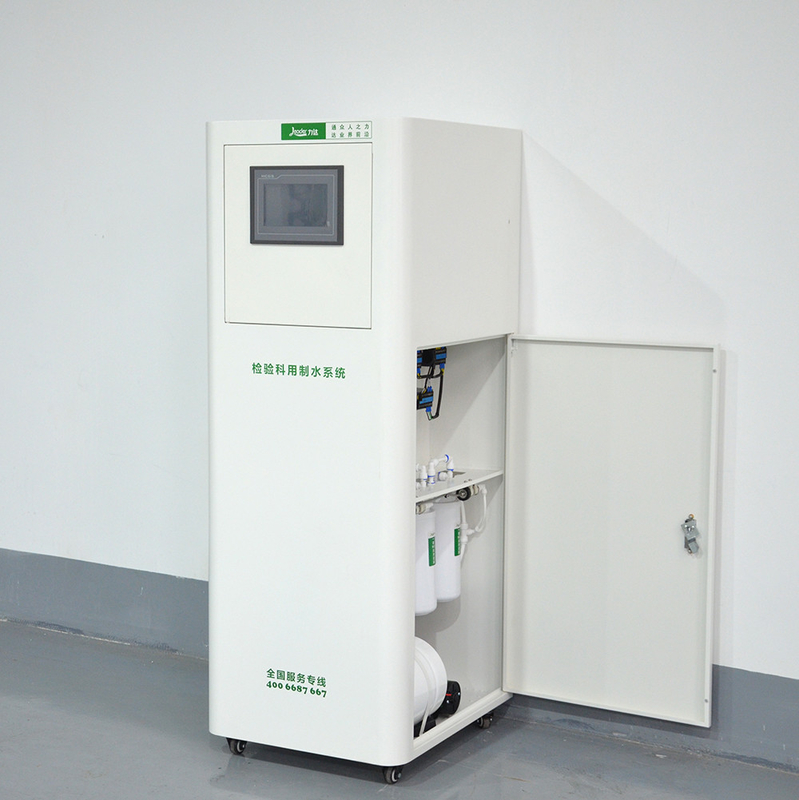

Pictures
