Laboratory Ro System Water Treatment Plant 10 - 80L/H Pure Water Making Machine

Laboratory Ro System Water Treatment Plant 10 - 80L/H Pure Water Making Machine

Laboratory reverse osmosis plant

80L/h ro system water treatment plant

10L/h pure water making machine

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Name:
Laboratory Ultrapure Water Making Equipment
Material Of Housing:
Anti-corrosive Carbon Steel Or Stainless Steel
Place Of Origin:
Core Components:
Pump, Bearing, PLC, Membrane
After Warranty Service:
Video Technical Support, Online Support, Field Maintenance A
Applicable Industries:
Medical Laboratory, Small Laboratory, Scientific Research Department
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Wooden /Box
Delivery Time
2-5 Days
Payment Terms
L/C, T/T, Western Union
Supply Ability
1000 Sets /Month
Product Description

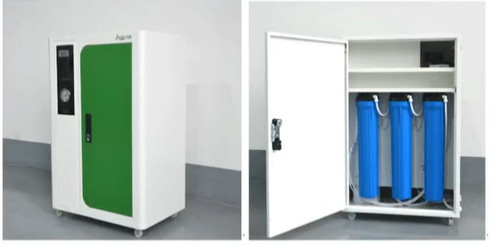

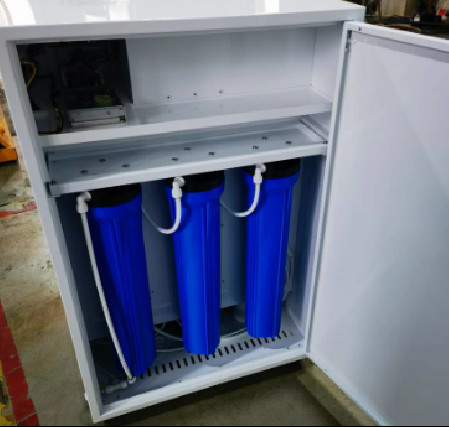

10-80Lph Laboratory ultrapure water making equipment




item Laboratory ultrapure water making equipment
Brand name LDL-10-80lph
operating weight 60kg
Overall dimensions L*W*H=48*31*60CM
Voltage 220V/50W
Warranty 1 Year
After-sales Service Provided Video technical support, Online support
Material SUS

Medical laboratory, small laboratory, scientific research department

Control mode full-automatic
Inlet water quality

Groundwater, surface water, urban tap water




Laboratory ultra pure water equipment function introduction

Laboratory ultrapure water equipment, simply said, is used in the laboratory to produce ultrapure water for experiments.


Because different experiments have different requirements for water quality, laboratory ultrapure water equipment should also be able to produce a variety of different specifications of ultrapure water or ultrapure water.


Application introduction

The preparation of sufficient pure water that meets the specific water quality required by the laboratory is the starting point of the entire pure water system of the laboratory. The amount of pure water used in laboratories varies from a few liters to thousands of liters per day. The first thing to consider when designing is to determine the daily water consumption and purified water quality required by each user and each instrument, as well as water use rules. The Pure Water Design department can then calculate the total daily and peak water consumption for the entire laboratory.

Quartz Sand Filter
It uses quartz sand as filter medium, effectively intercept to remove the suspended solids in the water, organic matter, colloid particles, microorganism, chlorine, smelling and some heavy metal ions, etc., finally to reduce water turbidity, purify water quality.

Activated Carbon Filter
activated carbon is used for both removing organic constituents and residual disinfectants (such as chlorine and chloramines) from water. We make media always by coconut shell which is the best quality media.
Activated carbon filter can effectively remove color, odor, residual chlorine, organic matter and heavy metals, synthetic detergent, such as bacteria, viruses and radioactive pollution.

Water softener
Water softeners can be used to help prevent scaling in RO systems by exchanging scaling ions with non-fouling ions. As with MMF units, it is important to place a 5-micron cartridge filter directly behind the softener in the event the softener's bottom drain fails.
Water softeners are used to remove calcium and magnesium and some other metal cations from hard water.


Precision filter

Precision filter (also known as the security filter), the shell is generally made of stainless steel, and the interior uses PP melt-blowout, wire burning, folding, titanium filter element, activated carbon filter element and other tubular filter element as the filter element. Different filter elements are selected according to different filter media and design process, in order to meet the requirements of water quality.

reverse osmosis membrance (RO)

Reverse osmosis membrane is an artificial semipermeable membrane that simulates biological semipermeable membrane, and is the core component of reverse osmosis technology. The principle of reverse osmosis technology is to make the osmotic pressure of the solution higher than that of other substances, so that it cannot pass through the semi-permeable membrane and take away these substances and water. The reverse osmosis membrane has a very small membrane pore size, which can effectively remove dissolved salts, colloids, microorganisms, organic matter, etc. The system has the advantages of good water quality, low energy consumption, no pollution, simple process and convenient operation.


Flow chart


Laboratory Ro System Water Treatment Plant 10 - 80L/H Pure Water Making Machine 0


Laboratory Ro System Water Treatment Plant 10 - 80L/H Pure Water Making Machine 1

Laboratory Ro System Water Treatment Plant 10 - 80L/H Pure Water Making Machine 2

Laboratory Ro System Water Treatment Plant 10 - 80L/H Pure Water Making Machine 3

Foreign installation and training

1.Timely Delivery,considerate sales after service

2.Many Years quality warranty,OEM service.

3.Top Craftmanship, All products 100% tested

4.Preferential freight by Famous shipping company

5.New Design,Very popular style products recommendation for your local market.


After-sales Service

1. Starting from the date of the equipment installation is complete, free warranty for 12 months, overseas projects since the factory warranty from the date of 18 months

2. Warranty period of product problems, the seller free of charge and is responsible for transport costs

3. If the buyer need to on-site service, both sides talks things over solve.

4. Man-made or natural disaster damage caused by the seller to provide free telephone support, for service, the seller may be appropriate to charge the cost

5. If you need to extend the warranty period, the two sides resolved through consultation.
