750 LPH Water Plant RO System Reverse Osmosis Water Filtration System

750 LPH Water Plant RO System Reverse Osmosis Water Filtration System

750 LPH Water Plant RO System

2000LPH Water Plant RO System

750 LTR Reverse Osmosis Water Filtration System

Place of Origin:

China

Brand Name:

Leader-t/OEM

Certification:

CE/ISO

Model Number:

LD-750LPH

Contact Us

Request A Quote
Product Details
Product:
Water Filtration System
Capacity:
2000LPH
Core Components::
Pump, Motor, PLC
Pre-filter:
Quartz Sand/active Carbon/softener
Type:
Reverse Osmosis
Ro Membrane:
Vontron/DOW/Toray
After-sales Service Provided:
Online Support, Video Technical Support, Field Installation, Commissioning And Training, Engineers Available To Service Machinery Overseas
Control:
PLC+Touch Screen, PLC
Payment & Shipping Terms
Minimum Order Quantity
1SET
Price
Negotiable
Packaging Details
Wooden /Box
Delivery Time
5-8 Days
Payment Terms
L/C, T/T, Western Union
Supply Ability
1000 Sets /Month
Product Description
Reverse Osmosis Water Filtration System Water Plant Ro System

Specification

Configuration list
Configuration Material SPEC Brand
Tank FRP /SS 844/725/1065etc Domestic/Pentair etc.
Value / Auto/Manual Domestic/Pentair etc
Filter quartz sand 20-80 mesh Domestic
  Active Carbon 600-1100Mg/g Domestic
  Resin / Domestic PUROLITE,Rohm Hass
Ro membrance Cellulose acetate membrane,element 1812/2521/2540,4040/8040 etc.. VONTRON/DOW,HYDRANAUTIC/Dongli
Controlling System / PLC ,Maunal,Electric control Domestic,Siemens
Pipe/Value Upvc/ss304/ss316 DN15-DN150 Domestic
Pump SS/Iron/Copper   CNP,Grundfos
Optional Customize the design according to the customer's URS
Application Drinking, cleaning, beverage, industrial and mining enterprises and so on.

Principle of reverse osmosis water treatment

Reverse osmosis water treatment is a kind of with the aid of choice through (through) the skill of membrane will return to pressure as the driving

force for a membrane separation technology, when system and the pressure is greater than in the aqueous solution of osmotic pressure, the

water molecules through the membrane unceasingly, after producing water flows into the central tube, and then out in the end the impurities in the

water, such as ion, organic matters, such as bacteria, viruses, interception on the inlet side of the membrane, and then in the thick water outflow

water end, so as to achieve separation and purification.

The operating pressure is applied on the inlet (concentrated solution) side to overcome the natural osmotic pressure. When the operating

pressure higher than the natural osmotic pressure is removed from the concentrated solution side, the flow direction of the natural osmotic water

molecules will be reversed. The water in the inlet (concentrated solution) will pass through the reverse osmosis membrane to become the

purification water produced on the dilute solution side.Reverse osmosis equipment can stop all the soluble salt and organic molecular weight

greater than 100, but allowing water molecules through the reverse osmosis composite membrane desalting rate is generally greater than 98%,

they are widely used in industrial pure water preparation and electronic ultrapure water, drinking pure water production, such as boiler feed water

process, using reverse osmosis equipment before ion exchange can sharply decreasing operation of water and wastewater emissions.
The working principle of
Reverse osmosis is the most sophisticated liquid membrane separation technology, operating pressure against the side of water (concentrated solution) in order to overcome natural osmotic pressure, when higher than natural osmotic pressure of operating pressure on thick natural penetration of water molecules in solution of lateral flow direction will be reversed, the moisture in water (concentrated solution) radical become dilute solution by reverse osmosis membrane side of purified water production;Reverse osmosis equipment can stop all the soluble salt and organic molecular weight greater than 100, but allowing water molecules through the reverse osmosis composite membrane desalting rate is generally greater than 98%, they are widely used in industrial pure water preparation and electronic ultrapure water, drinking pure water production, such as boiler feed water process, using reverse osmosis equipment before ion exchange can sharply decreasing operation of water and wastewater emissions


Flow chart



750 LPH Water Plant RO System Reverse Osmosis Water Filtration System 0








Pictures

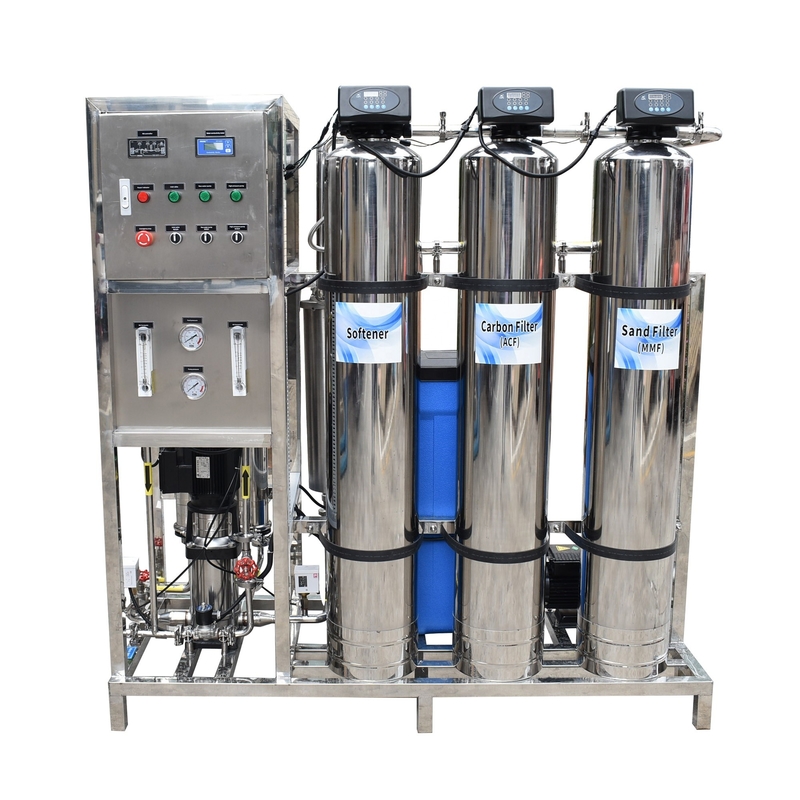

750 LPH Water Plant RO System Reverse Osmosis Water Filtration System 1

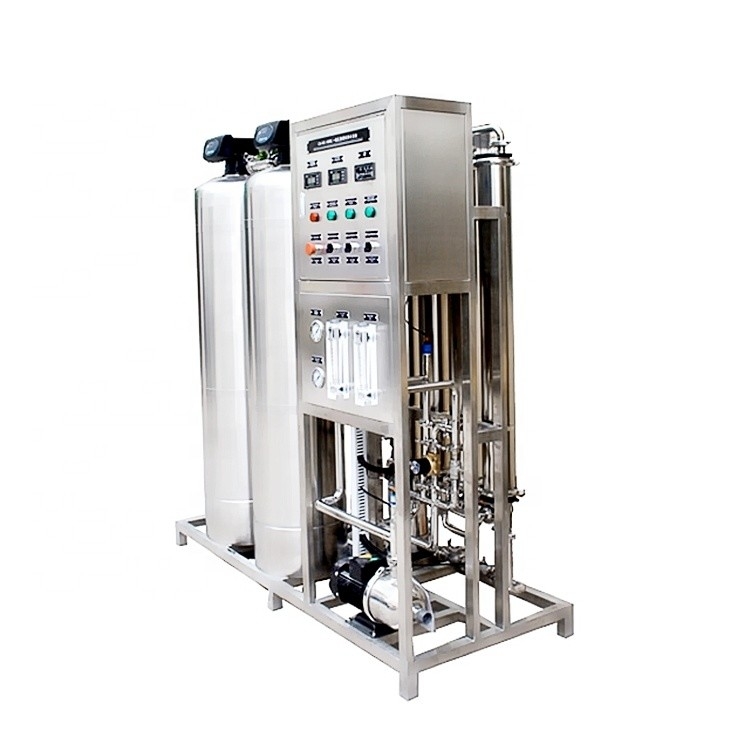

750 LPH Water Plant RO System Reverse Osmosis Water Filtration System 2

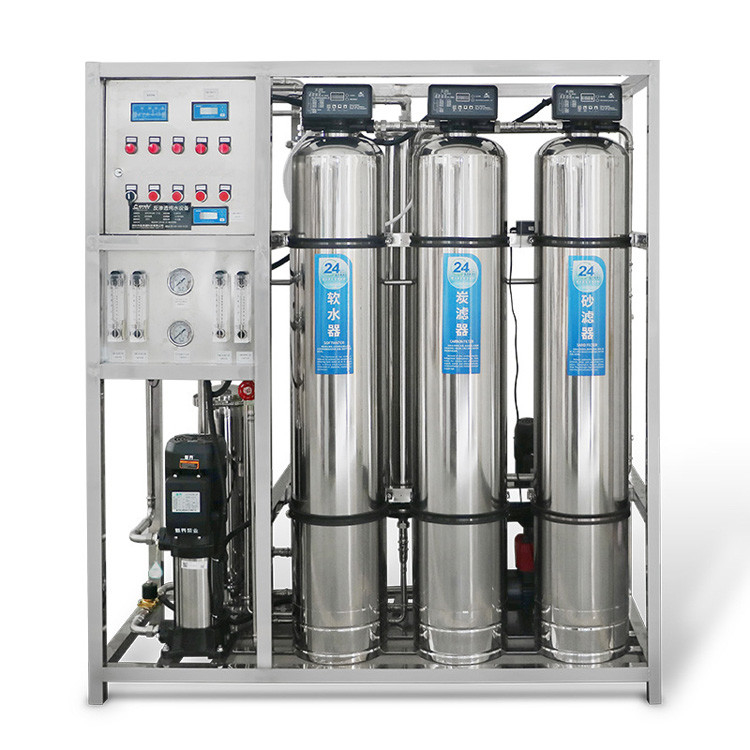

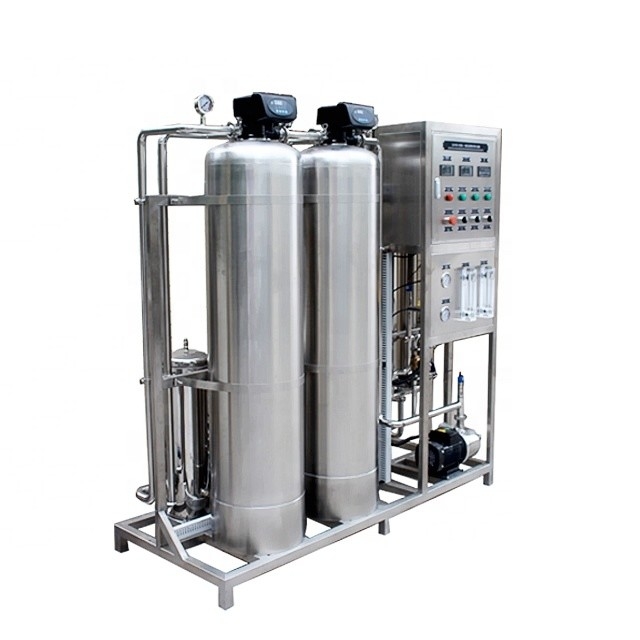

750 LPH Water Plant RO System Reverse Osmosis Water Filtration System 3
