DOW Membrane 20T/Hr Water Plant RO System Pure Water Treatment Plant

DOW Membrane 20T/Hr Water Plant RO System Pure Water Treatment Plant

20T/Hr Water Plant RO System

DOW Membrane Water Plant RO System

20Tph Pure Water Treatment Plant

Place of Origin:

China

Brand Name:

Leader-t/OEM

Certification:

CE/ISO

Model Number:

LD-0.5T

Contact Us

Request A Quote
Product Details
Product:
20TPH Pure Water Treatment Plant Water Plant Ro System
Capacity:
20T
Core Components::
Pump, Motor, PLC
Pre-filter:
Quartz Sand/active Carbon/softener
Type:
Reverse Osmosis
Ro Membrane:
Vontron/DOW/Toray
After-sales Service Provided:
Online Support, Video Technical Support, Field Installation, Commissioning And Training, Engineers Available To Service Machinery Overseas
Control:
PLC+Touch Screen, PLC, Automatic Controller
Payment & Shipping Terms
Minimum Order Quantity
1SET
Price
Negotiable
Packaging Details
Wooden /Box
Delivery Time
5-8 Days
Payment Terms
L/C, T/T, Western Union
Supply Ability
1000 Sets /Month
Product Description


20TPH Pure Water Treatment Plant Water Plant Ro System


Specification

Configuration list
Configuration Material SPEC Brand
Tank FRP /SS 844/725/1065etc Domestic/Pentair etc.
Value / Auto/Manual Domestic/Pentair etc
Filter quartz sand 20-80 mesh Domestic
  Active Carbon 600-1100Mg/g Domestic
  Resin / Domestic PUROLITE,Rohm Hass
Ro membrance Cellulose acetate membrane,element 1812/2521/2540,4040/8040 etc.. VONTRON/DOW,HYDRANAUTIC/Dongli
Controlling System / PLC ,Maunal,Electric control Domestic,Siemens
Pipe/Value Upvc/ss304/ss316 DN15-DN150 Domestic
Pump SS/Iron/Copper   CNP,Grundfos
Optional Customize the design according to the customer's URS
Application Drinking, cleaning, beverage, industrial and mining enterprises and so on.


RO main machine
This system uses mechanical filters, activated carbon filter as a pre-class treatment, the effective removal of suspended solids in raw water, sediment particles, organic colloids, organic matter, odor, chlorine and other impurities, with pre-programmed as a reverse osmosis desalination plant to remove the raw water Most of the dissolved salts, bacteria, hot stream and so on, to ensure finished water quality standards. Under normal circumstances, the system can be placed in automatic operation mode of the work of continuous operation, automatic monitoring water quality, simple, stable, safe and reliable.
RO main machine
This system uses mechanical filters, activated carbon filter as a pre-class treatment, the effective removal of suspended solids in raw water, sediment particles, organic colloids, organic matter, odor, chlorine and other impurities, with pre-programmed as a reverse osmosis desalination plant to remove the raw water Most of the dissolved salts, bacteria, hot stream and so on, to ensure finished water quality standards. Under normal circumstances, the system can be placed in automatic operation mode of the work of continuous operation, automatic monitoring water quality, simple, stable, safe and reliable.
Pretreat Activated carbon filter
Activated carbon is used wood, coal, shell (nuclear) and other carbonaceous material through chemical or physical method activation made. It has a very large number of pores and specific surface area, which has a strong physical adsorption capacity, the effective adsorption of organic pollutants in water. Primarily to remove organic matter in raw water, chlorine, odor, color, etc., so that the original residual chlorine in water ≤ 0.1mg / l, effective protection of RO membrane from chlorine damage.
Pretreat 5μm security filter
The third pretreatment, filter spray for the polypropylene melt, filter housing is ABS material, mainly to remove the vast majority of very fine suspended solids.

RO reverse osmosis machine application

1. Electronic industry water integrated circuits, silicon wafers, display tubes and other electronic components flushing water
2. Pharmaceutical industry water infusion, injection, tablet, biochemical products, equipment cleaning and so on
3. Chemical industry process water, chemical circulating water, chemical products manufacturing
4. Power industry boiler supply water thermal power boiler, plant and mine low pressure boiler power system, etc
5. Food industry water drinking pure water, beverage, beer, liquor, health products, etc
6.Ultrasonic cleaning water computer accessories, special materials, precision machinery and other requirements of high cleanliness of ultrasonic cleaning line
7. Electroplating industry water cleaning workpiece water, bath water
8. Other process water for automobile, home appliance coating, coated glass, cosmetics, fine chemicals, etc



Flow chart



DOW Membrane 20T/Hr Water Plant RO System Pure Water Treatment Plant 0








Pictures

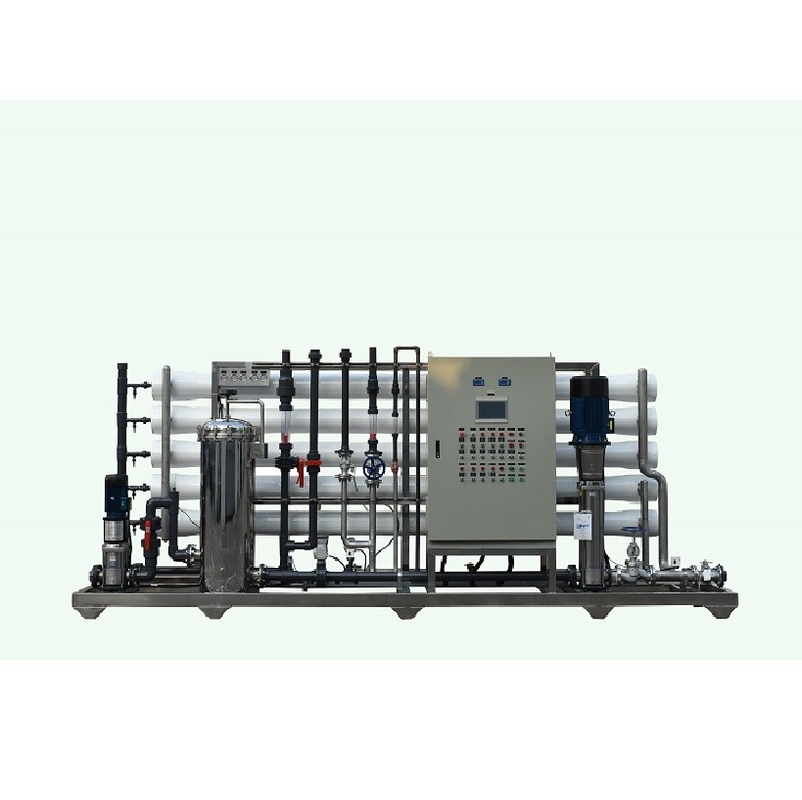

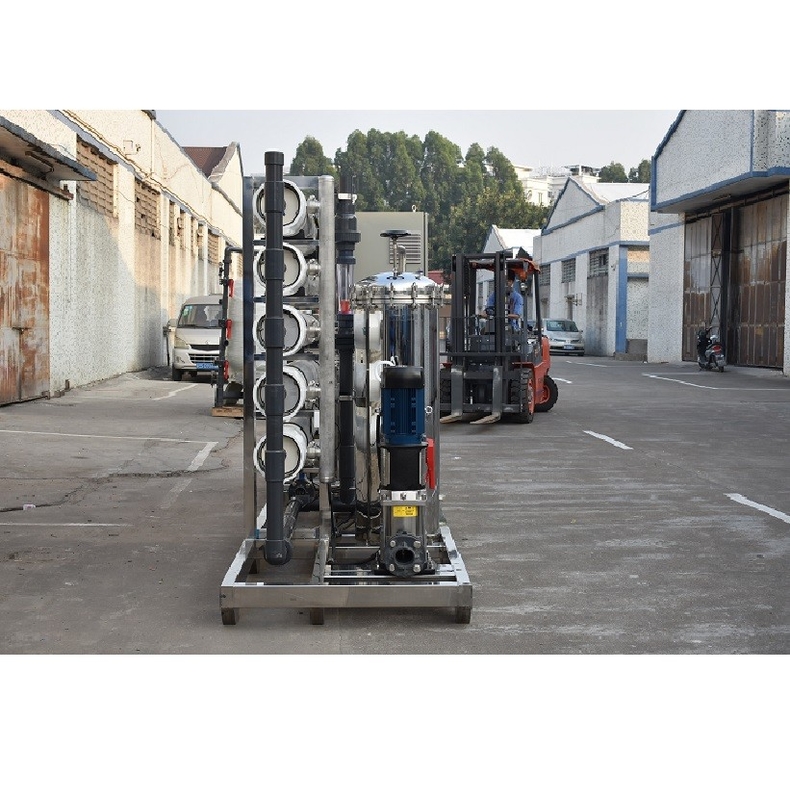

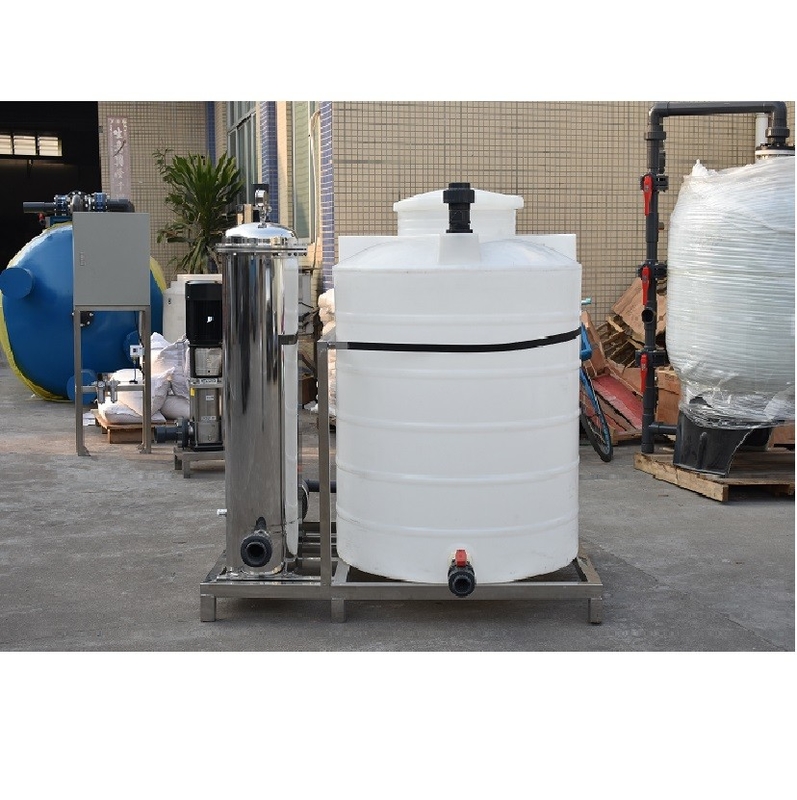

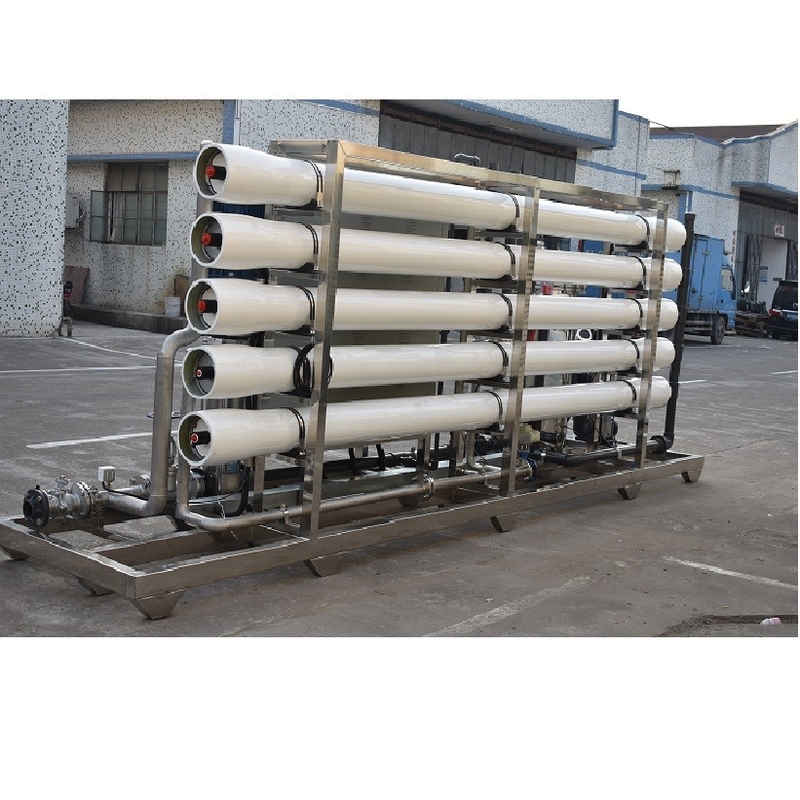

DOW Membrane 20T/Hr Water Plant RO System Pure Water Treatment Plant 1





DOW Membrane 20T/Hr Water Plant RO System Pure Water Treatment Plant 2
