Place of Origin:
China
Brand Name:
Leader-t/OEM
Certification:
CE/ISO
Model Number:
LD-500LPH
Contact Us
The RO system consists of raw water pretreatment , RO unit and post-treatment. Due to the wide variety of raw waters and the complexity of the ingredients, it is necessary to select a suitable pretreatment process to reduce scale and scale and prevent the performance of the RO membrane from deteriorating. Especially in the field of reclaimed water and wastewater reuse, the selection of a suitable pretreatment system will directly affect the stability of the entire water treatment system.
Therefore, the raw water must be strictly pretreated. According to different water quality requirements, choose the appropriate after treatment system to meet the final requirements of aquatic products. If there are high requirements for microorganisms, we can choose a combination of ozone and UV disinfection technology. Thanks to the RO process, we can make the system more stable, lower energy consumption and water quality guarantee.
| Configuration list | |||
| Configuration | Material | SPEC | Brand |
| Tank | FRP /SS | 844/725/1065etc | Domestic/Pentair etc. |
| Value | / | Auto/Manual | Domestic/Pentair etc |
| Filter | quartz sand | 20-80 mesh | Domestic |
| Active Carbon | 600-1100Mg/g | Domestic | |
| Resin | / | Domestic PUROLITE,Rohm Hass | |
| Ro membrance | Cellulose acetate membrane,element | 1812/2521/2540,4040/8040 etc.. | VONTRON/DOW,HYDRANAUTIC/Dongli |
| Controlling System | / | PLC ,Maunal,Electric control | Domestic,Siemens |
| Pipe/Value | Upvc/ss304/ss316 | DN15-DN150 | Domestic |
| Pump | SS/Iron/Copper | CNP,Grundfos | |
| Optional | Customize the design according to the customer's URS | ||
| Application | Drinking, cleaning, beverage, industrial and mining enterprises and so on. | ||
Scope of application
(1), electronic industry water: pure water, distilled water, integrated circuit, silicon wafer, display tube and other electronic components flushing;
(2), pharmaceutical industry water: large infusion, injection, tablet, biochemical products, equipment cleaning, etc.;
(3) Industrial process water: chemical circulating water, chemical product manufacturing, etc.;
(4) Power industry boiler supply water: power system of thermal power generation boilers and medium-high pressure boilers in factories and mines;
(5) water for food industry: water for drinking purified water, beverage, beer, liquor, health care products, etc.
(6) Drinking water: bottled water, mineral water, direct drinking water in the community, direct drinking water in the school;
(7), other process water: papermaking, electroplating, printing and dyeing automotive, home appliances coating, coated glass, dressing products, precision chemicals, etc.
Flow chart

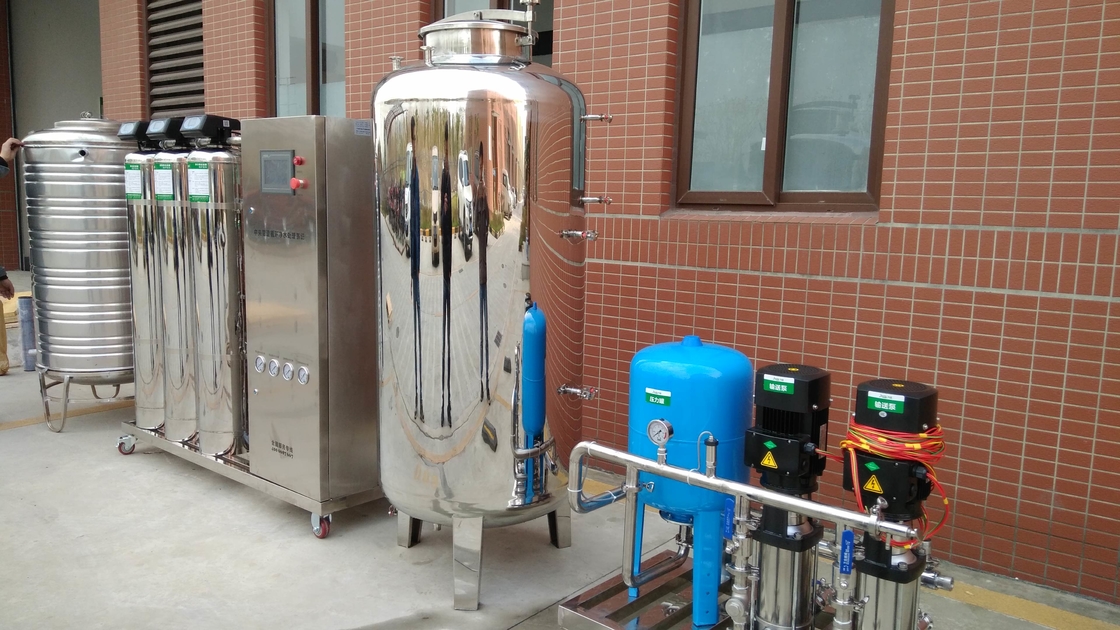

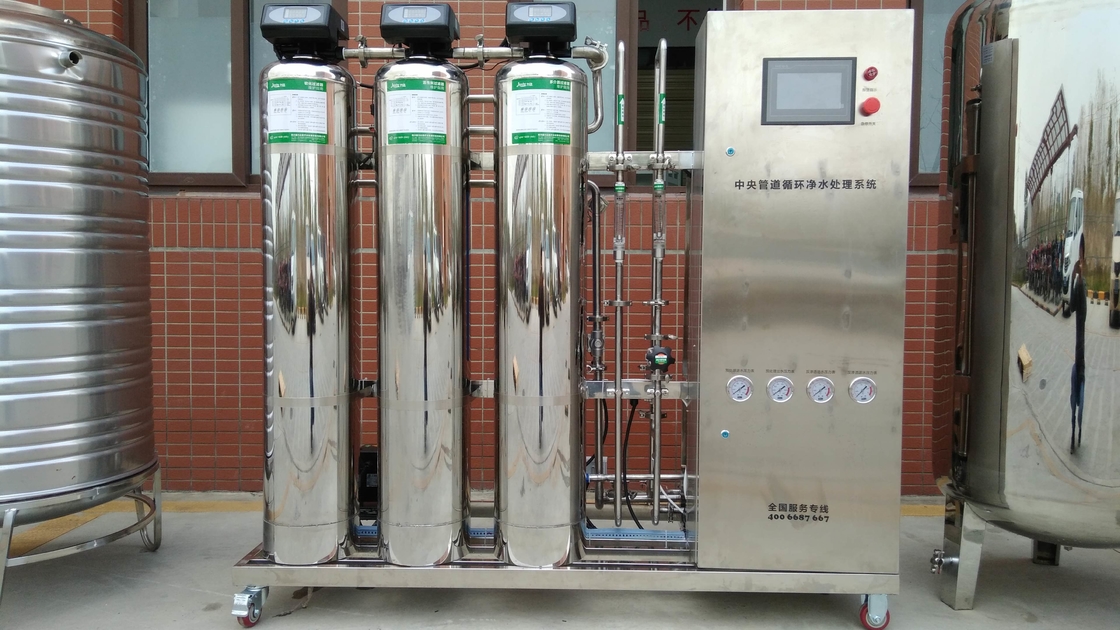

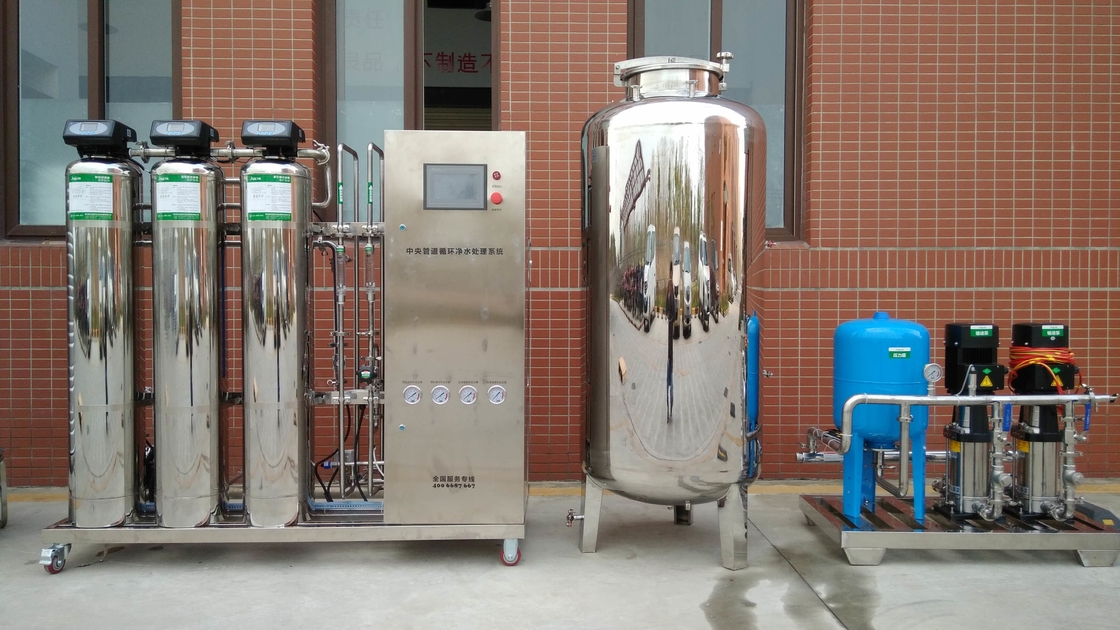

Pictures
