PLC RO Commercial Water Purifier 500 LPH For Purified Drinking Water Treatment

PLC RO Commercial Water Purifier 500 LPH For Purified Drinking Water Treatment

RO Commercial Water Purifier 500 LPH

PLC Commercial Water Purifier 500 LPH

Commercial 500 litre ro plant

Place of Origin:

China

Brand Name:

Leader-t/OEM

Certification:

CE/ISO

Model Number:

LD-500L

Contact Us

Request A Quote
Product Details
Product:
Ro Water Purification Plant
Capacity:
500L
Core Components::
Pump, Motor, PLC
Pre-filter:
Quartz Sand/active Carbon/softener
Type:
Reverse Osmosis
Ro Membrane:
Vontron/DOW/Toray
After-sales Service Provided:
Online Support, Video Technical Support, Field Installation, Commissioning And Training, Engineers Available To Service Machinery Overseas
Control:
PLC+Touch Screen, PLC, Automatic Controller
Payment & Shipping Terms
Minimum Order Quantity
1SET
Price
Negotiable
Packaging Details
Wooden /Box
Delivery Time
5-8 Days
Payment Terms
L/C, T/T, Western Union
Supply Ability
1000 Sets /Month
Product Description
500LPH Ro Water Purification Plant Water Plant Ro System

Purified Drinking Water Treatment Plant Small RO Water Treatment System

The RO system consists of raw water pretreatment , RO unit and post-treatment. Due to the wide variety of raw waters and the complexity of the ingredients, it is necessary to select a suitable pretreatment process to reduce scale and scale and prevent the performance of the RO membrane from deteriorating. Especially in the field of reclaimed water and wastewater reuse, the selection of a suitable pretreatment system will directly affect the stability of the entire water treatment system.

Therefore, the raw water must be strictly pretreated. According to different water quality requirements, choose the appropriate after treatment system to meet the final requirements of aquatic products. If there are high requirements for microorganisms, we can choose a combination of ozone and UV disinfection technology. Thanks to the RO process, we can make the system more stable, lower energy consumption and water quality guarantee.

Specification

Configuration list
Configuration Material SPEC Brand
Tank FRP /SS 844/725/1065etc Domestic/Pentair etc.
Value / Auto/Manual Domestic/Pentair etc
Filter quartz sand 20-80 mesh Domestic
  Active Carbon 600-1100Mg/g Domestic
  Resin / Domestic PUROLITE,Rohm Hass
Ro membrance Cellulose acetate membrane,element 1812/2521/2540,4040/8040 etc.. VONTRON/DOW,HYDRANAUTIC/Dongli
Controlling System / PLC ,Maunal,Electric control Domestic,Siemens
Pipe/Value Upvc/ss304/ss316 DN15-DN150 Domestic
Pump SS/Iron/Copper   CNP,Grundfos
Optional Customize the design according to the customer's URS
Application Drinking, cleaning, beverage, industrial and mining enterprises and so on.

RO main machine
This system uses mechanical filters, activated carbon filter as a pre-class treatment, the effective removal of suspended solids in raw water, sediment particles, organic colloids, organic matter, odor, chlorine and other impurities, with pre-programmed as a reverse osmosis desalination plant to remove the raw water Most of the dissolved salts, bacteria, hot stream and so on, to ensure finished water quality standards. Under normal circumstances, the system can be placed in automatic operation mode of the work of continuous operation, automatic monitoring water quality, simple, stable, safe and reliable.


Flow chart



PLC RO Commercial Water Purifier 500 LPH For Purified Drinking Water Treatment 0








Pictures

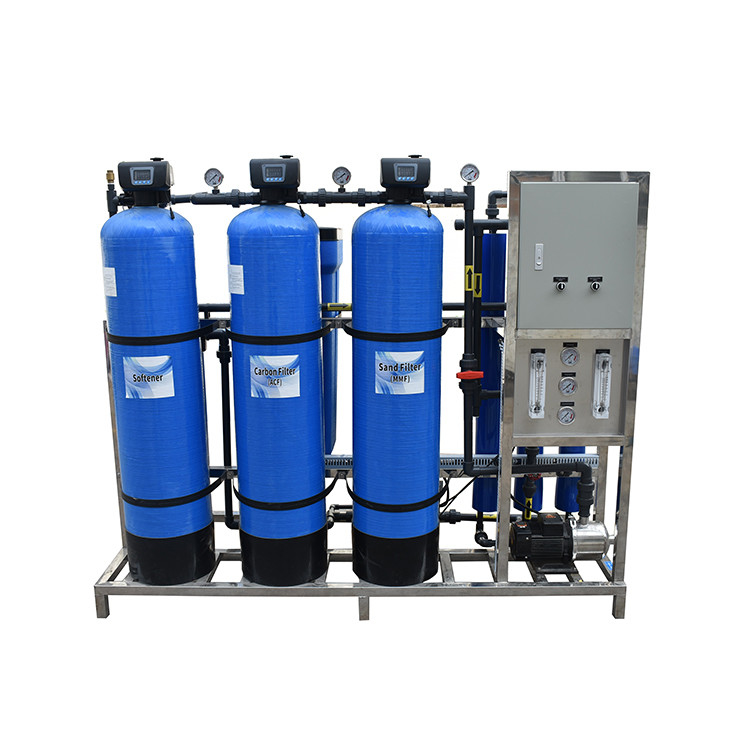

PLC RO Commercial Water Purifier 500 LPH For Purified Drinking Water Treatment 1

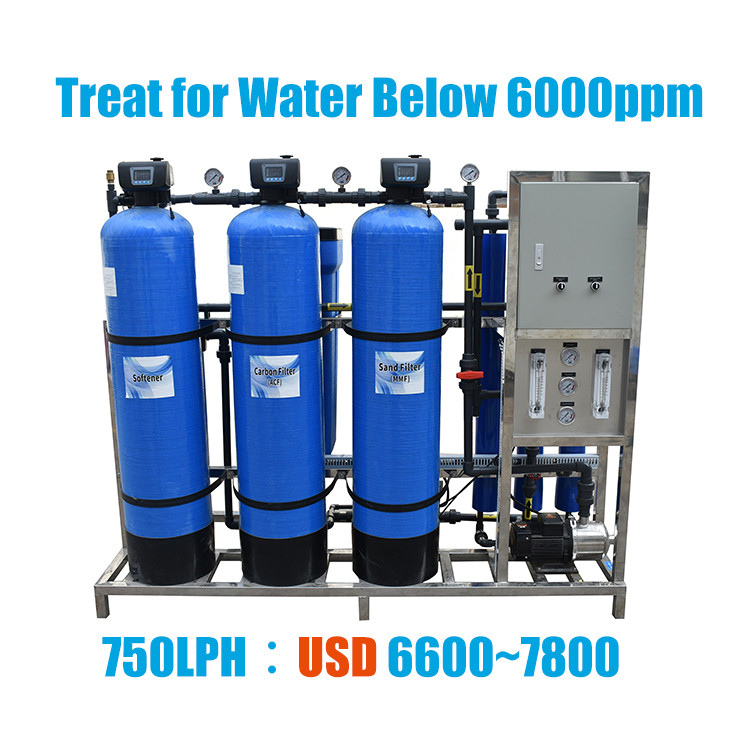

PLC RO Commercial Water Purifier 500 LPH For Purified Drinking Water Treatment 2

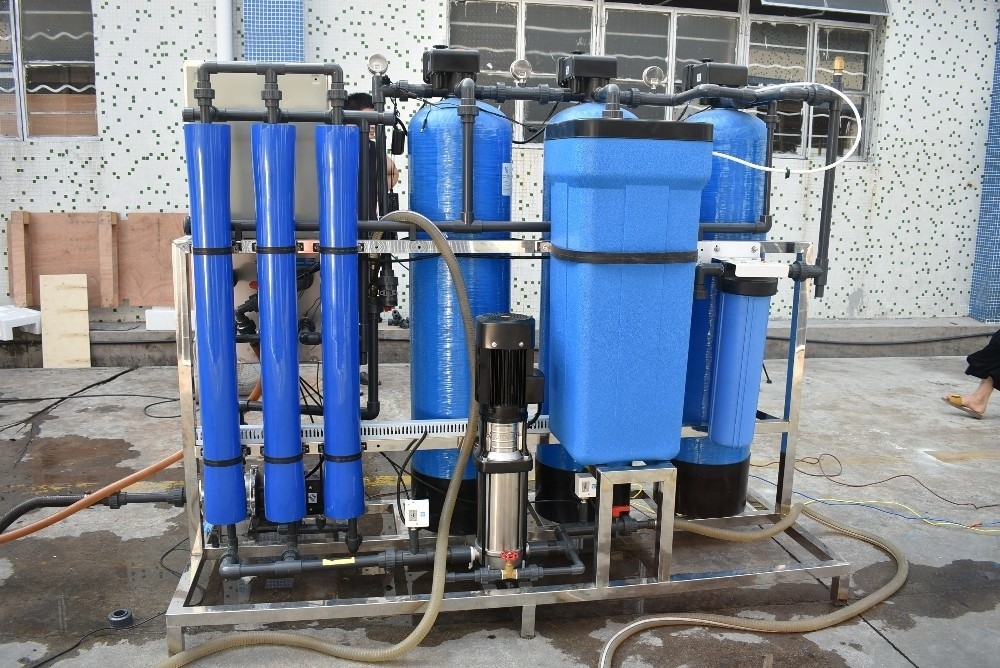

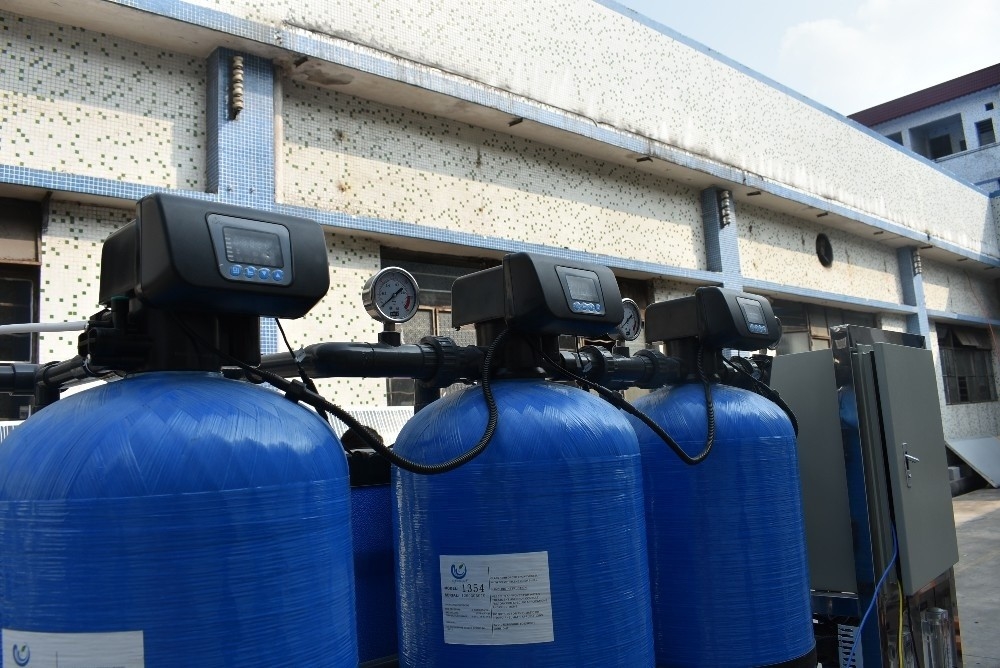

PLC RO Commercial Water Purifier 500 LPH For Purified Drinking Water Treatment 3
