500LPH Commercial RO Water Filter PLC Water Purification Machine

500LPH Commercial RO Water Filter PLC Water Purification Machine

500LPH commercial ro water filter

PLC commercial reverse osmosis water filter

500LPH commercial water purification machine

Place of Origin:

China

Brand Name:

Leader-t/OEM

Certification:

CE/ISO

Model Number:

LD-500L

Contact Us

Request A Quote
Product Details
Product:
Ro Water Purification Plant
Capacity:
500L
Core Components::
Pump, Motor, PLC
Pre-filter:
Quartz Sand/active Carbon/softener
Type:
Reverse Osmosis
Ro Membrane:
Vontron/DOW/Toray
After-sales Service Provided:
Online Support, Video Technical Support, Field Installation, Commissioning And Training, Engineers Available To Service Machinery Overseas
Control:
PLC+Touch Screen, PLC, Automatic Controller
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
Wooden /Box
Delivery Time
7-10 Days
Payment Terms
L/C, T/T, Western Union
Supply Ability
1000 Sets /Month
Product Description
500LPH Ro Water Purification Plant Water Plant Ro System

Purified Drinking Water Treatment Plant Small RO Water Treatment System


The reverse osmosis system consists of raw water pretreatment, reverse osmosis device and post-treatment. Due to the wide variety and complex composition of raw water, it is necessary to choose a suitable pretreatment process to reduce the size and scale and prevent the performance of the reverse osmosis membrane from deteriorating. Especially in the field of reclaimed water and wastewater reuse, choosing a suitable pretreatment system will directly affect the stability of the entire water treatment system.
Therefore, strict pretreatment of raw water is necessary. According to different water quality requirements, choose the appropriate post-treatment system to meet the final requirements of aquatic products. If there are high demands on microorganisms, we can choose a combination of ozone and ultraviolet disinfection technology.
Thanks to the reverse osmosis process, we can make the system more stable, reduce energy consumption and ensure water quality.


Specification

Configuration List
Configuration Material SPEC Brand
Tank FRP /SS 844/725/1065etc Domestic/Pentair etc.
Value / Auto/Manual Domestic/Pentair etc
Filter quartz sand 20-80 mesh Domestic
  Active Carbon 600-1100Mg/g Domestic
  Resin / Domestic PUROLITE, Rohm Hass
Ro membrance Cellulose acetate membrane, element 1812/2521/2540,4040/8040 etc. VONTRON/DOW,HYDRANAUTIC/Dongli
Controlling System / PLC, Maunal, Electric control Domestic, Siemens
Pipe/Value Upvc/ss304/ss316 DN15-DN150 Domestic
Pump SS/Iron/Copper   CNP, Grundfos
Optional Customize the design according to the customer's URS
Application Drinking, cleaning, beverage, industrial and mining enterprises and so on.


RO main machine - Features and advantages
The system uses mechanical filter, activated carbon filter as pretreatment to effectively remove suspended solids, sediment particles, organic colloids, organic matter, odor, chlorine and other impurities in raw water, and is pre-programmed as a reverse osmosis desalination unit to remove raw water Most of the dissolved salt, bacteria, heat flow, etc. in the water to ensure the water quality standard of finished products. Under normal circumstances, the system can be placed in the automatic operation mode to run continuously and monitor the water quality automatically, which is simple, stable, safe and reliable.


Flow chart



500LPH Commercial RO Water Filter PLC Water Purification Machine 0

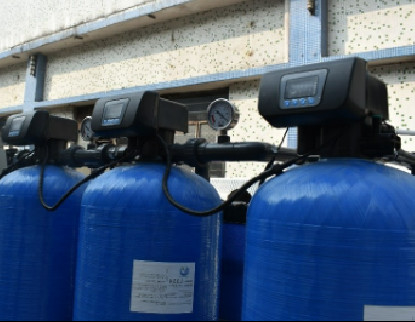

Pictures from our factory



500LPH Commercial RO Water Filter PLC Water Purification Machine 1





500LPH Commercial RO Water Filter PLC Water Purification Machine 2



500LPH Commercial RO Water Filter PLC Water Purification Machine 3
