1000L Electrodeionization EDI Purified Water System Drinking Water Treatment

1000L Electrodeionization EDI Purified Water System Drinking Water Treatment

CE EDI Purified Water System

1000L edi water treatment system

electrodeionization edi system Drinking water

Place of Origin:

China

Brand Name:

LEADER-T /OEM

Certification:

CE/ISO

Model Number:

LD-EDI1000LPH

Contact Us

Request A Quote
Product Details
Product Name:
EDI Purified Water System
Output:
1000L
Desalt Rate:
99%
Operation Pressure:
0.7-1.5Mpa
Packing:
Wooden Box
Core Components:
RO Membrane
After-sales Service:
Video Technical Support, Field Installation
Standard:
BP/UP/FDA Etc
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
Wooden/ Box
Delivery Time
7-15 Days
Payment Terms
L/C, T/T, Western Union
Supply Ability
1000 Set /Month
Product Description

1000L RO System with EDI Pharmaceutical Purified EDI Purified Water System



specification

Configuration list
Configuration Material SPEC Brand
Tank FRP /SS 844/725/1065etc Domestic/Pentair etc.
Value / Auto/Manual Domestic/Pentair etc
Filter quartz sand 20-80 mesh Domestic
  Active Carbon 600-1100Mg/g Domestic
  Resin / Domestic PUROLITE,Rohm Hass
Ro membrance Cellulose acetate membrane,element 1812/2521/2540,4040/8040 etc.. VONTRON/DOW,HYDRANAUTIC/Dongli
Controlling System / PLC ,Maunal,Electric control Domestic,Siemens
Pipe/Value Upvc/ss304/ss316 DN15-DN150 Domestic
Pump SS/Iron/Copper   CNP,Grundfos
Optional Customize the design according to the customer's URS
Application Drinking, cleaning, beverage, industrial and mining enterprises and so on.




PLANT PROCES
1.Raw water pump-- provide the pressure to silica sand filter/ active carbon filter

2.Silica Sand filter -- get rid of turbidity, suspended matter, organic matter, colloid and so on
3.Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter and so on

4.Softener--reduce the hardness of water

5.Micron filter--prevent any deposition of large Particles, most of the bacteria, and viruses into the RO membrane, The

accuracy is 5um, for holding back any large particulates such as large iron, dust, suspended matter, impurity.

6.High pressure pump-- Provide the high pressure to RO membrane (at least 2.0 M pa).

7.RO system--RO system is the main part of pure water treatment plant. The RO membrane's desalt rate can reach as
high as 99%, it is capable of removing over 99% of ions, bacteria, particles and 98% of organic.



Function
1.RO pure water treatment plant is used for the production of drinking water, pharmaceutical plants, food plants, beverages
factories, fruit and vegetable factories, etc. Machine integration as a group; assembly and transport
Useful
2. Simple operation and long life.
3. Main components: RO membrane (US DOW)
4. High pressure pump: Grundfos, Denmark
5. Conductive meter
6. Ultra-high or ultra-low pressure protection facilities
7. 304 stainless steel (316L stainless steel available)

Flow chart

1000L Electrodeionization EDI Purified Water System Drinking Water Treatment 0

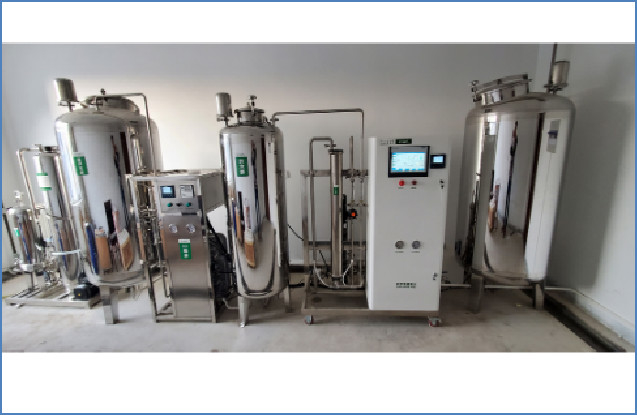

Pictures



1000L Electrodeionization EDI Purified Water System Drinking Water Treatment 1
