0.7 To 1.5Mpa EDI Water Purification System Movable With RO Membrane

0.7 To 1.5Mpa EDI Water Purification System Movable With RO Membrane

EDI water purification system movable

1.5Mpa edi water purification

edi water system 0.7Mpa

Place of Origin:

China

Brand Name:

LEADER-T /OEM

Certification:

CE/ISO

Model Number:

LD-EDI100LPH

Contact Us

Request A Quote
Product Details
Product Name:
RO EDI Water Treatment
Output:
3000GPD
Desalt Rate:
99%
Operation Pressure:
0.7-1.5Mpa
Packing:
Wooden Box
Core Components:
RO Membrane
Type:
Wheeled\movable
Standard:
BP/UP/FDA Etc
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
Wooden/ Box
Delivery Time
7-15 Days
Payment Terms
L/C, T/T, Western Union
Supply Ability
1000 Set /Month
Product Description

3000 GPD RO EDI Purified Water System Electrodeionization Water Treatment Plant



PLANT PROCES


1.Raw water pump-- provide the pressure to silica sand filter/ active carbon filter

2.Silica Sand filter -- get rid of turbidity, suspended matter, organic matter, colloid and so on
3.Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter and so on

4.Softener--reduce the hardness of water

5.Micron filter--prevent any deposition of large Particles, most of the bacteria, and viruses into the RO membrane, The

accuracy is 5um, for holding back any large particulates such as large iron, dust, suspended matter, impurity.

6.High pressure pump-- Provide the high pressure to RO membrane (at least 2.0 M pa).

7.RO system--RO system is the main part of pure water treatment plant. The RO membrane's desalt rate can reach as
high as 99%, it is capable of removing over 99% of ions, bacteria, particles and 98% of organic.



specification



Configuration list
Configuration Material SPEC Brand
Tank FRP /SS 844/725/1065etc Domestic/Pentair etc.
Value / Auto/Manual Domestic/Pentair etc
Filter quartz sand 20-80 mesh Domestic
  Active Carbon 600-1100Mg/g Domestic
  Resin / Domestic PUROLITE,Rohm Hass
Ro membrance Cellulose acetate membrane,element 1812/2521/2540,4040/8040 etc.. VONTRON/DOW,HYDRANAUTIC/Dongli
Controlling System / PLC ,Maunal,Electric control Domestic,Siemens
Pipe/Value Upvc/ss304/ss316 DN15-DN150 Domestic
Pump SS/Iron/Copper   CNP,Grundfos
Optional Customize the design according to the customer's URS
Application Drinking, cleaning, beverage, industrial and mining enterprises and so on.



Flow chart

0.7 To 1.5Mpa EDI Water Purification System Movable With RO Membrane 0

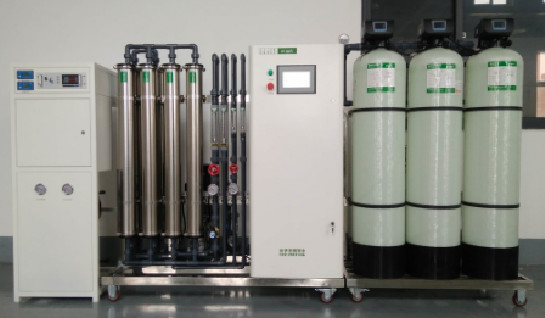

Pictures

0.7 To 1.5Mpa EDI Water Purification System Movable With RO Membrane 10.7 To 1.5Mpa EDI Water Purification System Movable With RO Membrane 2

0.7 To 1.5Mpa EDI Water Purification System Movable With RO Membrane 3
