300Liter Per Hour EDI Water Treatment Plant With RO System Equipment

300Liter Per Hour EDI Water Treatment Plant With RO System Equipment

300Liter EDI Water Treatment Plant

PLC EDI Water Treatment Plant

EDI Water Purifier Plant Machine

Place of Origin:

China

Brand Name:

Leader-t/OEM

Certification:

CE/ISO

Model Number:

LD-EDI-5000L

Contact Us

Request A Quote
Product Details
Product Name:
EDI Water Treatment Plant
Function:
Purification
Type:
Ultra Pure Water Treatment System
Voltage:
380V
Control System:
PLC
Usage:
Laboratory, Medical
Desalination Rate:
99.9%
Capacity:
300L Per Hour
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Wooden/box
Delivery Time
15-30days
Payment Terms
L/C, , T/T, Western Union
Supply Ability
1000sets/month
Product Description



300Liter Per Hour EDI Water Treatment Plant With RO System Equipment





Reverse Osmosis Ro System Water Features



High-precision filter with nano-aperture and optimal water quality, manual/electric control system switching; Equipped with self-checking function, automatic boiling water system no water point, all water, no pressure protection and other safety devices; Set up RO film automatic cleaning and water tank automatic double cleaning, can prolong RO film service life; With water quality online monitoring (conductivity display), flow, pressure online display function; Integrated equipment, simple installation and operation, without special personnel; Equipment failure with automatic alarm function;



The core components (pump, reverse osmosis membrane, electric control system, etc.) are imported/domestic joint venture brands; The frame of the equipment is made of stainless steel, and the low-voltage tube is made of UPVC.



Specification



Configuration list
Configuration Material SPEC Brand
Tank FRP /SS 844/725/1065etc Domestic/Pentair etc.
Value / Auto/Manual Domestic/Pentair etc
Filter quartz sand 20-80 mesh Domestic
Active Carbon 600-1100Mg/g Domestic
Resin   Domestic PUROLITE,Rohm Hass
Ro membrance Cellulose acetate membrane,element 1812/2521/2540,4040/8040 etc.. VONTRON/DOW,HYDRANAUTIC/Dongli
Controlling System / PLC ,Maunal,Electric control Domestic,Siemens
Pipe/Value Upvc/ss304/ss316 DN15-DN150 Domestic
Pump SS/Iron/Copper   CNP,Grundfos
Optional Customize the design according to the customer's URS
Application Drinking, cleaning, beverage, industrial and mining enterprises and so on.




What is ro plant?



RO device is the raw water through precision filtration, granular active sand filtration, activated carbon filtration, through the pressure pump, using the aperture of 1/10000 micron reverse osmosis (RO) membrane to produce relatively high concentration to low concentration. At the same time mixed with a large number of industrial pollutants, fully isolation of heavy metals, bacteria, viruses and other impurities in the water, to achieve drinking water and health standards required by the physical and chemical indicators, clean water is the best choice of output water quality supplement human body. It is the key equipment of pure water plant.



What is EDI?


Combination of electrodialysis and ion exchange technology, through the choice of cationic and anionic membrane of positive and negative ions, the effect of ion exchange resin to the ions in the water under the action of electric field, exchange, realize the ion migration of water in the water, which can realize the depth of the water purification desalination, and through the electrolysis of water hydrogen ion on the resin and hydroxyl ions on packing for continuous regeneration.



Flow chart



300Liter Per Hour EDI Water Treatment Plant With RO System Equipment 0

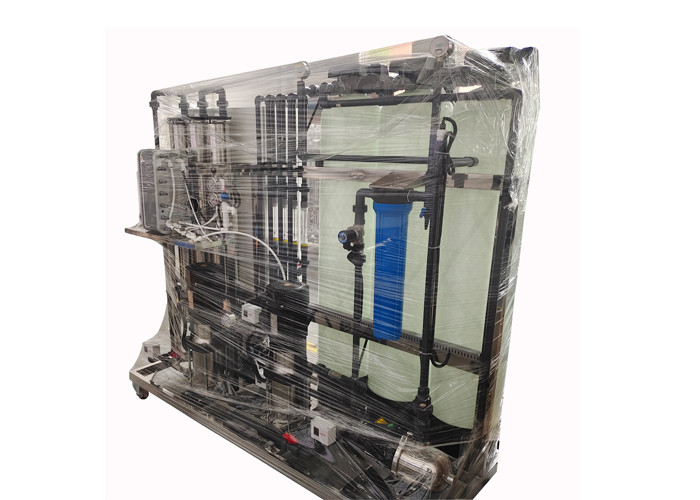

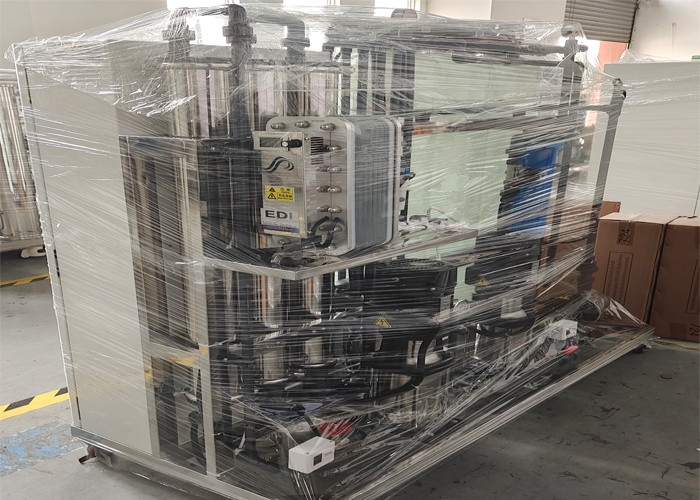

Pictures



300Liter Per Hour EDI Water Treatment Plant With RO System Equipment 1

300Liter Per Hour EDI Water Treatment Plant With RO System Equipment 2300Liter Per Hour EDI Water Treatment Plant With RO System Equipment 3
