Place of Origin:
China
Brand Name:
Leader-t/OEM
Certification:
CE/ISO
Model Number:
LD-1000LPH
Contact Us

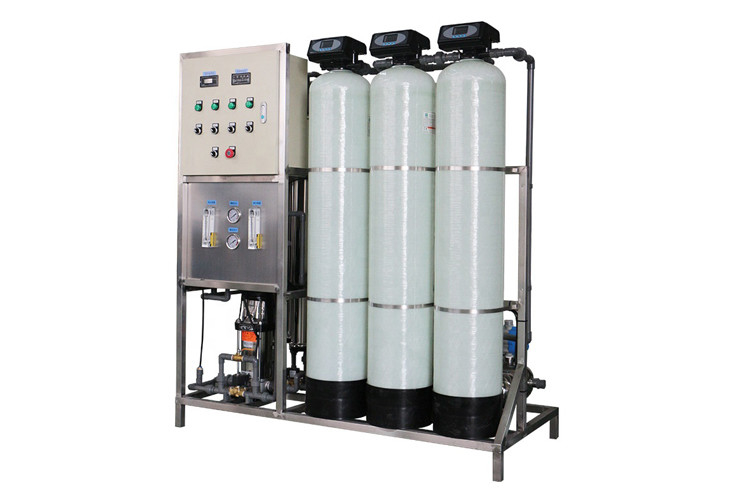

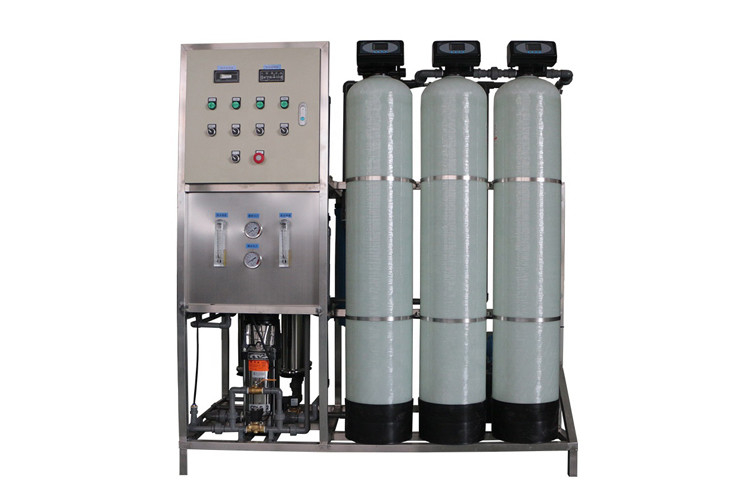

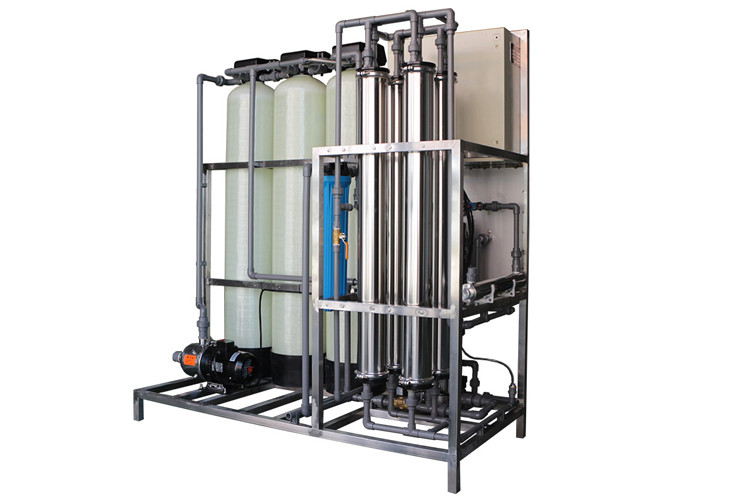

1000L RO Filtration System Reverse Osmosis Water Treatment Machinery
Water Plant Ro System: RO system is raw water through precision filter, granular activated carbon filters, activated carbon filters, compression, and then through the pump pressure, the use of reverse osmosis membrane pore size 1/10000μm make a higher concentration of water into low concentration of water, while the industrial pollutants, heavy metals, bacteria, viruses and other impurities in the water mixed with a large number of full isolation, to achieve the required physical and chemical indicators for drinking and hygiene standards, outputs to clean pure water is the best choice of body replenish water quality. It is key equipment of pure water plant.
Typical Process:
Raw water →raw water pump→ sand filter→ carbon filter→ softener filter→cartridge/security filter→high-pressure pump→ reverse osmosis part→ pure water tank
Specification:
Configuration List | |||
Configuration | Materail | SPEC | Brand |
Tank | FRP/SS | 844/725/1065 etc | Domestic/Pentair etc. |
Valve | / | Auto/Manual | Domestic/Pentair etc. |
Filter | quartz sand | 20-80 mesh | Domestic |
Active Carbon | 600-1100mg/g | Domestic | |
Resin | / | Domestic Purolite,Rohm Hass | |
Ro Membrance | Cellulose acetate membrance element | 1812/2521/2540,4040/8040 etc. | Vontron/Dow, Hydranautic/Dongli |
Controlling System | / | PLC,Manual,Electric control | Domestic, Siemens |
Pipe/Valve | Upvc/ss304/ss316 | DN15-DN150 | Domestic |
Pump | SS/Iron/Copper | / | CNP,Grunsfos |
Optional | Customize the design according to the customer's URS | ||
Application | Drinking, cleaning, beverage, industrial and mining enterprises and so on. |
Package:
Company Pictures:
