PLC Control Ro Water Treatment System 200L For Drinking Water

PLC Control Ro Water Treatment System 200L For Drinking Water

PLC Control Ro Water Treatment System

200L Ro Water Treatment System

ISO Drinking Water Ro Plant

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
RO Water Treatment Equipment Water Treatment Machine
Core Components::
Pump, Motor, PLC
Quartz Sand/active Carbon/softener
Reverse Osmosis
Ro Membrane:
After-sales Service Provided:
Video Technical Support, Field Installation, Commissioning And Training, Engineers Available To Service Machinery Overseas
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Wooden /Box
Delivery Time
5-8 Days
Payment Terms
L/C, T/T, Western Union
Supply Ability
1000 Sets /Month
Product Description

Ro Water Treatment System/Plant For Drinking Water

First stage pretreatment

The use of multi-medium quartz sand filters, main purpose is to remove the water contains sediment, manganese, rust, colloid material, mechanical impurities, suspended solids and other particles in the above 20UM of substances hazardous to health.

Second stage pretreatment

Activated carbon filters used to remove the pigment in the water, smell, a large number of chemical and biological organisms, reducing the residual value of water and pesticide pollution and other harmful pollutants.

Third stage pretreatment

Cationic resin used for water softening, primarily to remove hardness of water. So as to effectively prevent the reverse osmosis membrane fouling. System can automatically recoil, and so is red.

Fourth stage pretreatment

Particle size in water to remove fine particles, sand filters can remove very small colloidal particles in the water, so that the turbidity reached 1 degree.


RO system

The core equipment of water pump is imported and the membrane film is imported from Hydranautics in America. It is equipped with full set of


clean unit. It has the features of simple structure, convenient operation and high technological level.

The operating pressure is applied on the inlet (concentrated solution) side to overcome the natural osmotic pressure. When the operating
pressure higher than the natural osmotic pressure is removed from the concentrated solution side, the flow direction of the natural osmotic water
molecules will be reversed. The water in the inlet (concentrated solution) will pass through the reverse osmosis membrane to become the
purification water produced on the dilute solution side.Reverse osmosis equipment can stop all the soluble salt and organic molecular weight
greater than 100, but allowing water molecules through the reverse osmosis composite membrane desalting rate is generally greater than 98%,
they are widely used in industrial pure water preparation and electronic ultrapure water, drinking pure water production, such as boiler feed water
process, using reverse osmosis equipment before ion exchange can sharply decreasing operation of water and wastewater emissions.

1.Can run and produce water continuously, highly automatic

2.No need chemical to regeneration,easy operation and maintainance

3.RO system uses first-line membrane

4.Automatic switch on when lack of water,and switch off when no water or full of water

5.RO membrane auto wash and reduce the pollution speed.

6.Low-pressure switch protects high-pressure pump from damage cause by water supply stops.

7.Production water condutivity meter monitors water quality online contionuosly.

8.Input water and dense water pressure meters, monitor the RO differential pressure and remind the time of washing.

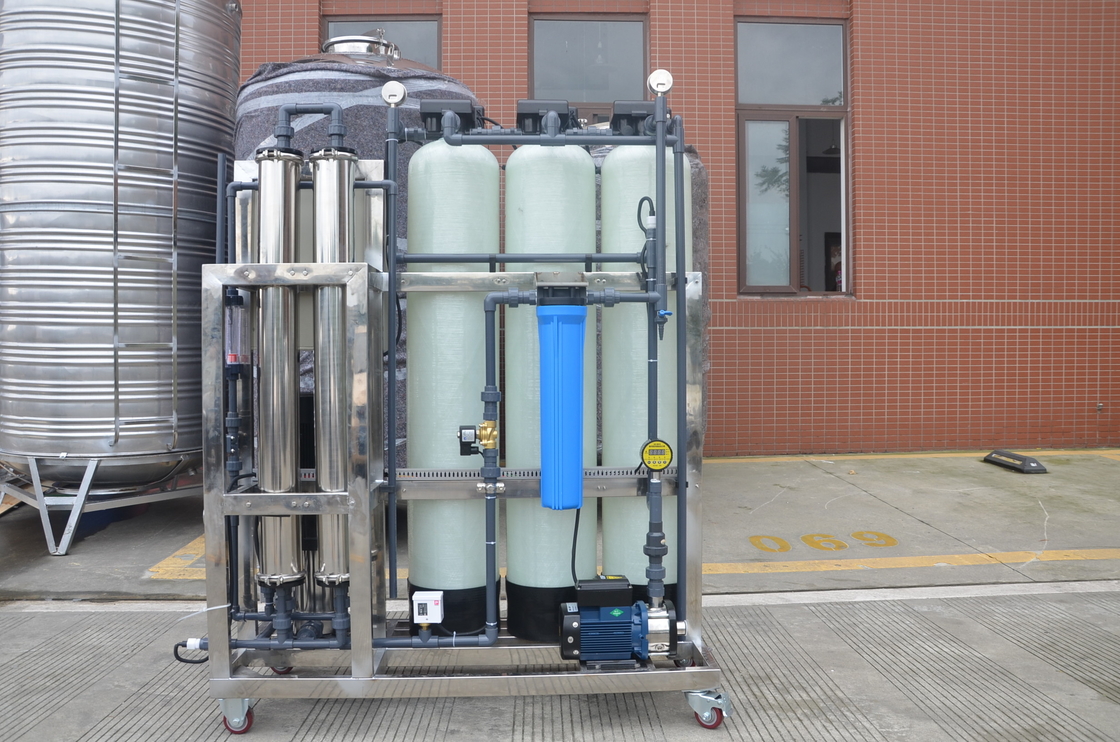

PLC Control Ro Water Treatment System 200L For Drinking Water 0

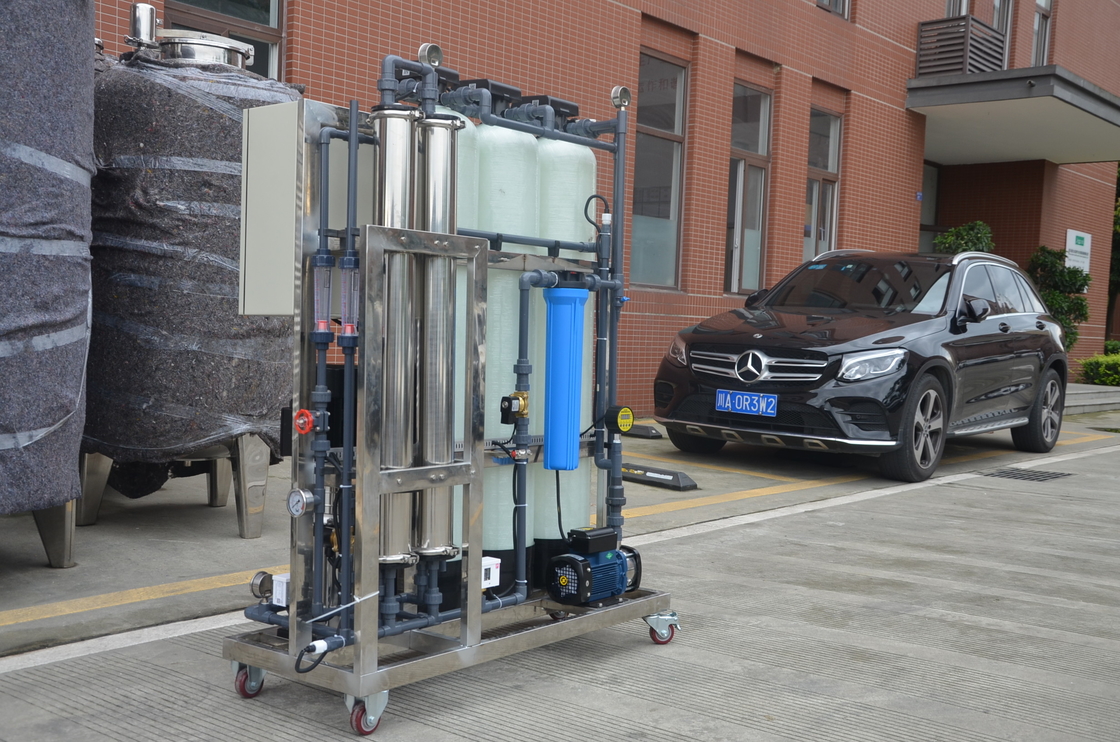

PLC Control Ro Water Treatment System 200L For Drinking Water 1

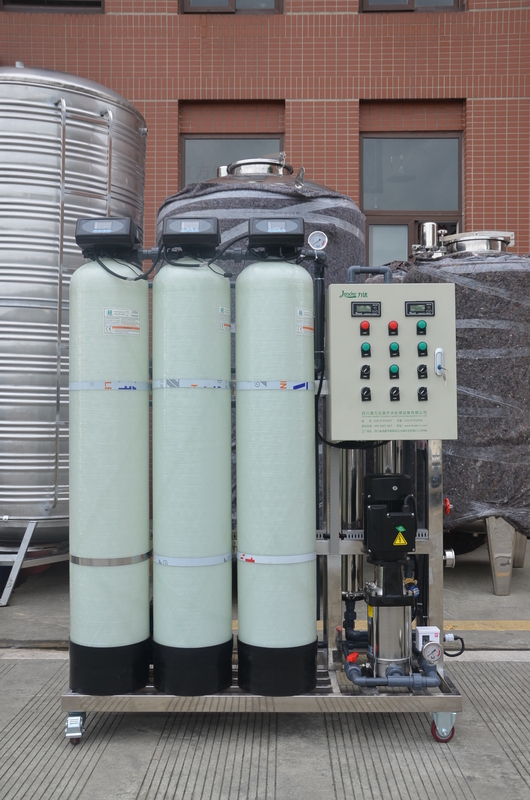

PLC Control Ro Water Treatment System 200L For Drinking Water 2
