Place of Origin:
China
Brand Name:
Leader-t/OEM
Certification:
CE/ISO
Model Number:
LD-1000L
Contact Us
| Configuration list | |||
| Configuration | Material | SPEC | Brand |
| Tank | FRP /SS | 844/725/1065etc | Domestic/Pentair etc. |
| Value | / | Auto/Manual | Domestic/Pentair etc |
| Filter | quartz sand | 20-80 mesh | Domestic |
| Active Carbon | 600-1100Mg/g | Domestic | |
| Resin | / | Domestic PUROLITE,Rohm Hass | |
| Ro membrance | Cellulose acetate membrane,element | 1812/2521/2540,4040/8040 etc.. | VONTRON/DOW,HYDRANAUTIC/Dongli |
| Controlling System | / | PLC ,Maunal,Electric control | Domestic,Siemens |
| Pipe/Value | Upvc/ss304/ss316 | DN15-DN150 | Domestic |
| Pump | SS/Iron/Copper | CNP,Grundfos | |
| Optional | Customize the design according to the customer's URS | ||
| Application | Drinking, cleaning, beverage, industrial and mining enterprises and so on. | ||
RO system is widely used in water treatment, purification for tap water, well water, underground water, borehole salty water, brackish water and
seawater, pure water and ultra-pure water production. Application area such as, food processing, bottled drinking water, home use drinking water,
power stations, electronic industries, cosmetics production, pharmaceuticals manufactories, and medical treatment(such as hemodialysis). It is a
key equipment for pure water plant and ultrapure water equipment.
Here's the specification for standard machine
l Inlet water standard:
1. SDI(15 minutes)<5
2. Turbidity <1.0NTU
3. Fe content <0.05ppm
4. free chloride(mg/l) <0.1
5. PH 2-11
6. temperature 4-45°C
7. desalination rate 95-99%
8. permeate water PH 5-7
9. recovery rate 60-80%

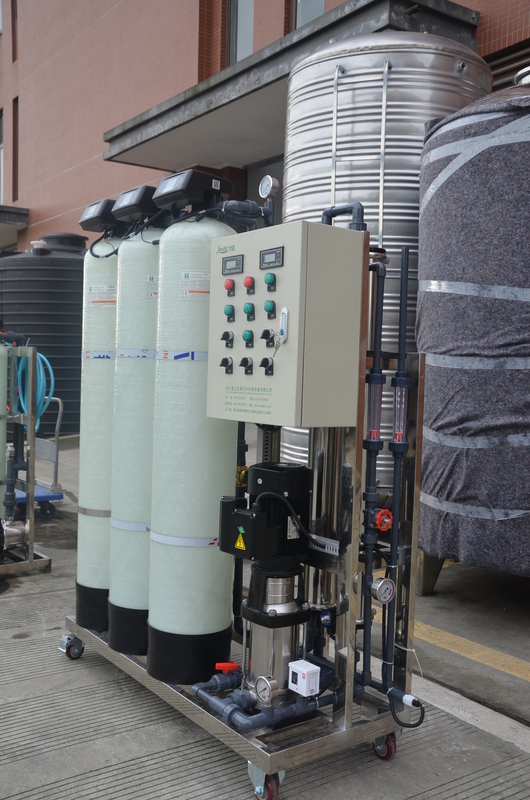

l RO system configuration:
1. 98% desalination RO membrane
2. high pressure impeller pump (with matching motor)
3. inlet water electromagnetic valve
4. flushing electromagnetic valve
5. 5 micron precision filter
6. S.S. or FRP membrane housing
7. paint or S.S machine frame
8. concentration water pressure gage ,flow meter,conductivity meter and other supervisor meter
9. All in one RO system contains manual sand filter, carbon filter, and water softeners
