Upvc Pipe Ro Drinking Water Treatment Filters DN15 DN150

Upvc Pipe Ro Drinking Water Treatment Filters DN15 DN150

OEM Ro Drinking Water Treatment Filters

Upvc Pipe Water Treatment Filters

DN15 Drinking Water Treatment

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Ater Treatment Filters Ro Plant Drinking Water Treatment Machinery Plant With Price
5000L PH
Core Components::
Pump, Motor, PLC
Quartz Sand/active Carbon/softener
Reverse Osmosis
Ro Membrane:
After-sales Service Provided:
Online Support, Video Technical Support, Field Installation, Commissioning And Training, Engineers Available To Service Machinery Overseas
PLC+Touch Screen
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Wooden /Box
Delivery Time
5-8 Days
Payment Terms
L/C, T/T, Western Union
Supply Ability
1000 Sets /Month
Product Description
Water Treatment Filters Ro Plant Drinking Water Treatment Machinery Plant with Price
Configuration list
Configuration Material SPEC Brand
Tank FRP /SS 844/725/1065etc Domestic/Pentair etc.
Value / Auto/Manual Domestic/Pentair etc
Filter quartz sand 20-80 mesh Domestic
  Active Carbon 600-1100Mg/g Domestic
  Resin / Domestic PUROLITE,Rohm Hass
Ro membrance Cellulose acetate membrane,element 1812/2521/2540,4040/8040 etc.. VONTRON/DOW,HYDRANAUTIC/Dongli
Controlling System / PLC ,Maunal,Electric control Domestic,Siemens
Pipe/Value Upvc/ss304/ss316 DN15-DN150 Domestic
Pump SS/Iron/Copper   CNP,Grundfos
Optional Customize the design according to the customer's URS
Application Drinking, cleaning, beverage, industrial and mining enterprises and so on.
Principle of reverse osmosis water treatment

Reverse osmosis water treatment is a kind of with the aid of choice through (through) the skill of membrane will return to pressure as the driving
force for a membrane separation technology, when system and the pressure is greater than in the aqueous solution of osmotic pressure, the
water molecules through the membrane unceasingly, after producing water flows into the central tube, and then out in the end the impurities in the
water, such as ion, organic matters, such as bacteria, viruses, interception on the inlet side of the membrane, and then in the thick water outflow
water end, so as to achieve separation and purification.

The operating pressure is applied on the inlet (concentrated solution) side to overcome the natural osmotic pressure. When the operating
pressure higher than the natural osmotic pressure is removed from the concentrated solution side, the flow direction of the natural osmotic water
molecules will be reversed. The water in the inlet (concentrated solution) will pass through the reverse osmosis membrane to become the
purification water produced on the dilute solution side.Reverse osmosis equipment can stop all the soluble salt and organic molecular weight
greater than 100, but allowing water molecules through the reverse osmosis composite membrane desalting rate is generally greater than 98%,
they are widely used in industrial pure water preparation and electronic ultrapure water, drinking pure water production, such as boiler feed water
process, using reverse osmosis equipment before ion exchange can sharply decreasing operation of water and wastewater emissions.

RO system is widely used in water treatment, purification for tap water, well water, underground water, borehole salty water, brackish water and


seawater, pure water and ultra-pure water production. Application area such as, food processing, bottled drinking water, home use drinking water,


power stations, electronic industries, cosmetics production, pharmaceuticals manufactories, and medical treatment(such as hemodialysis). It is a


key equipment for pure water plant and ultrapure water equipment.


Here's the specification for standard machine
l Inlet water standard:
1. SDI(15 minutes)<5
2. Turbidity <1.0NTU
3. Fe content <0.05ppm
4. free chloride(mg/l) <0.1
5. PH 2-11
6. temperature 4-45°C
7. desalination rate 95-99%
8. permeate water PH 5-7
9. recovery rate 60-80%
l RO system configuration:
1. 98% desalination RO membrane
2. high pressure impeller pump (with matching motor)
3. inlet water electromagnetic valve
4. flushing electromagnetic valve
5. 5 micron precision filter
6. S.S. or FRP membrane housing
7. paint or S.S machine frame
8. concentration water pressure gage ,flow meter,conductivity meter and other supervisor meter
9. All in one RO system contains manual sand filter, carbon filter, and water softeners

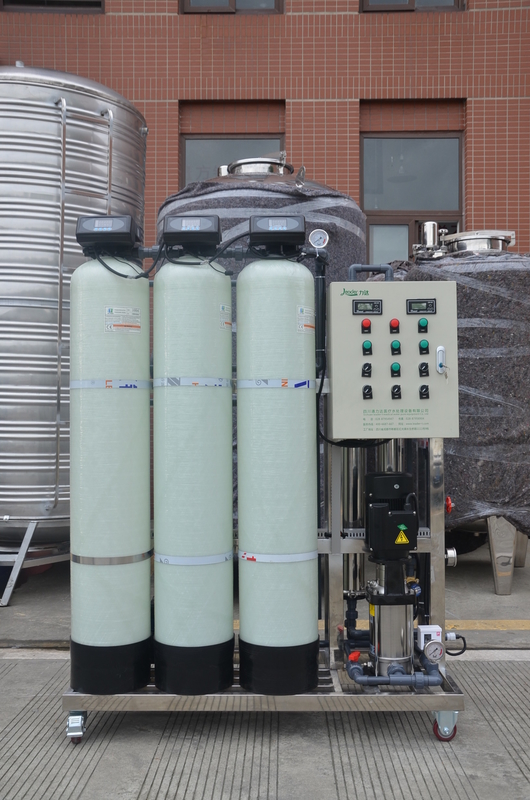

Upvc Pipe Ro Drinking Water Treatment Filters DN15 DN150 0

Upvc Pipe Ro Drinking Water Treatment Filters DN15 DN150 1

Upvc Pipe Ro Drinking Water Treatment Filters DN15 DN150 2
