Place of Origin:
China
Brand Name:
Leader-t/OEM
Certification:
CE/ISO
Model Number:
LD-5TPH
Contact Us
RO main component list:
1.Standard back flushing pump(with electric machine)/inlet solenoid valve
2.Back flushing dosing device/5μm precision filter/integrated membrane housing
3. DOW membrane/ Hydraulics
4.Automatic chemical self washing mechanism/baking finish or S.S frame
5.Supervisory meters,such as concentrated water pressure gauge,flow meter,conductivity apparatus
6.Automatic control
Design basic data (For reference only,exact specification is subject to raw water and product):
1.Inlet water SDI(15 MINS):<5
2.Inlet water TURBIDITY:<1.0NTU
3.Inlet water Fe:<0.005ppm
4.Inlet water chlorine:(mg/l)<0.1
5.Inlet PH:2~11
6.Inlet water temperature:4~45℃
7.Desalination rate:95~99%
8.Outlet water PH:5~7
9.Output water meet the WHO drinking standard
Main component list:
1.Standard back flushing pump(with electric machine)/High pressure pump(CNP/NANYUAN BRAND);
2.Security filter /5μm precision filter/integrated membrane housing
3.DOW/Hydraulics/CSM membranes as customer’s request;
4.Automatic chemical self washing mechanism/baking finish or S.S frame
5.Supervisory meters,such as concentrated water pressure gauge,flow meter,conductivity apparatus
6.Automatic or manual control(RUNXIN Valves)

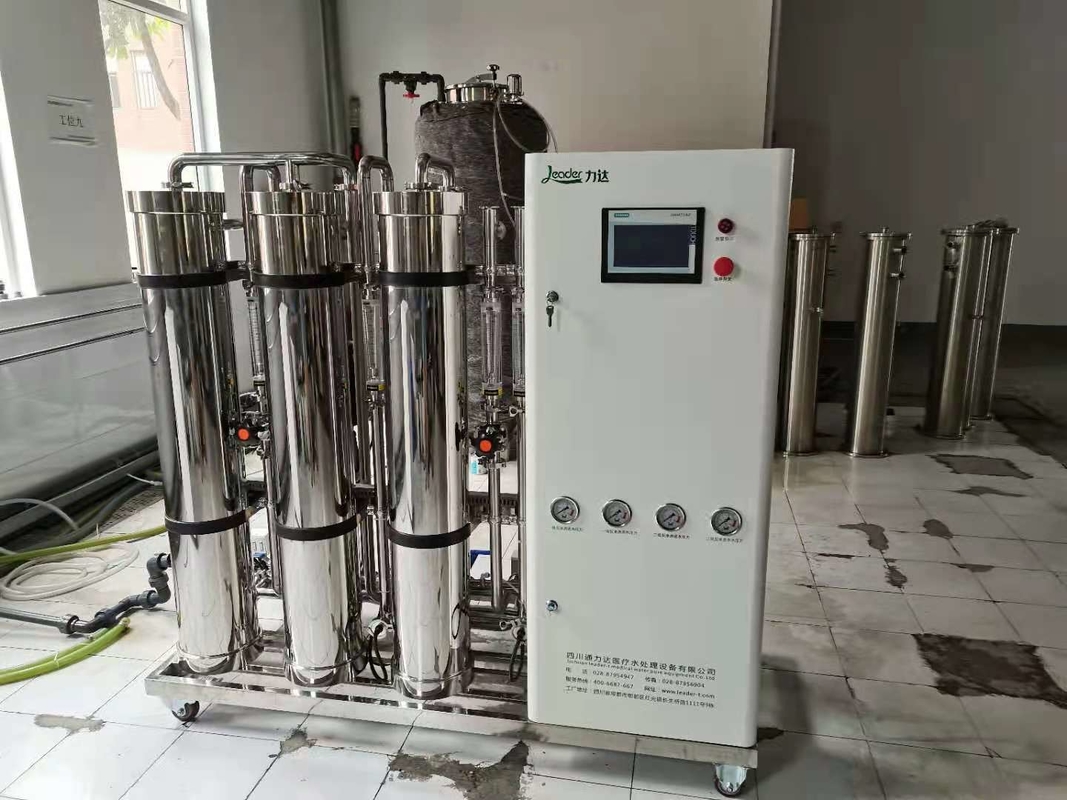

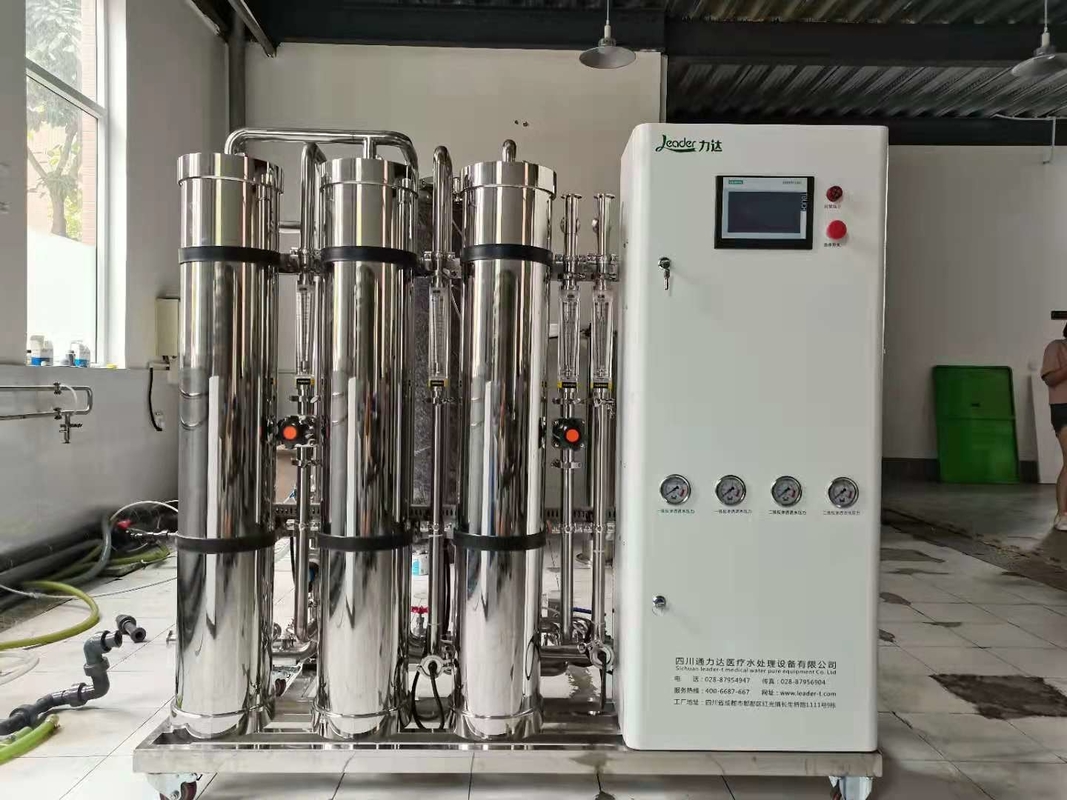

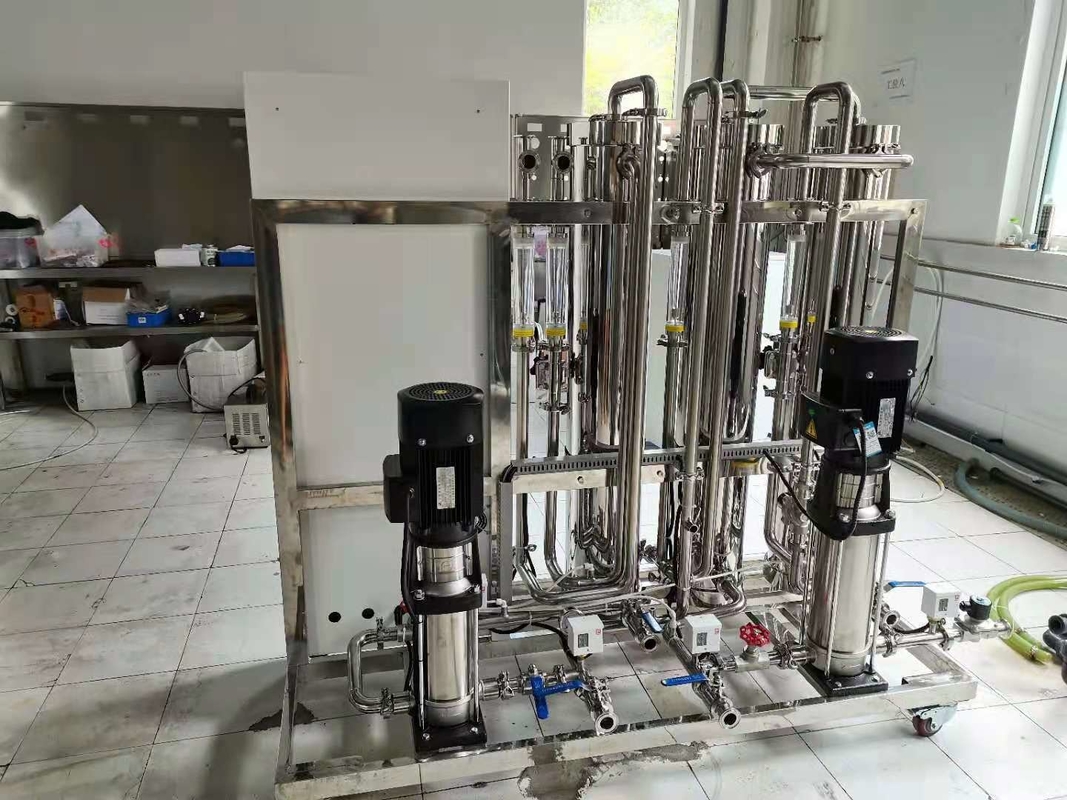

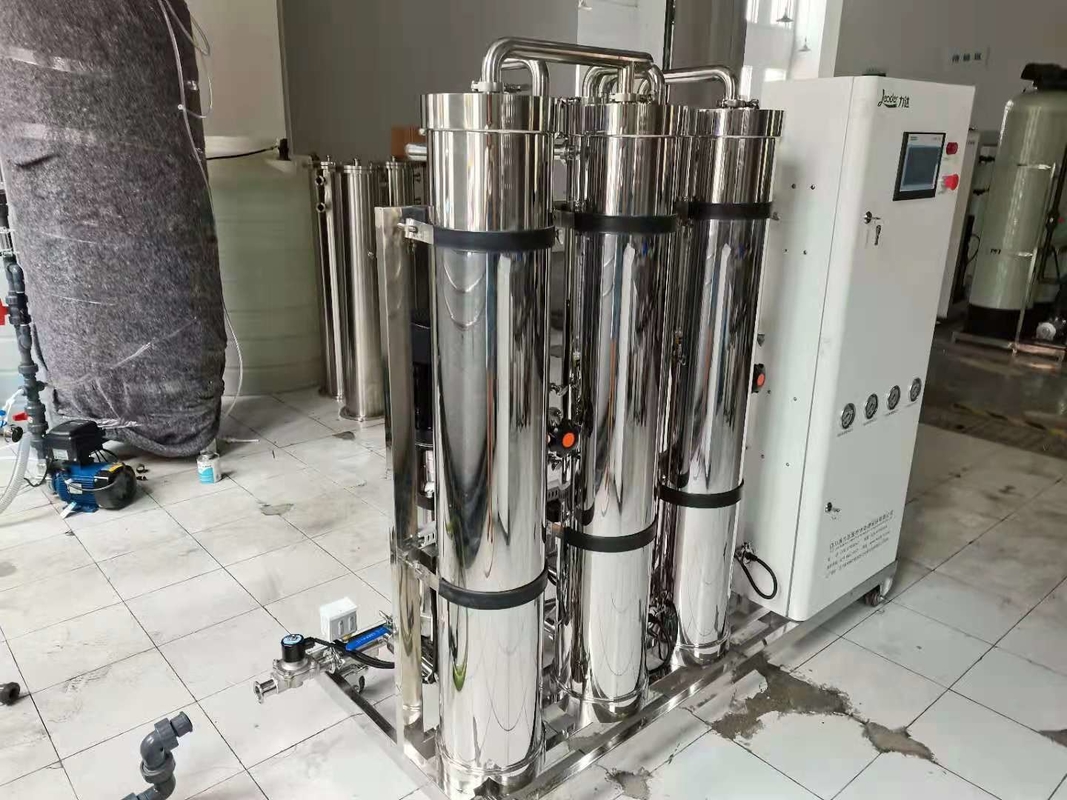

Pictures
