Place of Origin:
China
Brand Name:
Leader-t/OEM
Certification:
CE/ISO
Model Number:
LD-UF
Contact Us

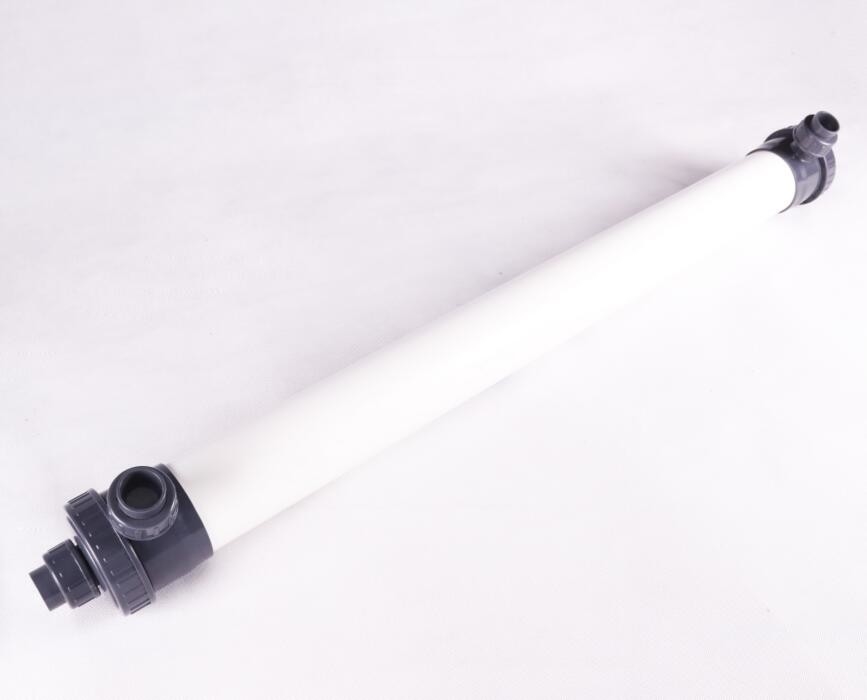

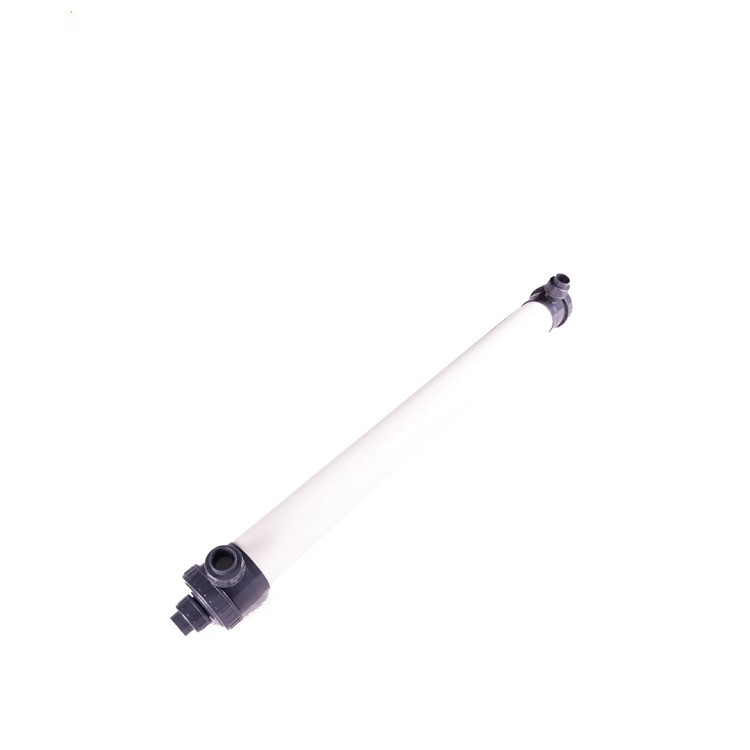

UF 2880/2860 membrane for water filtration
Specifications
| Module | UF-4021 | UF-4040 | UF-8040 |
| Size (mm) | Ø101×533.4 | Ø101×1016 | Ø201.9×1016 |
| Module type | Inside-out | Inside-out | Inside-out |
| Shell and seal materials | PVC,epoxy resins | PVC,epoxy resins | PVC,epoxy resins |
| Membrane Material | PAN | PAN | PAN |
| Max operating pressure psi(Mpa) | 43(0.3) | 43(0.3) | 43(0.3) |
| Suggest operating pressure psi(Mpa) | <15(0.1) | <15(0.1) | <15(0.1) |
| Max trans-membrane pressure psi(Mpa) | 29(0.2) | 29(0.2) | 29(0.2) |
| Operating temperature | 5~40℃ | 5~40℃ | 5~40℃ |
| Effective membrane area | 4m2 | 2m2 | 18m2 |
| Design flux | 40-150L/m2/h | 40-150L/m2/h | 40-150L/m2/h |
Main Features
-Save 50% occupying area compared with traditional system.
-Relative high MLSS value(smaller than 15g/L)and long residue time for sludge (smaller than 60days).
-Stable producing water quality for different inlet water.
-Less sludge residue reduces cost for sludge treatment.
-Low energy consumption, simple cleaning and low operation cost.
-Simple installation and easy operation, the whole set can be placed underground with auto-control
Application Range
1. Hotels, restaurants, sanitariums, hospitals.
2. Home communities, villages and towns
3. Stations, airports, harbors,
4. Factories,mines, troops, scenic spots,
5. Industrial organic sewage similar to municipal sewage
Pictures
