UF Membrane Filter Water Treatment Plant RO System Accessories 250L-10000L

UF Membrane Filter Water Treatment Plant RO System Accessories 250L-10000L

10000L RO System Accessories

10000L RO UF Membrane Filter

250L UF Membrane Filter

Place of Origin:

China

Brand Name:

Leader-t/OEM

Certification:

CE/ISO

Model Number:

LD-UF

Contact Us

Request A Quote
Product Details
Product Name:
UF Membrane
Keywords:
UF
Gallons Per Day:
UF-4021
Certification:
CE,ISO9001,ISO 14001
Application:
Commercial / Industrial Water System
Testing PH Solution:
Water Filter Parts
Capacity:
250L~10000L
Usage:
Pure Water Treatment System
Payment & Shipping Terms
Minimum Order Quantity
1SET
Price
Negotiable
Packaging Details
Wooden /Box
Delivery Time
5-8 Days
Payment Terms
L/C, T/T, Western Union
Supply Ability
1000 Sets /Month
Product Description

UF Membrane Filter Quality Water Treatment Plant RO System Accessories

UF membrane features
(1) Good hydrophilicity
(2) Bursting strength: 1.3MPA
(3) Large flux with 90% fibers porosity
(4) Strong antioxidant ability
Membrane feature
(1) High interception rate: 99.9999%
(2) Max.inlet pressure: 0.2Mpa
(3) MWCO: 6000Dalton
(4) Application: Pharmaceutical industry to remove pyrogen,endotoxin
Applications: Natural water/rainwater purification, food and beverage water purification, reclaimed water reuse treatment, municipal sewage engineering, pretreatment of reverse osmosis, nanofiltration.

Main Features
-Save 50% occupying area compared with traditional system.
-Relative high MLSS value(smaller than 15g/L)and long residue time for sludge (smaller than 60days).
-Stable producing water quality for different inlet water.
-Less sludge residue reduces cost for sludge treatment.
-Low energy consumption, simple cleaning and low operation cost.
-Simple installation and easy operation, the whole set can be placed underground with auto-control



Specifications

Module UF-4021 UF-4040 UF-8040
Size (mm) Ø101×533.4 Ø101×1016 Ø201.9×1016
Module type Inside-out Inside-out Inside-out
Shell and seal materials PVC,epoxy resins PVC,epoxy resins PVC,epoxy resins
Membrane Material PAN PAN PAN
Max operating pressure psi(Mpa) 43(0.3) 43(0.3) 43(0.3)
Suggest operating pressure psi(Mpa) <15(0.1) <15(0.1) <15(0.1)
Max trans-membrane pressure psi(Mpa) 29(0.2) 29(0.2) 29(0.2)
Operating temperature 5~40℃ 5~40℃ 5~40℃
Effective membrane area 4m2 2m2 18m2
Design flux 40-150L/m2/h 40-150L/m2/h 40-150L/m2/h


Pictures

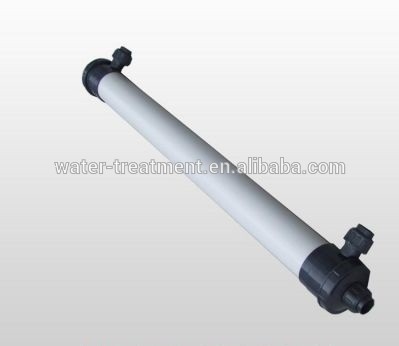

UF Membrane Filter Water Treatment Plant RO System Accessories 250L-10000L 0

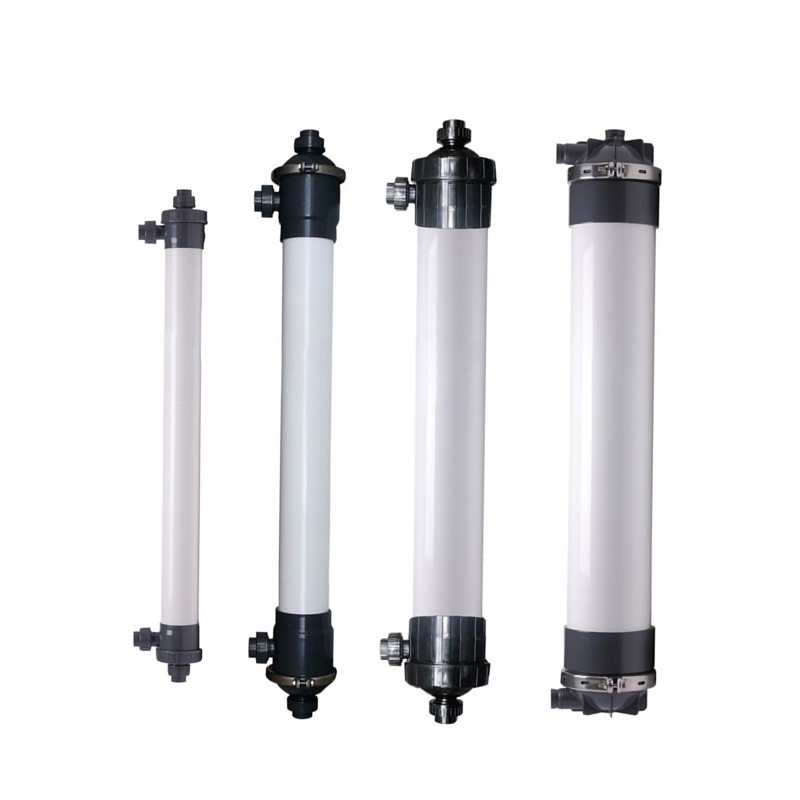

UF Membrane Filter Water Treatment Plant RO System Accessories 250L-10000L 1

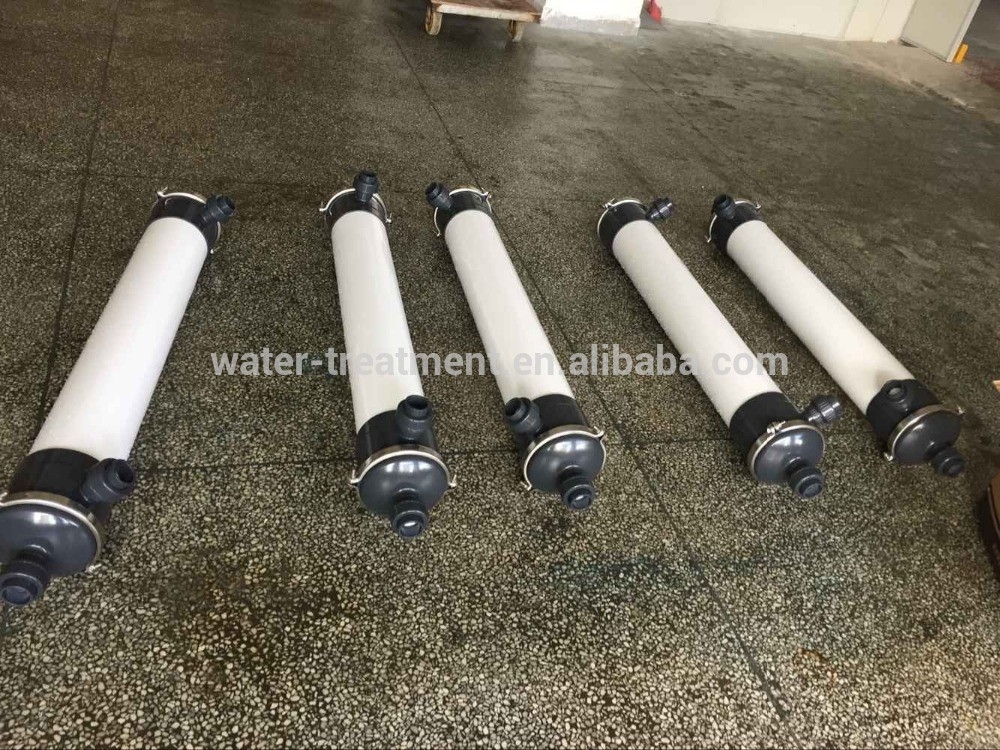

UF Membrane Filter Water Treatment Plant RO System Accessories 250L-10000L 2
