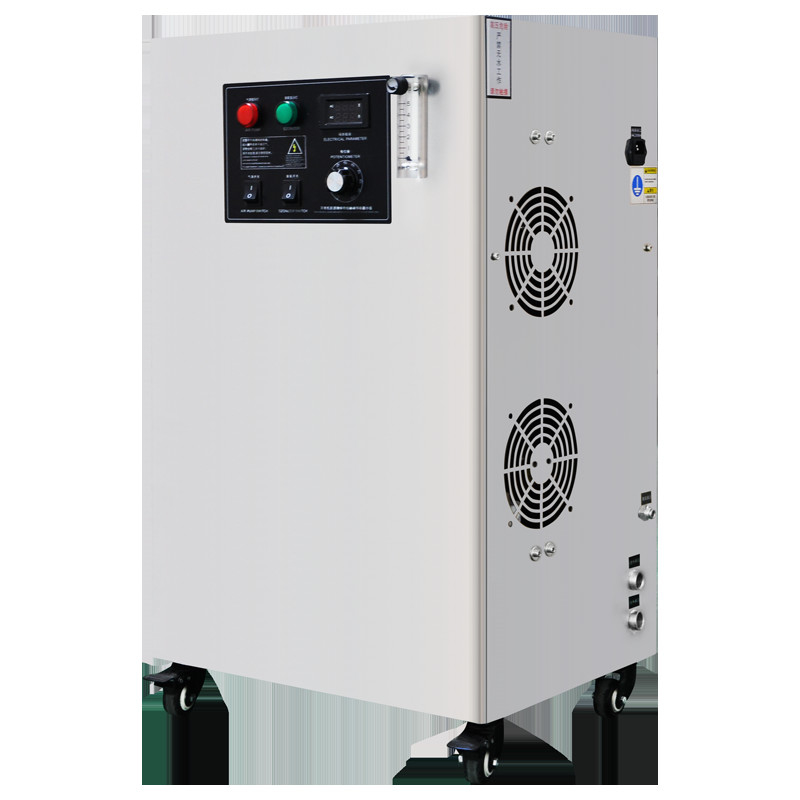

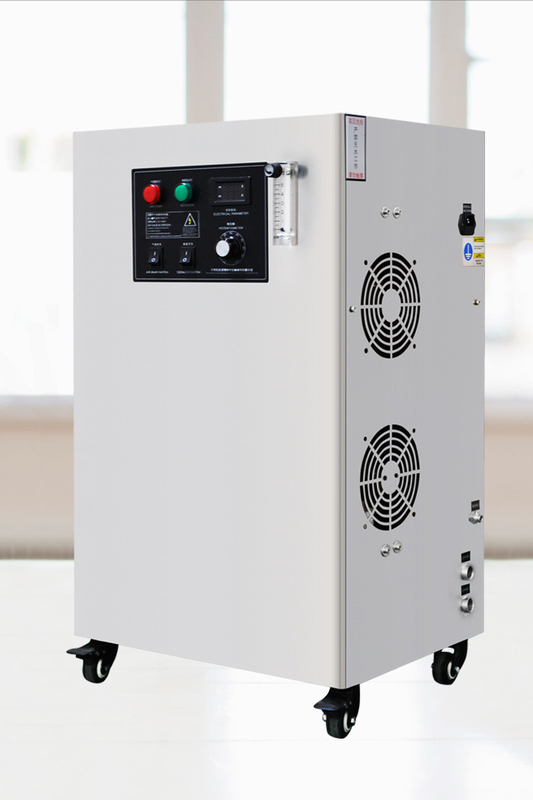

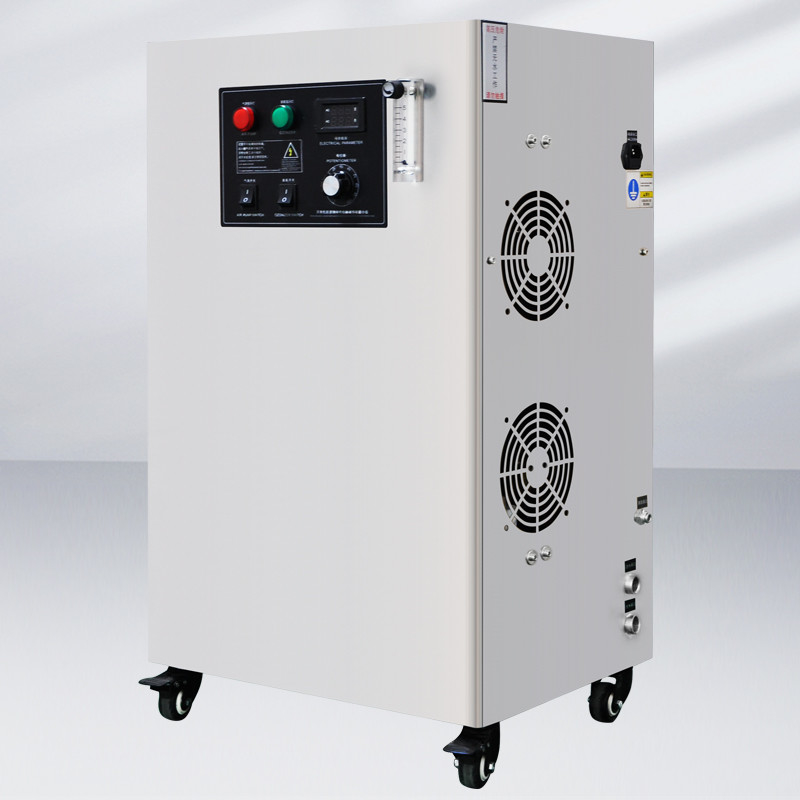

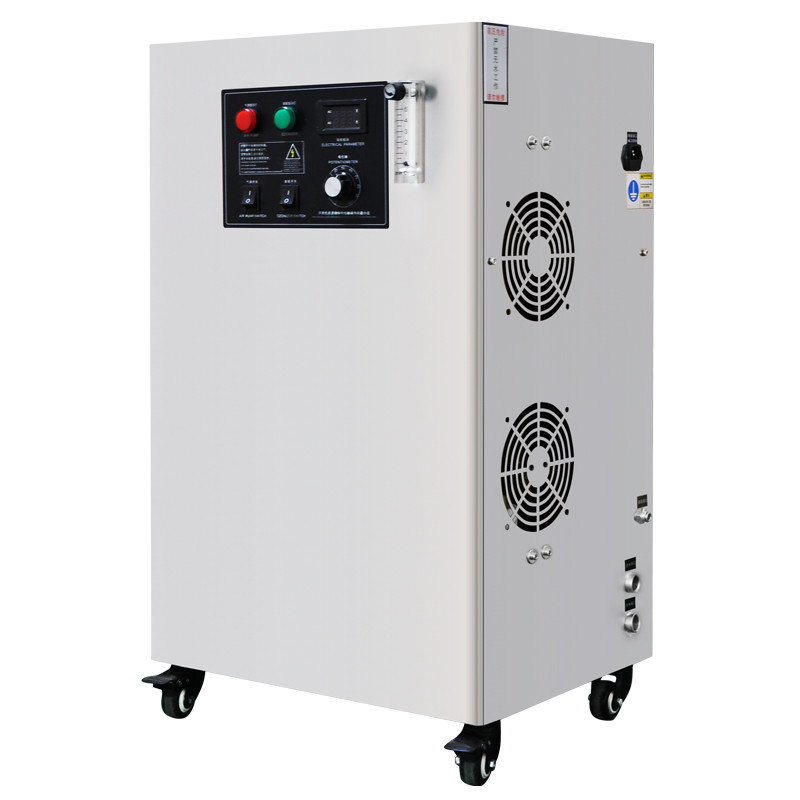

Large Ozone Generator With 100G 200G 300G For Water Treatment
Specification
| Model NO. | LD-5G | LD-7G | LD-10G | LD-15G | LD-20G | LD-30G | LD-40G |
| Ozone production(g/h) | 5 | 7 | 10 | 15 | 20 | 30 | 40 |
| Ozone concentration(mg/L) | 10-15mg/L | 15-20mg/L | |||||
| Cooling type | Air cooling | ||||||
| Power(W) | 80 | 100 | 200 | 250 | 320 | 450 | 500 |
| Power supply | AC 220V/50HZ (60hz can be customized) | ||||||
| Length X Width X Height(mm) | 320*250*520 | 380*260*718 | 420*300*800 | 450*320*800 | |||
| Intake air Temp.(℃) | ≤20 | ||||||
| Air source dew point(℃) | ≤45 | ||||||
| Working environment |
Ambient Temp.≤45℃,RH ≤80%.It is strictly prohibited to use in inflammable and explosive places.
|
||||||
| Applicable space(m³) | 150-250 | 210-350 | 300-500 | 450-800 | 600-900 | 1000-1800 | |
1. Corona discharge technology ozone generator, with high ozone concentration, stable ozone output.2. Could be connected to self-oxygen
3. Design with inner PSA oxygen generator.
4. Water cooling system, excellent heat release, high ozone concentration.
5. Adjustable ozone output.
6. Hermal-shutdown and over voltage protection.
7. Easy operation; ozone system switch and air pump switch.
8. Widely used in water treatment plant.
Products Description
The powerful air-cooled ozone generator adopts a high temperature resistant HQG non-glass structure discharge unit. The structure is extremely stable, has a long service life, has high discharge efficiency, and is not easily damaged by returning water;
Composition:
generator unit, stainless steel casing, ammeter, Taiwan-made 150 fan, gas flow meter, ozone adjustment knob, etc.
Features:
No ozone alarm, no automatic shutdown, return to normal after ozone, this function indicates whether the discharge unit is working normally.
Backwater alarm. Stop using oxygen or dry air to dry and turn on the machine. Stop the alarm for 3 seconds after starting up.
Over-temperature alarm and shutdown protection, when the temperature is below 50 degrees, it will automatically resume work and stop the alarm.
