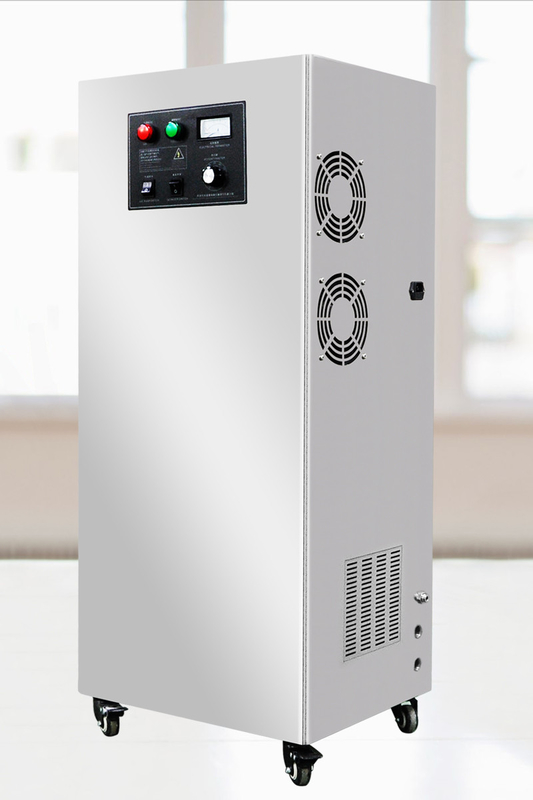

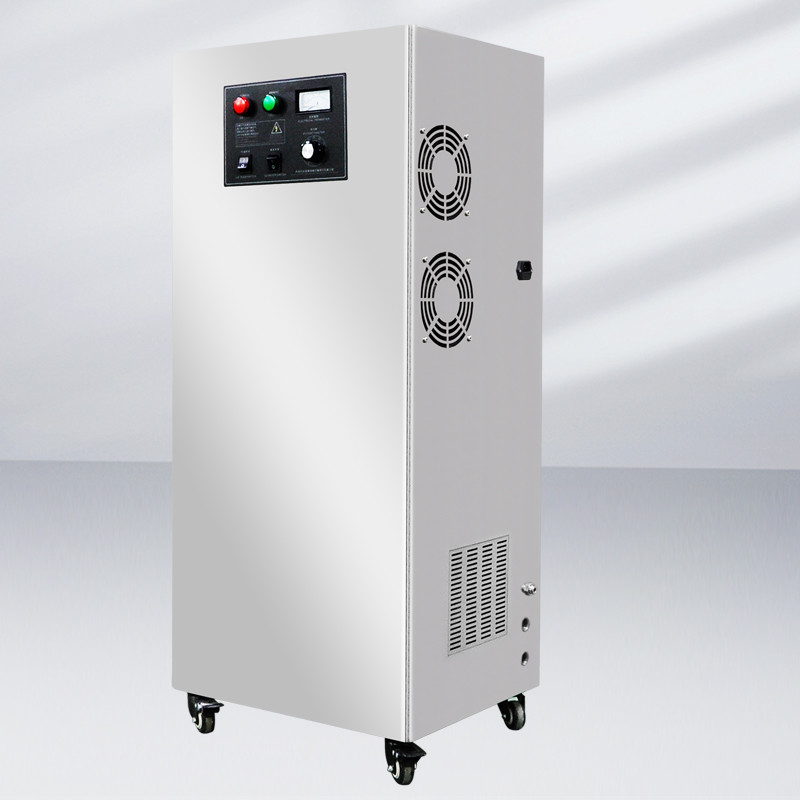

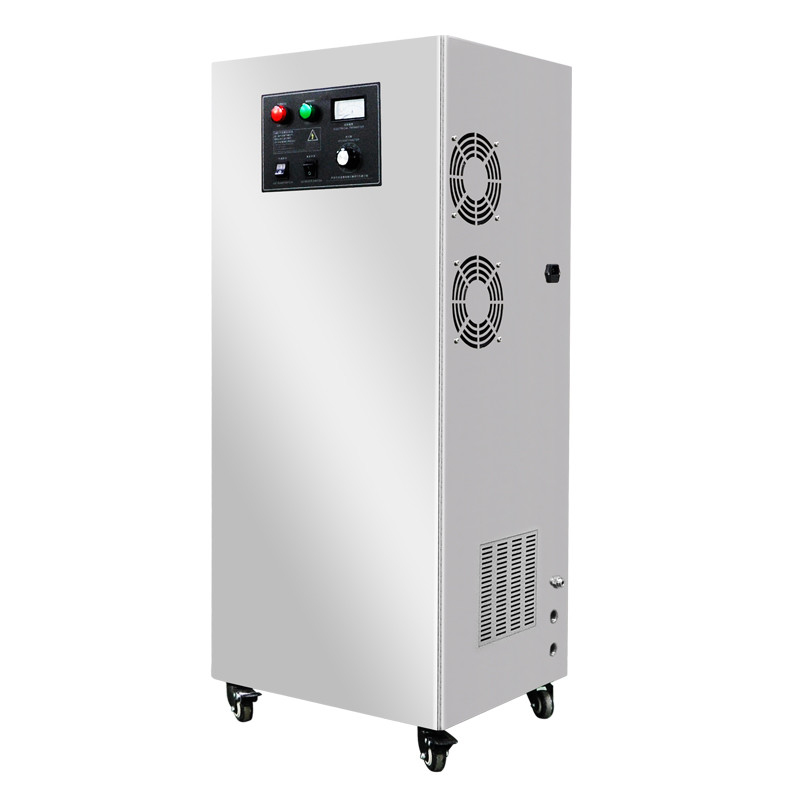

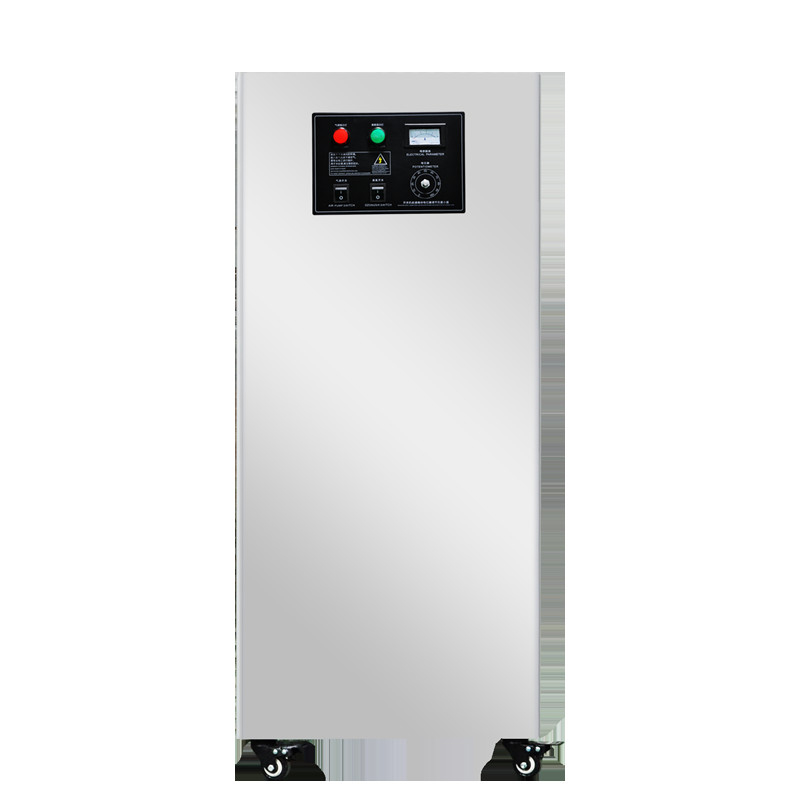

Water Treatment Ozone Generator Up To 40g Water Ozone Generator
Ozone Functions:
Sterilization: can quickly kill a variety of bacteria, viruses, and no secondary pollution
Detoxification: effectively remove pesticide residues in food
Deodorant: to remove the smell of musty, smoke, smoke flavor, water stains, garbage
Oxygen: improve the oxygen content of the air and water
Health: clean air, promote human metabolism
Preservation: fruits, vegetables and eggs fresh
Specification
Model NO. | LD-5G | LD-7G | LD-10G | LD-15G | LD-20G | LD-30G | LD-40G |
Ozone production(g/h) | 5 | 7 | 10 | 15 | 20 | 30 | 40 |
Ozone concentration(mg/L) | 10-15mg/L | 15-20mg/L | |||||
Cooling type | Air cooling | ||||||
Power(W) | 80 | 100 | 200 | 250 | 320 | 450 | 500 |
Power supply | AC 220V/50HZ (60hz can be customized) | ||||||
Length X Width X Height(mm) | 320*250*520 | 380*260*718 | 420*300*800 | 450*320*800 | |||
Intake air Temp.(℃) | ≤20 | ||||||
Air source dew point(℃) | ≤45 | ||||||
Working environment |
Ambient Temp.≤45℃,RH ≤80%.It is strictly prohibited to use in inflammable and explosive places.
|
||||||
Applicable space(m³) | 150-250 | 210-350 | 300-500 | 450-800 | 600-900 | 1000-1800 | |
Use scope
Food processing workshop sterilization, food processing equipment disinfection, cold storage disinfection, production workshop air sterilization purification, fruits and vegetables processing, storage and mouldproof preservation, mineral water quality and the production water sterilization containers, packages, production tools such as disinfection.
The product requirements
1. The component of product: ozone generator units, ozone power, pump, stainless steel shell, ammeter, Japan150 fan, accused of device.
2. Product features: intelligent titanium take off quartz tube structure ozone generator, long life, high concentration ozone design, whose power, volume is small, than similar products by air cooled, timing work.
3. Product function: thermal outage protection, thermal performance is good, temperature rise slowly.
