Place of Origin:
China
Brand Name:
Leader-t/OEM
Certification:
CE/ISO
Model Number:
LD
Contact Us
15g Ozone Generator For Water Treatment Water Ozone Generator
Specification
Model NO. | LD-5G | LD-7G | LD-10G | LD-15G | LD-20G | LD-30G | LD-40G |
Ozone production(g/h) | 5 | 7 | 10 | 15 | 20 | 30 | 40 |
Ozone concentration(mg/L) | 10-15mg/L | 15-20mg/L | |||||
Cooling type | Air cooling | ||||||
Power(W) | 80 | 100 | 200 | 250 | 320 | 450 | 500 |
Power supply | AC 220V/50HZ (60hz can be customized) | ||||||
Length X Width X Height(mm) | 320*250*520 | 380*260*718 | 420*300*800 | 450*320*800 | |||
Intake air Temp.(℃) | ≤20 | ||||||
Air source dew point(℃) | ≤45 | ||||||
Working environment |
Ambient Temp.≤45℃,RH ≤80%.It is strictly prohibited to use in inflammable and explosive places.
|
||||||
Applicable space(m³) | 150-250 | 210-350 | 300-500 | 450-800 | 600-900 | 1000-1800 | |
Environmental requirements for using this product
1.1 There should be no flammable and explosive gas and conductive dust in the room. It is forbidden to install in hazardous areas where ammonia gas is easy to leak or explosion hazard
1.2 There is 220V/50HZ AC power supply indoors. Some ozone equipment also needs 380V/50Hz AC power supply
1.3 Ambient temperature requirements: -10℃-33℃
1.4 Environmental humidity requirements: ≤55%.
1.5 The ground on which the machine is placed must be flat, pay attention to placing the machine on the ground or on a support
steadily.
1.6 Keep the working environment of the equipment ventilated and dry during equipment installation. Exhaust fans or air conditioners must be installed in this space. Water cooling needs to be connected to cooling water and chiller.
Product Features
● Long service life ozone quartz tube
● Portable handle and wheels optional (extra fee)
● Over-heat, over-voltage protection
● Support special voltage customization
● 0-24 h digital timer, 10 groups can be set
● European/American/South Africa plugs avaliable

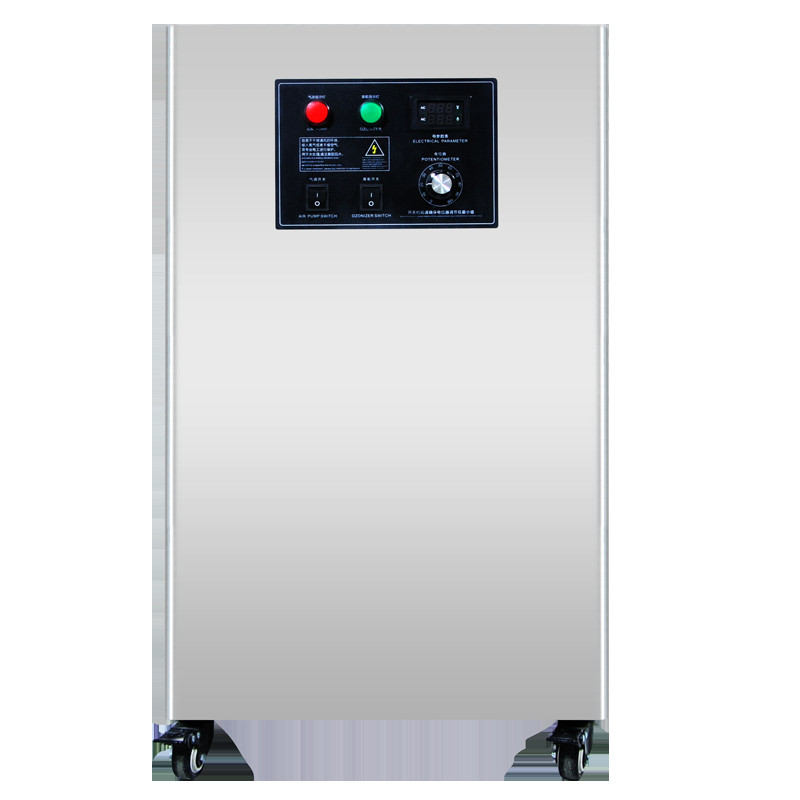

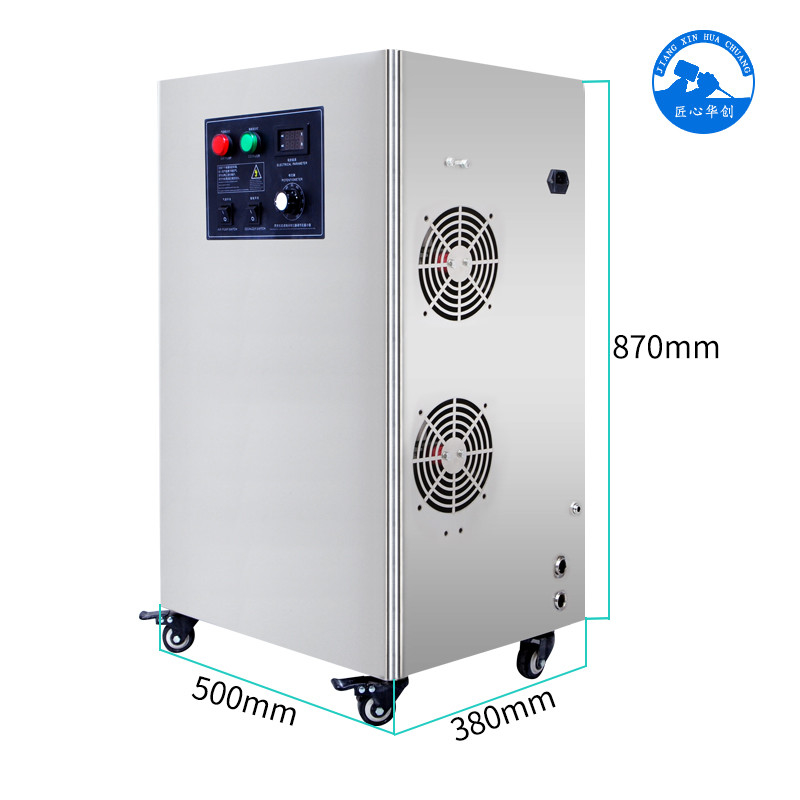

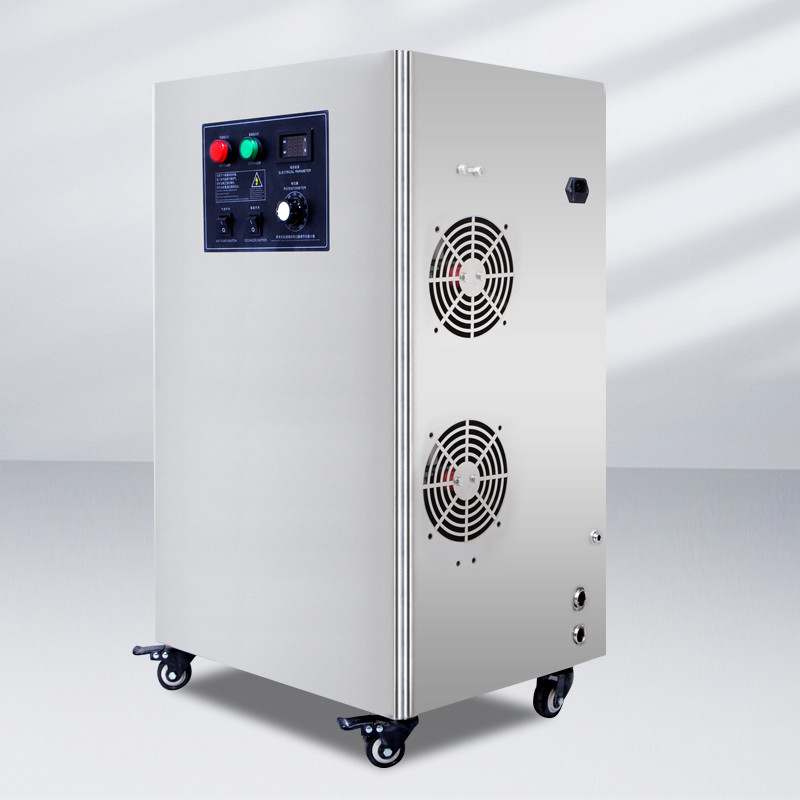

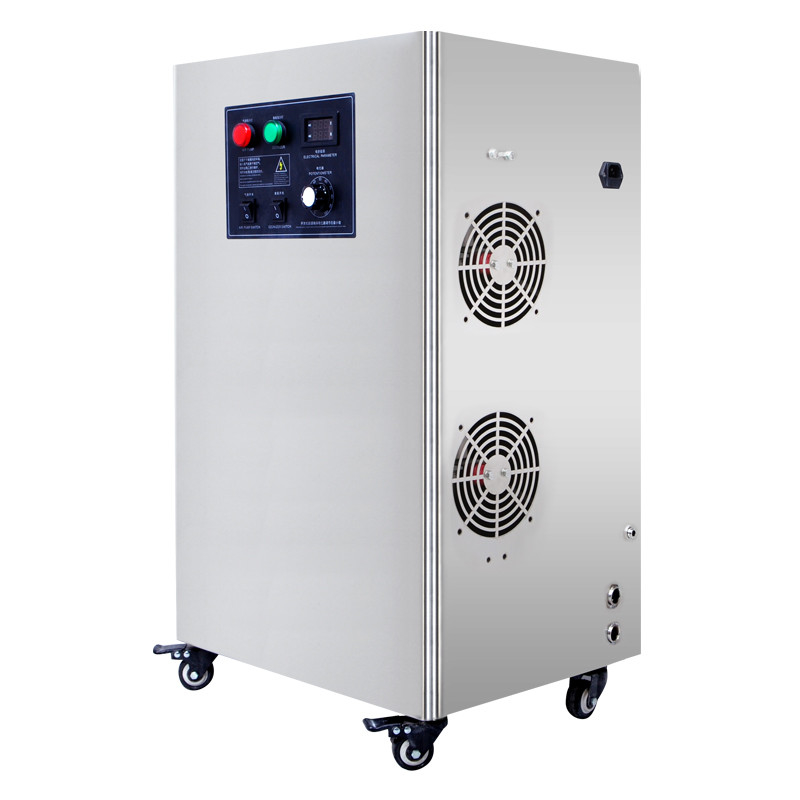

Pictures
