11.3 - 61.9 Liter RO System Accessories Softened Water Pressure Vessels

11.3 - 61.9 Liter RO System Accessories Softened Water Pressure Vessels

61.9 Liter RO System Accessories

11.3 Liter RO System Accessories

61.9 Liter Softened Water Pressure Vessels

Place of Origin:

China

Brand Name:

Leader-t/OEM

Certification:

CE/ISO

Model Number:

LD-Water tank

Contact Us

Request A Quote
Product Details
Product Name:
FRP Tank
Material:
Firber Glass Material
Fabric:
Polyester
Application:
Water Treatment
Core Components:
Pressure Vessel
Certification:
CE,ISO9001,ISO 14001
Productivity:
500L/Hour
After-sales Service:
Free Spare Parts, Online Support
Payment & Shipping Terms
Minimum Order Quantity
1SET
Price
Negotiable
Packaging Details
Wooden /Box
Delivery Time
5-8 Days
Payment Terms
L/C, T/T, Western Union
Supply Ability
1000 Sets /Month
Product Description

Softened Water Pressure Vessels RO System Accessories



Specifications

Specification Size Capacity Opening Length from top to bottom Length O.D. Base Form
(Inch) (mm) (L) Top open (mm) (mm) (mm)
817 Φ 205× 445 11.3 2.5''NPSM 446 432 206 pp
835 Φ 205× 905 24.0 2.5''NPSM 905 891 206 pp
844 Φ 205× 1130 32.5 2.5''NPSM 1131 1117 206 pp
1017 Φ 255× 445 17.8 2.5''NPSM 447 433 257 pp
1035 Φ 255× 905 38.6 2.5''NPSM 903 889 257 pp
1054 Φ 255× 1390 61.9 2.5''NPSM 1390 1376 257 pp




Product Description
We have over 80 different sizes of pressure tanks from diameter 6 to 83 inch. All the products are made and tested according to the international standard which have passed NSF and CE certification. We manufacture ont only for our brand, but also offer OEM service for our customers.



1. Working Pressure: 0.1~0.6 MPa

2. TDS: ≤700mg/L

3. Production Capacity: 1~35m3/h

4. Raw water temperature: 1~40 degree

5. Operating temperature: 1~50 degree

6. Inlet water hardness: ≤12mmol/L

7. Outlet water hardness: ≤0.03mmol/L

8. regenerating resin should use NaCl, couldn't use iodised salt, calcium salt



817&1054&1665 frp pressure vessels water tank in water treatment
Frp pressure tanks are with PE liner,broadly applying to residential , commercial and industrial softening and filtering systems,With perfect performance of corrosion resistant,the vessels can be sufficiently equipped with mechanical control valves and meet requirements of clients



Pictures

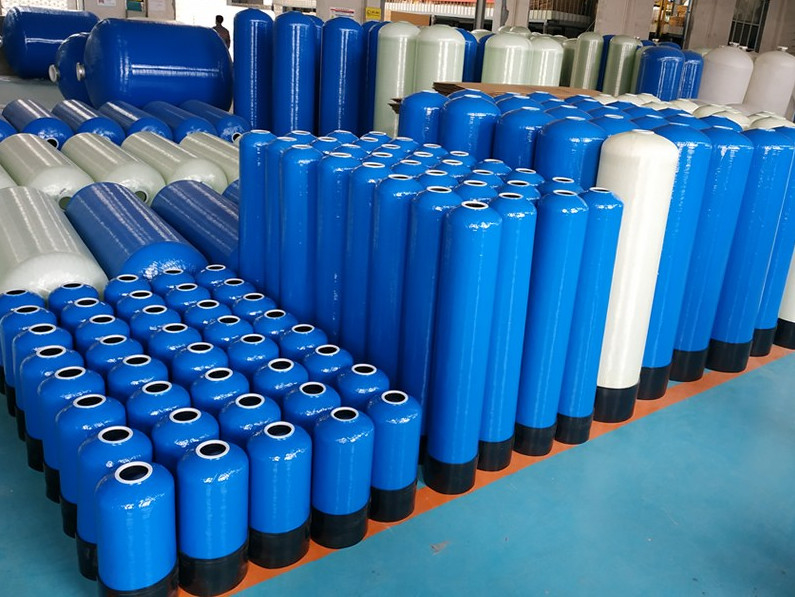

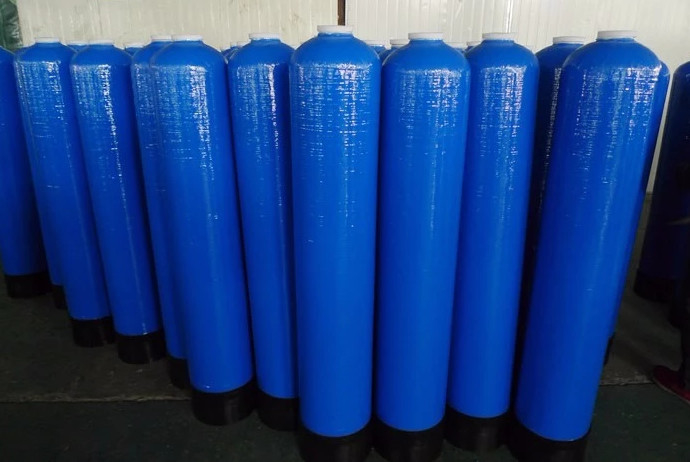

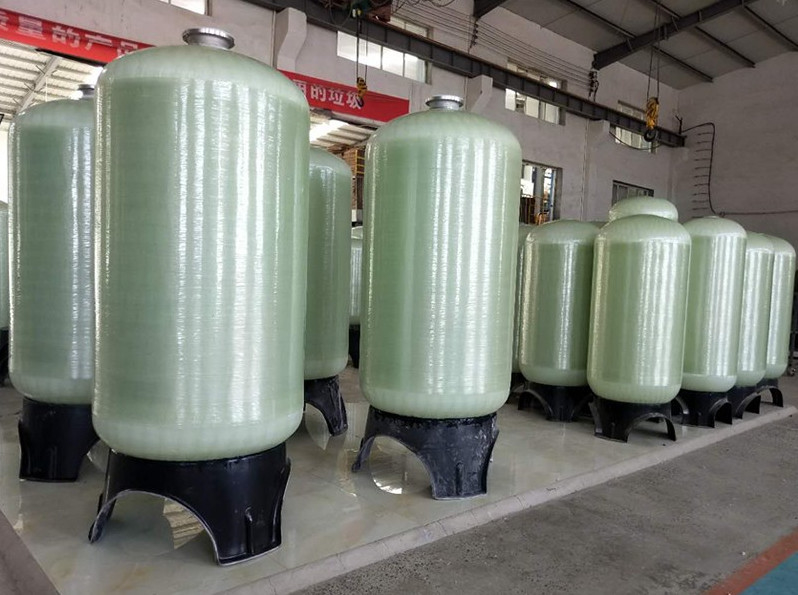

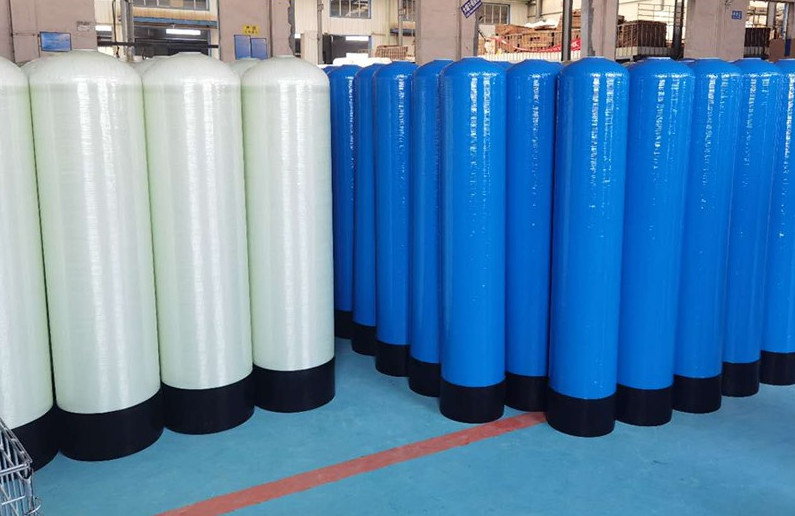

11.3 - 61.9 Liter RO System Accessories Softened Water Pressure Vessels 0

11.3 - 61.9 Liter RO System Accessories Softened Water Pressure Vessels 1
11.3 - 61.9 Liter RO System Accessories Softened Water Pressure Vessels 2
