Place of Origin:
China
Brand Name:
Leader-t/OEM
Certification:
CE/ISO
Model Number:
LD-Water tank
Contact Us
1665 Pressure Water Filter Treatment Fiberglass Pressure Vessel FRP Tank RO System Accessories
Specifications
| Specification | Size | Capacity | Opening | Length from top to bottom | Length | O.D. | Base Form | ||
| (Inch) | (mm) | (L) | Top open | (mm) | (mm) | (mm) | |||
| 817 | Φ 205× 445 | 11.3 | 2.5''NPSM | 446 | 432 | 206 | pp | ||
| 835 | Φ 205× 905 | 24.0 | 2.5''NPSM | 905 | 891 | 206 | pp | ||
| 844 | Φ 205× 1130 | 32.5 | 2.5''NPSM | 1131 | 1117 | 206 | pp | ||
| 1017 | Φ 255× 445 | 17.8 | 2.5''NPSM | 447 | 433 | 257 | pp | ||
| 1035 | Φ 255× 905 | 38.6 | 2.5''NPSM | 903 | 889 | 257 | pp | ||
| 1054 | Φ 255× 1390 | 61.9 | 2.5''NPSM | 1390 | 1376 | 257 | pp |
||
Product Description
We have over 80 different sizes of pressure tanks from diameter 6 to 83 inch. All the products are made and tested according to the international standard which have passed NSF and CE certification. We manufacture ont only for our brand, but also offer OEM service for our customers.
Features of frp pressure vessel/tank :
1. PE liner with FRP filament winding, high quality but competitive cost.

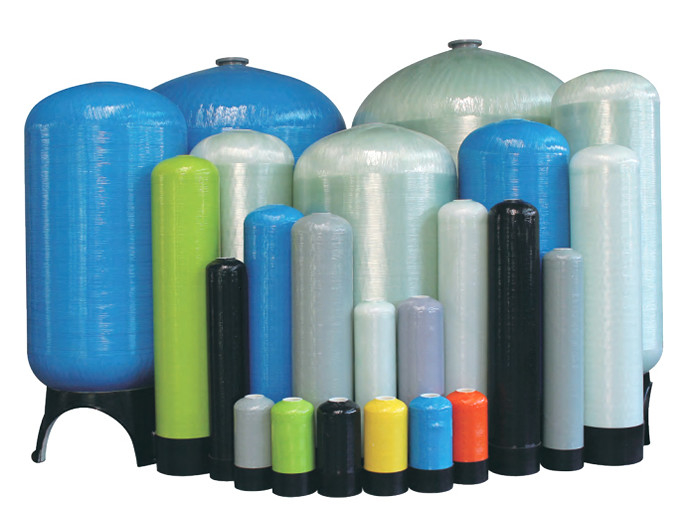

2. Full choice of pressure tanks from 6 to 83 inch in diameter and from 13-110 inch in height.
3. Available in natural,blue, black, gray and any other colors on request.
4. NSF and CE certified.
1054 pressure vessels price water treatment manufacturers ro resin sand filter frp tank fiberglass pentair malaysia
We produce all sizes FRP tanks for water treatment use. the FRP tanks are widely used in residentail and commercial water softener, media water filters and other water filtration systems. our FRP tanks working pressure is 150psi.
we make CE and ROHS certificates for our FRP tanks

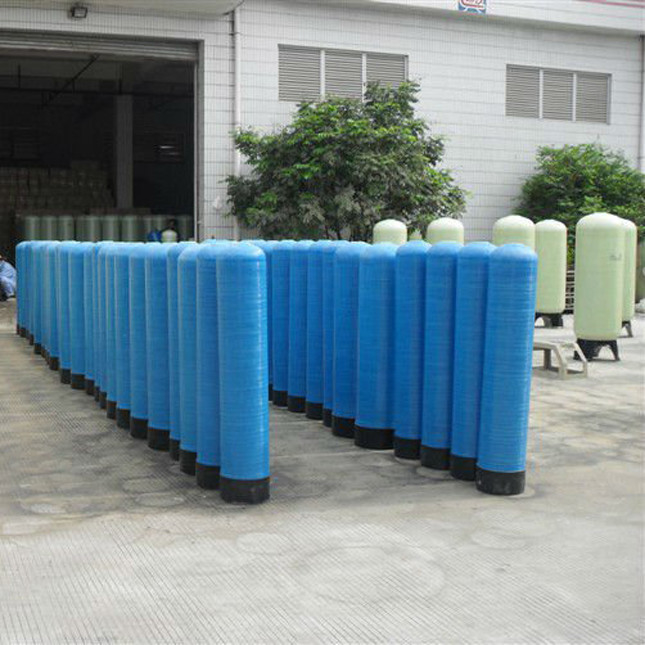

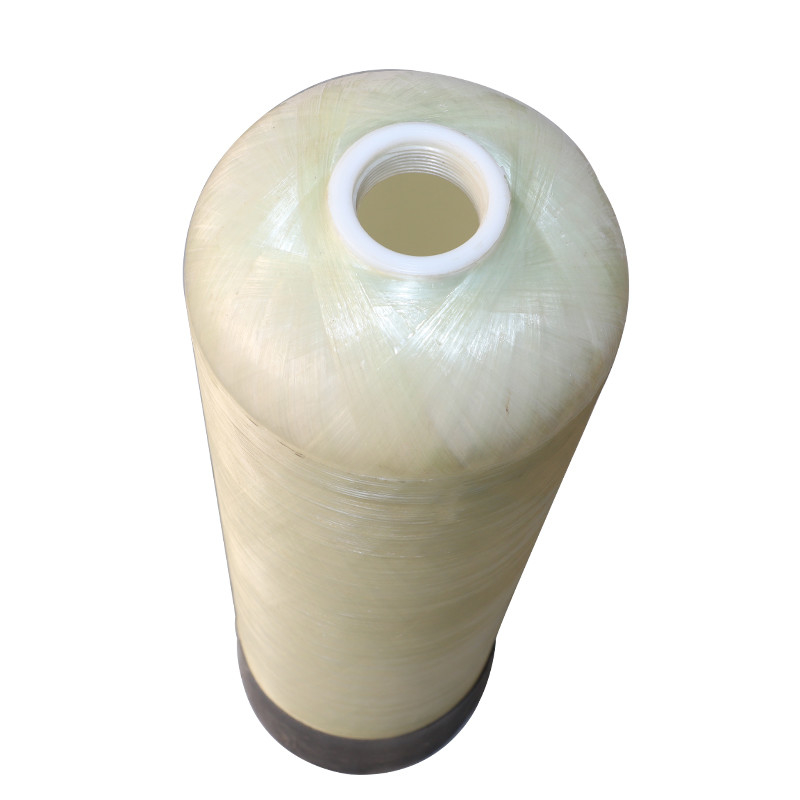

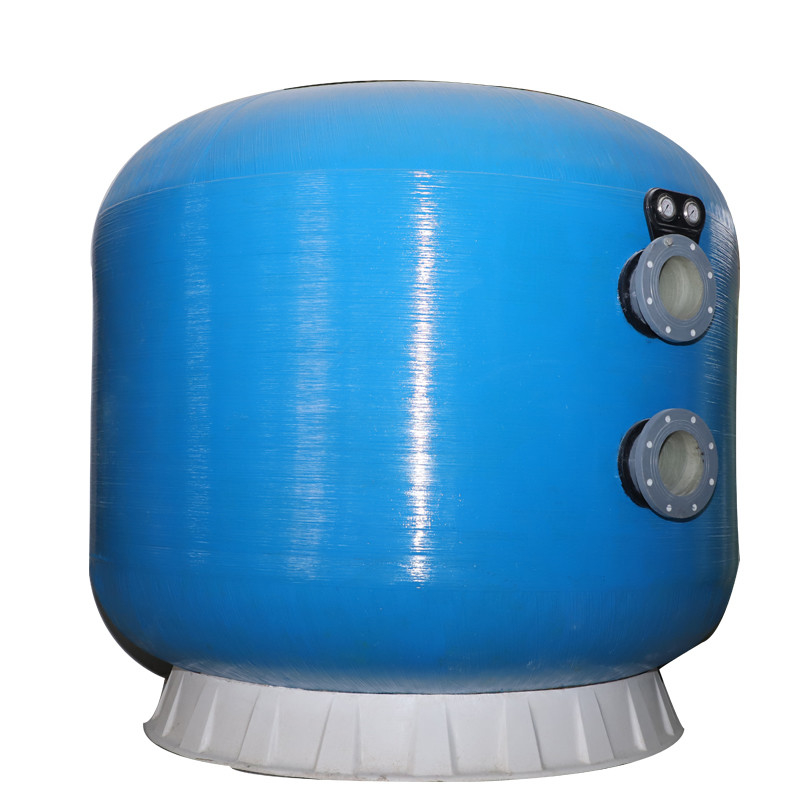

Pictures:
