61.9 Liter Ro System Accessories 1054 Frp Water Filter Tank

61.9 Liter Ro System Accessories 1054 Frp Water Filter Tank

1054 Frp Ro System Accessories

61.9 Liter Frp Water Filter Tank

1054 61.9 Liter Water Filter Tank

Place of Origin:

China

Brand Name:

Leader-t/OEM

Certification:

CE/ISO

Model Number:

LD-Water tank

Contact Us

Request A Quote
Product Details
Product Name:
FRP Tank
Material:
Firber Glass Material
Place Of Origin:
Chengdu ,china
Application:
Water Treatment
Core Components:
Pressure Vessel
Certification:
CE,ISO9001,ISO 14001
Working Pressure:
150 Psi
After-sales Service:
Free Spare Parts, Online Support
Payment & Shipping Terms
Minimum Order Quantity
1SET
Price
Negotiable
Packaging Details
Wooden /Box
Delivery Time
5-8 Days
Payment Terms
L/C, T/T, Western Union
Supply Ability
1000 Sets /Month
Product Description

1054 Frp Water Filter Tank RO System Accessories



Specifications

Specification Size Capacity Opening Length from top to bottom Length O.D. Base Form
(Inch) (mm) (L) Top open (mm) (mm) (mm)
817 Φ 205× 445 11.3 2.5''NPSM 446 432 206 pp
835 Φ 205× 905 24.0 2.5''NPSM 905 891 206 pp
844 Φ 205× 1130 32.5 2.5''NPSM 1131 1117 206 pp
1017 Φ 255× 445 17.8 2.5''NPSM 447 433 257 pp
1035 Φ 255× 905 38.6 2.5''NPSM 903 889 257 pp
1054 Φ 255× 1390 61.9 2.5''NPSM 1390 1376 257 pp


Product Description
We have over 80 different sizes of pressure tanks from diameter 6 to 83 inch. All the products are made and tested according to the international standard which have passed NSF and CE certification. We manufacture ont only for our brand, but also offer OEM service for our customers.



Features of frp pressure vessel/tank :

1. PE liner with FRP filament winding, high quality but competitive cost.

2. Full choice of pressure tanks from 6 to 83 inch in diameter and from 13-110 inch in height.

3. Available in natural,blue, black, gray and any other colors on request.

4. NSF and CE certified.



1054 pressure vessels price water treatment manufacturers ro resin sand filter frp tank fiberglass pentair malaysia
We produce all sizes FRP tanks for water treatment use. the FRP tanks are widely used in residentail and commercial water softener, media water filters and other water filtration systems. our FRP tanks working pressure is 150psi.
we make CE and ROHS certificates for our FRP tanks



FRP TANK
8"- 63"dia. For multi-media filter and softerner

1. PE(Polyethylene)seamless one-piece tank liner:

2. 2.5" precision injected model with threaded opening for 8"-16" dia.Tanks ;

3. 4"precision injected model with threaded opening for 16",18",24",30",36" dia.Tanks;

4. 6"Aluminum alloy flange opening for 36",42",48",60",63"dia. tanks;

5. Continuous strands of fiber-glass with high strength Epoxy resin;
6. Completely rust and corrosion free;
7. FRP reinforced tripod base.



Pictures:

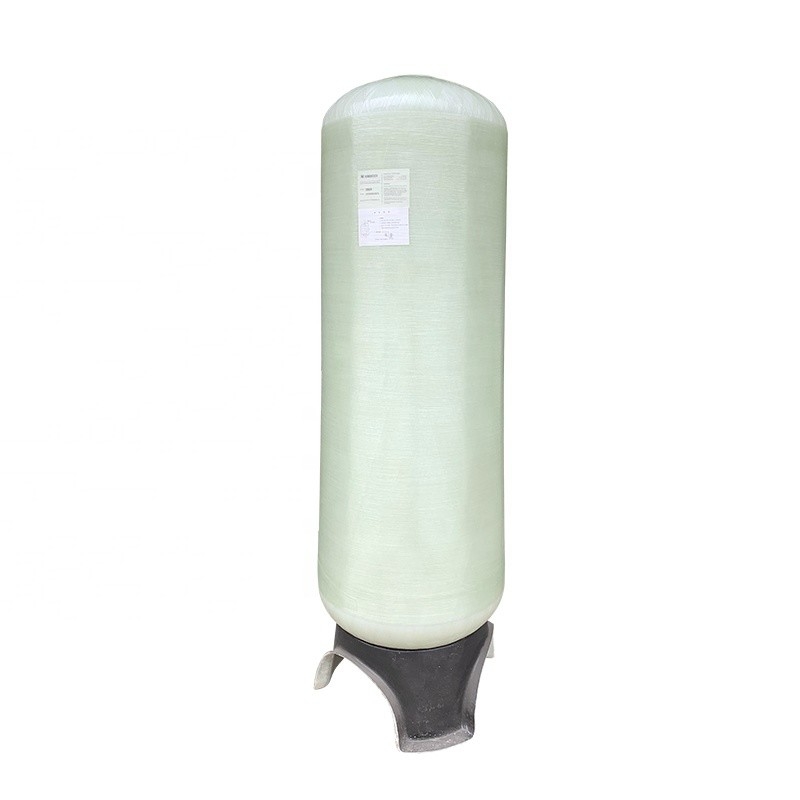

61.9 Liter Ro System Accessories 1054 Frp Water Filter Tank 0

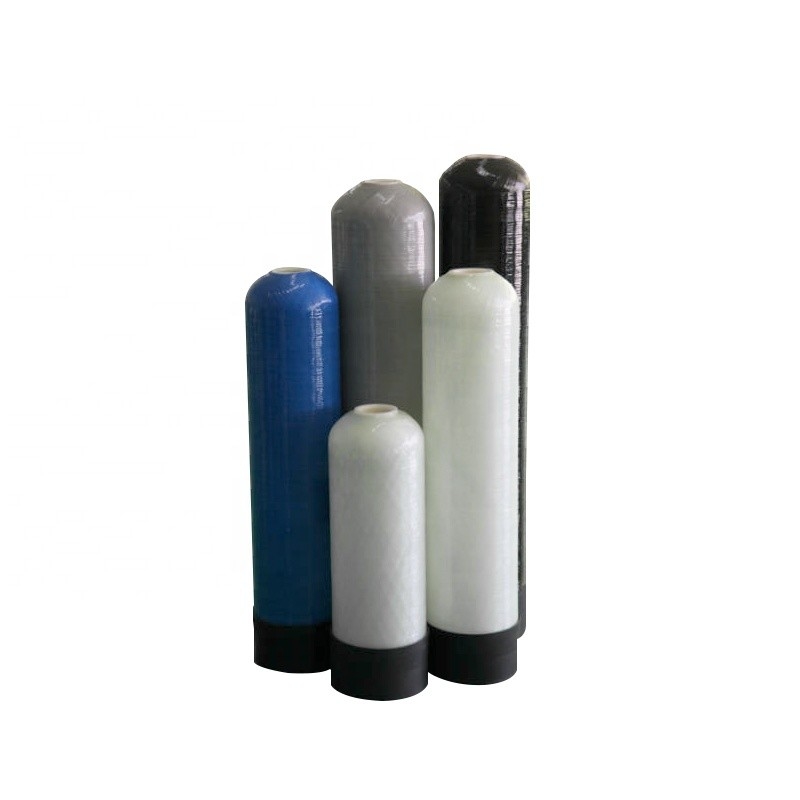

61.9 Liter Ro System Accessories 1054 Frp Water Filter Tank 1

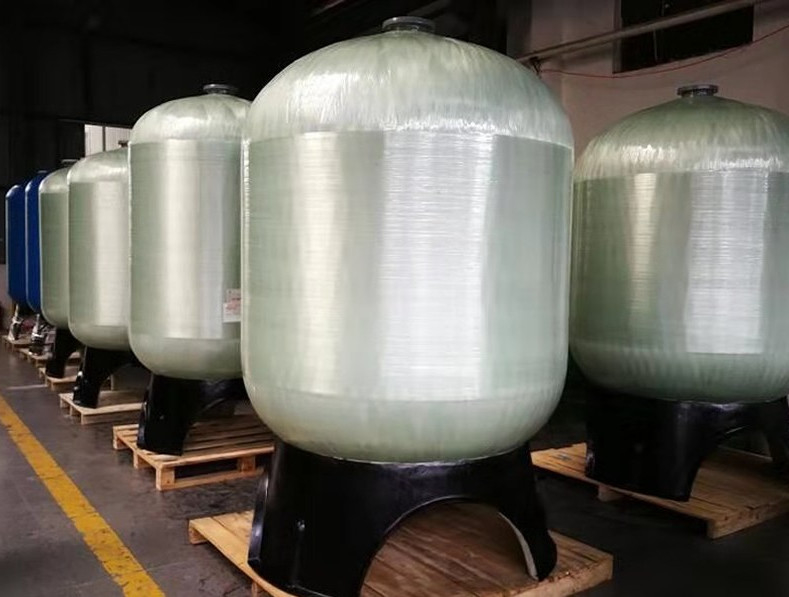

61.9 Liter Ro System Accessories 1054 Frp Water Filter Tank 2
