Place of Origin:
China
Brand Name:
Leader-t/OEM
Certification:
CE/ISO
Model Number:
LD-PP
Contact Us
5 Micron PP Filters RO System Accessories
PM-Series cartridge is able to retain contaminants throughout the entire cross section of the filter. The density increases progressively from the exterior surface to the interior and "graded density" allows larger particles to be trapped near the surface while smaller particles penetrate the larger open areas to be trapped nearer the center of the filter in the smaller
Specifications:
| Product name | Melt Blown Filter Cartridge |
| Brand | Acleanly / OEM Customization |
| Material | Polypropylene/PP |
| Micron trate | 1-200um (Household:1um 5um 10um) |
| Standard | RoHS Directive 2011/65/EU |
| Certification | SGS RoHS |
| Length | 10'' 20'' 30'' 40''/ 250mm-1016mm / Customization |
| Inside diameter | 28mm / 30mm / Customization |
| Outside diameter | 62mm±1mm / 110mm±1mm / 116mm±1mm / Customization |
Product Description
Nominal Rated PP Melt Blown / Spun Cartridge Filters
Features & Benefits
• Surface pore structure spreads water flow to reduce pressure drop
• Continuously gradient pore structure increases the capacity of dust holding, longer service life and high efficiency
• High strength and pressure resistance
• Micro-denier melt blown filtration fiber, high removal ratings
• 100% PP for compatibility with a wide range of process fluids
• Formed by thermal bond without use of any binders and adhesives
High performance pure polypropylene depth dual-gradient density filter media is under highly controlled manufacturing process which guarantees consistently reproducible filter performance. PM-series filters are comprised of an inner compact rated section for exceptional dirt-holding capability and the outstanding performance which meets the highest quality requirements are selected for critical filtration application.

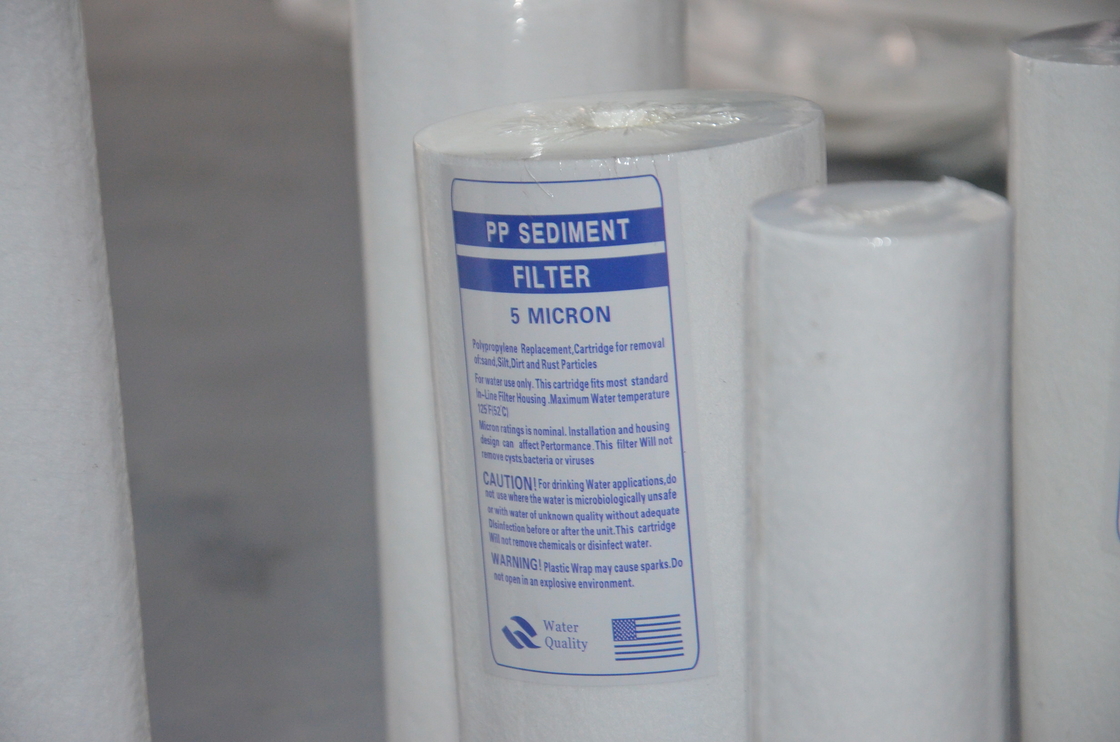

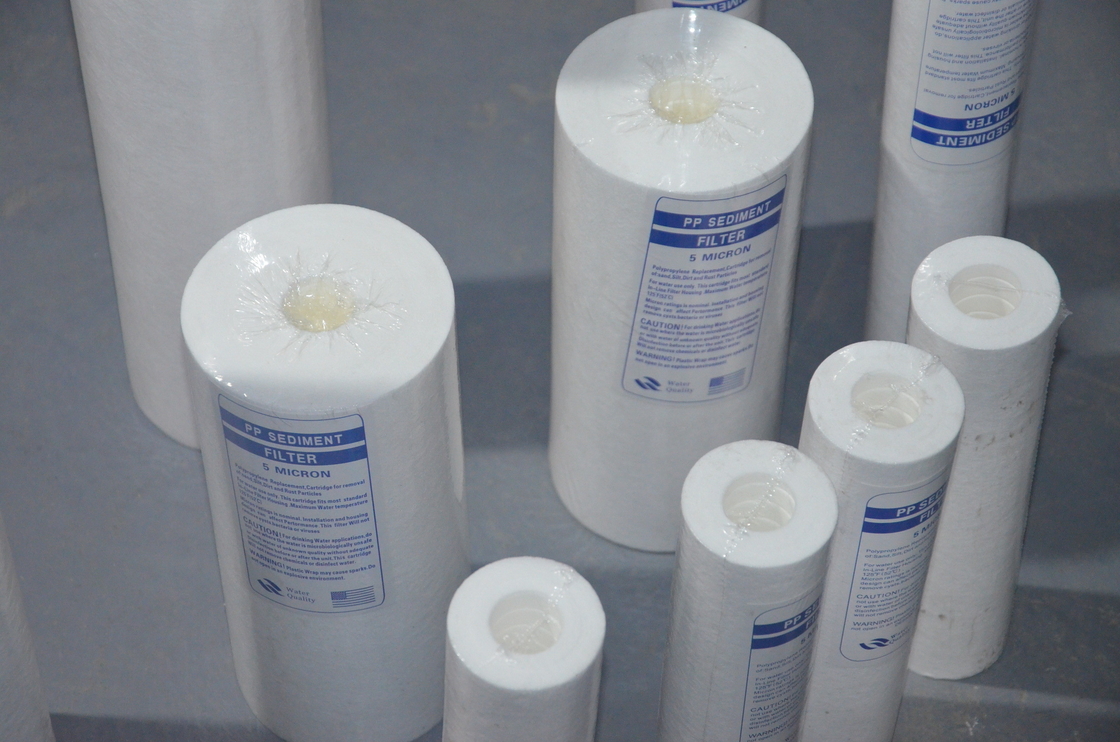

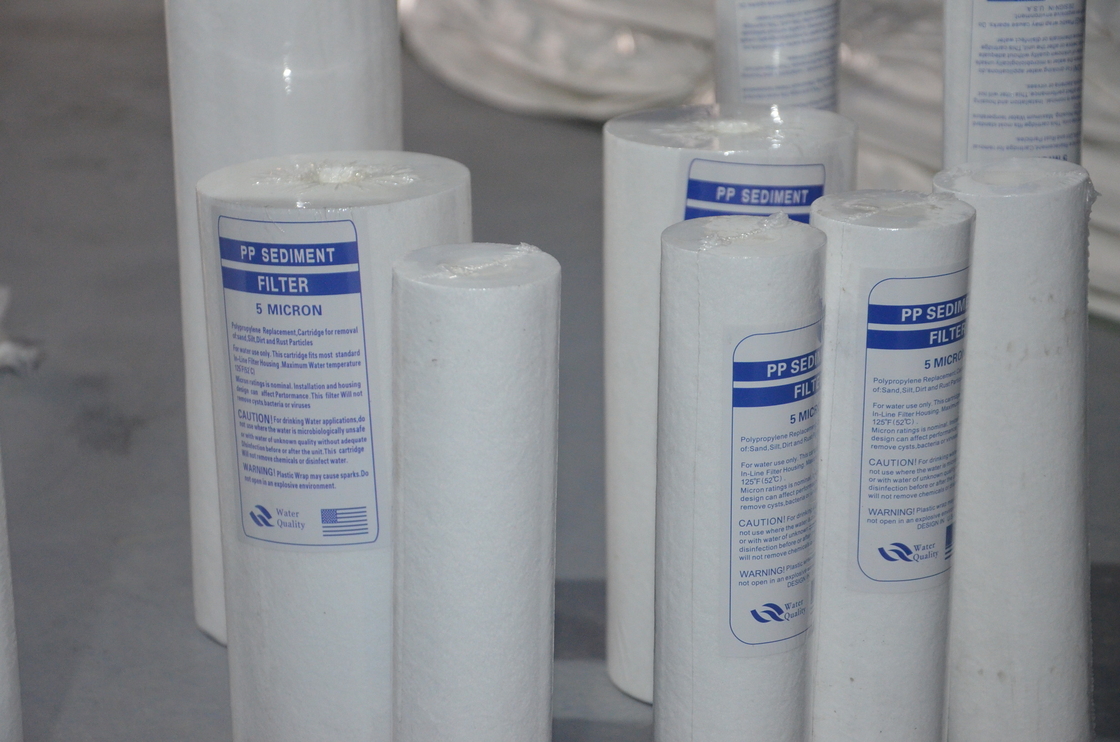

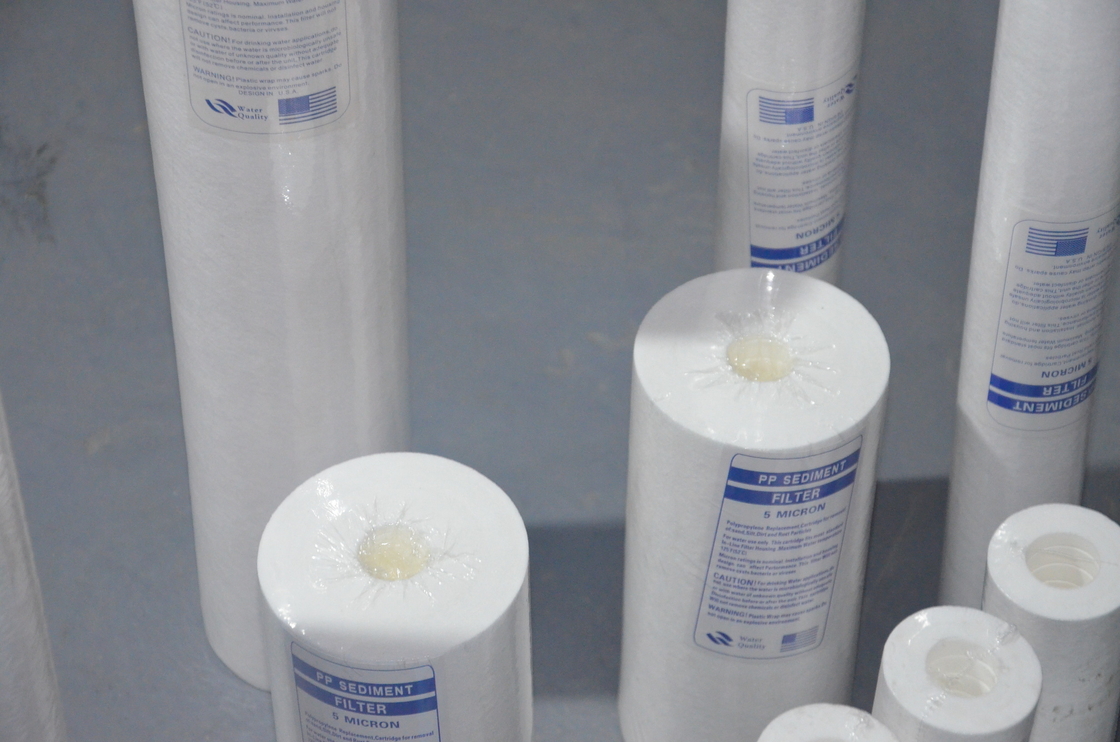

Pictures:
