Place of Origin:
China
Brand Name:
LEADER-T /OEM
Certification:
CE/ISO
Model Number:
LD-EDI100LPH
Contact Us
100lph Small EDI RO Water System EDI Purified Water System
PLANT PROCES
1.Raw water pump-- provide the pressure to silica sand filter/ active carbon filter
2.Silica Sand filter -- get rid of turbidity, suspended matter, organic matter, colloid and so on
3.Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter and so on
4.Softener--reduce the hardness of water
5.Micron filter--prevent any deposition of large Particles, most of the bacteria, and viruses into the RO membrane, The
accuracy is 5um, for holding back any large particulates such as large iron, dust, suspended matter, impurity.
6.High pressure pump-- Provide the high pressure to RO membrane (at least 2.0 M pa).
7.RO system--RO system is the main part of pure water treatment plant. The RO membrane's desalt rate can reach as
high as 99%, it is capable of removing over 99% of ions, bacteria, particles and 98% of organic.
specification
| Configuration list | ||||
| Configuration | Material | SPEC | Brand | |
| Tank | FRP /SS | 844/725/1065etc | Domestic/Pentair etc. | |
| Value | / | Auto/Manual | Domestic/Pentair etc | |
| Filter | quartz sand | 20-80 mesh | Domestic | |
| Active Carbon | 600-1100Mg/g | Domestic | ||
| Resin | / | Domestic PUROLITE,Rohm Hass | ||
| Ro membrance | Cellulose acetate membrane,element | 1812/2521/2540,4040/8040 etc.. | VONTRON/DOW,HYDRANAUTIC/Dongli | |
| Controlling System | / | PLC ,Maunal,Electric control | Domestic,Siemens | |
| Pipe/Value | Upvc/ss304/ss316 | DN15-DN150 | Domestic | |
| Pump | SS/Iron/Copper | CNP,Grundfos | ||
| Optional | Customize the design according to the customer's URS | |||
| Application | Drinking, cleaning, beverage, industrial and mining enterprises and so on. | |||
Flow chart

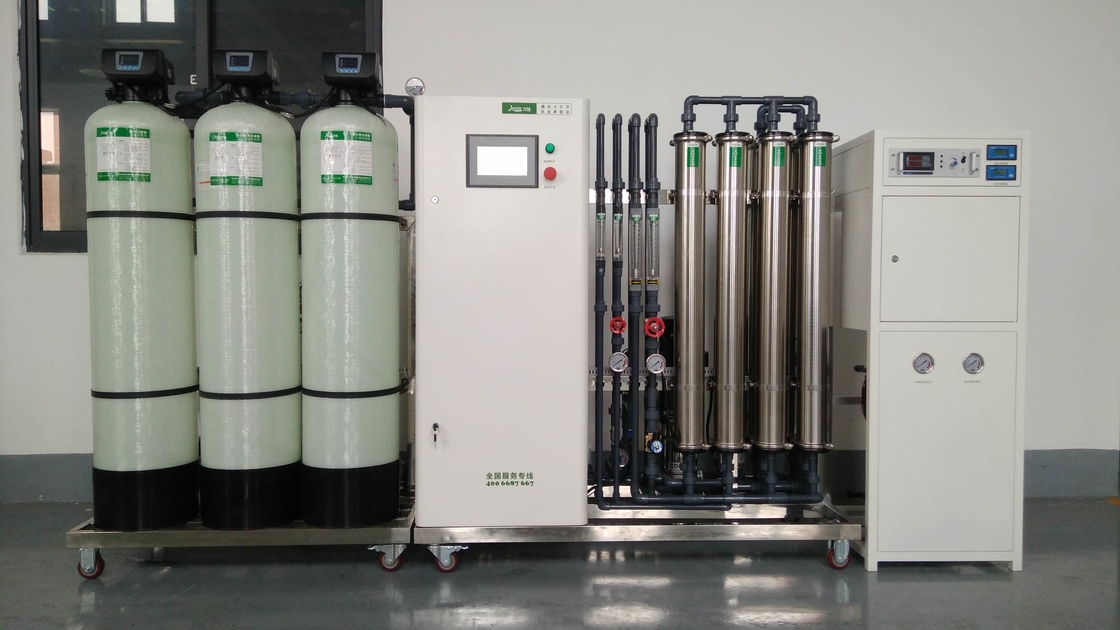

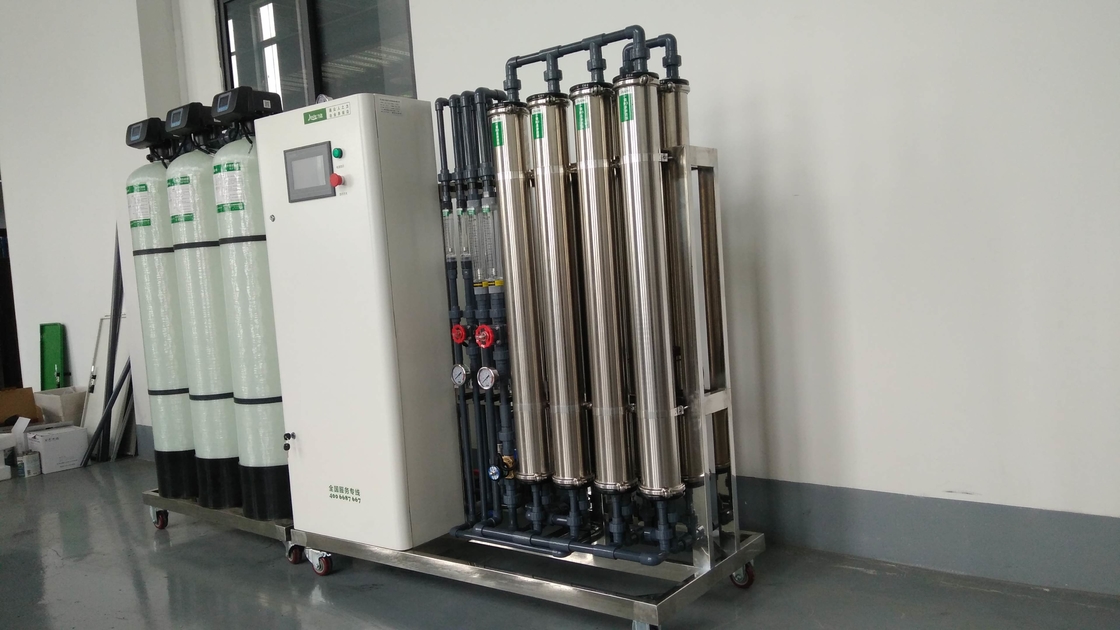

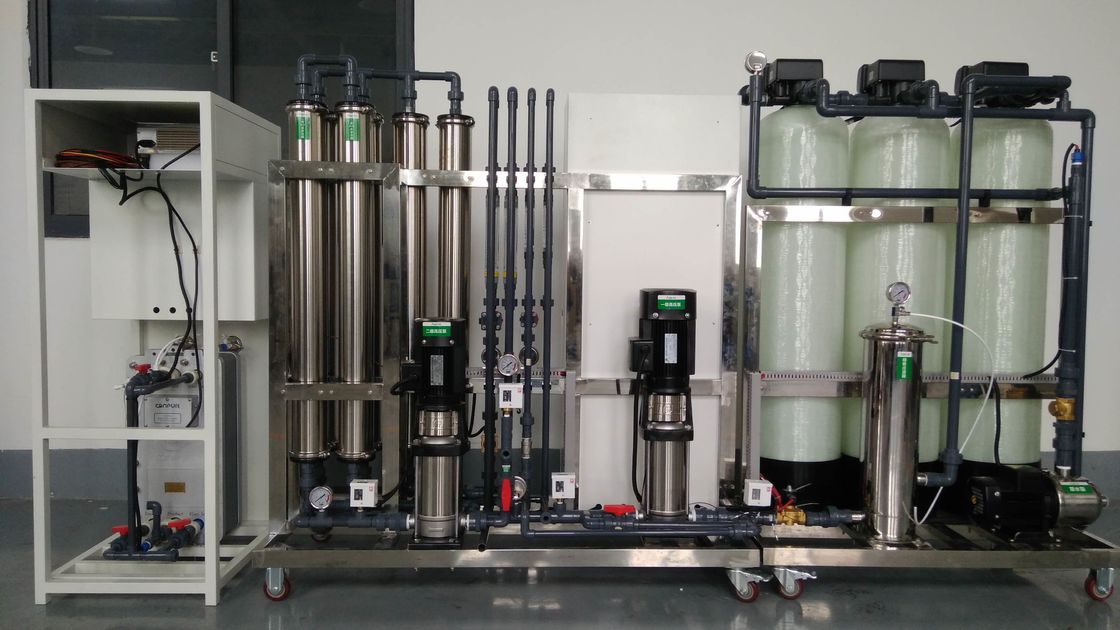

Pictures
