10TPH Industrial Purified Water Plant In Pharmaceutical Industry

10TPH Industrial Purified Water Plant In Pharmaceutical Industry

10TPH Industrial Purified Water Plant

10T/HR Industrial Purified Water Plant

Purified Water Plant In Pharmaceutical Industry

Place of Origin:

China

Brand Name:

Leader-t/OEM

Certification:

CE/ISO

Model Number:

LD-5000LPH

Contact Us

Request A Quote
Product Details
Product:
Industrial Water Purification Plant
Capacity:
10TLPH
Core Components::
Pump, Motor, PLC
Pre-filter:
Quartz Sand/active Carbon/softener
Type:
Reverse Osmosis
Ro Membrane:
Vontron/DOW
After-sales Service Provided:
Online Support, Video Technical Support, Field Installation, Commissioning And Training, Engineers Available To Service Machinery Overseas
Applicable Industries:
Hotels, Manufacturing Plant, Food & Beverage Factory, Farms,
Payment & Shipping Terms
Minimum Order Quantity
1SET
Price
Negotiable
Packaging Details
Wooden /Box
Delivery Time
5-8 Days
Payment Terms
L/C, T/T, Western Union
Supply Ability
1000 Sets /Month
Product Description
Industrial Water Purification Plant Water Plant Ro System


Main Features of RO underground water purifier plant price/RO water filter treatment


(1). Occupy little space, easy to operate, wide
application range;

(2). operation cost of ro water purifier machine is low, acid and alkali consumption is low, no secondary pollution;

(3). Reverse osmosis desalting rate >=99%, machine desalting rate >=97%, 98% of organic and bacteria can be removed;

(4). Finished water under good electronic conductivity, one stage <=10u s/cm, two stage around 2~3u s/cm, EDI <=0.5u s/cm(based on raw water<=300 u s/cm;

(5). High operation automation degree. It is unattended. The ro water purifier machine price will automatically stop in case of no water. Timed flushing of front filtering materials by automatic controller. Automatic flushing of reverse osmosis film by IC. Online display of raw water and pure water electronic conductivity;

(6). Imported parts account for over 90%.



Specification

Configuration list
Configuration Material SPEC Brand
Tank FRP /SS 844/725/1065etc Domestic/Pentair etc.
Value / Auto/Manual Domestic/Pentair etc
Filter quartz sand 20-80 mesh Domestic
  Active Carbon 600-1100Mg/g Domestic
  Resin / Domestic PUROLITE,Rohm Hass
Ro membrance Cellulose acetate membrane,element 1812/2521/2540,4040/8040 etc.. VONTRON/DOW,HYDRANAUTIC/Dongli
Controlling System / PLC ,Maunal,Electric control Domestic,Siemens
Pipe/Value Upvc/ss304/ss316 DN15-DN150 Domestic
Pump SS/Iron/Copper   CNP,Grundfos
Optional Customize the design according to the customer's URS
Application Drinking, cleaning, beverage, industrial and mining enterprises and so on.


Product Description


Reverse osmosis technology is a modern high technology developed recently in China.It is to seperate water from solution after it permeates the specially-made semi-transparent membrance through exerting a pressure that is higher than the osmosis pressure on the solution.

According to different osmosis pressures of various materials the process of reverse osmosis with a pressure higher

than the osmosis pressure can be used to reach the purposes of separation, extraction, purification and concentration
of a certain solution. It does not saves more energy than traditional process.

Reverse osmosis technology apply in electronic industry water, pharmaceutical industry water, chemical industry
process water, electric industry boiler feeding water, saewater and saline water desalization, purified drinking water and
other process water usch as automobile, home appliance painting, coated glass, fine chemicals, cosmetic etc.





Flow chart



10TPH Industrial Purified Water Plant In Pharmaceutical Industry 0








Pictures

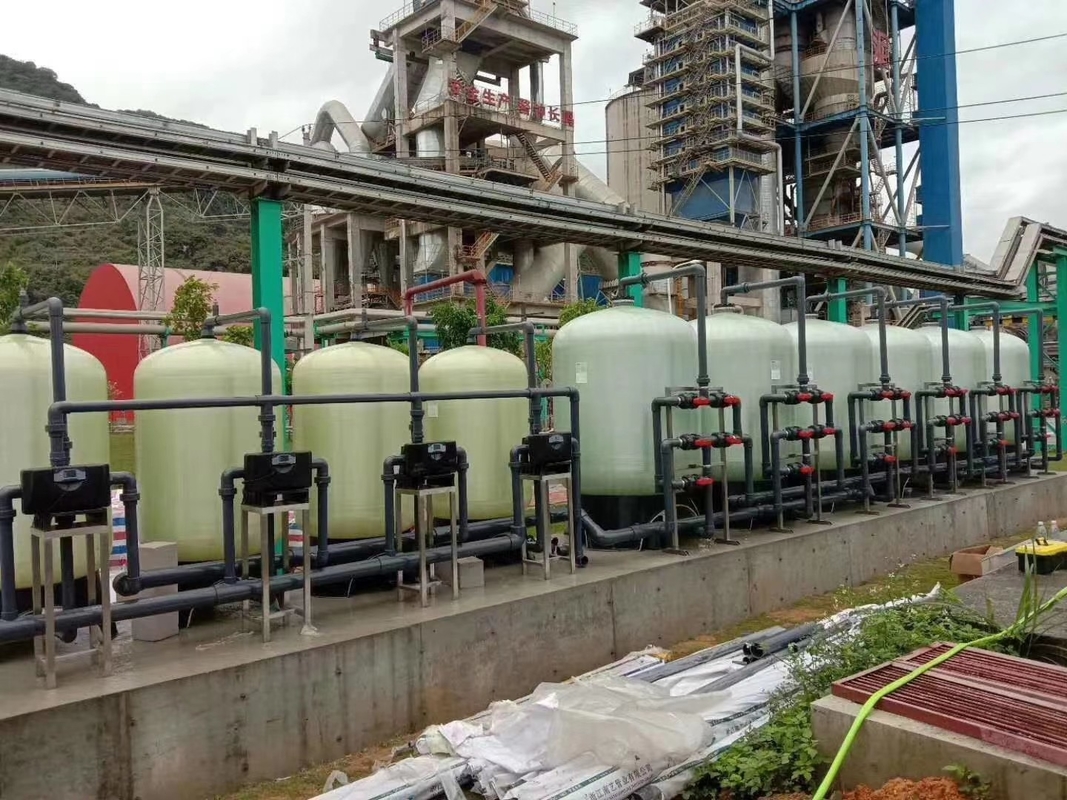

10TPH Industrial Purified Water Plant In Pharmaceutical Industry 1

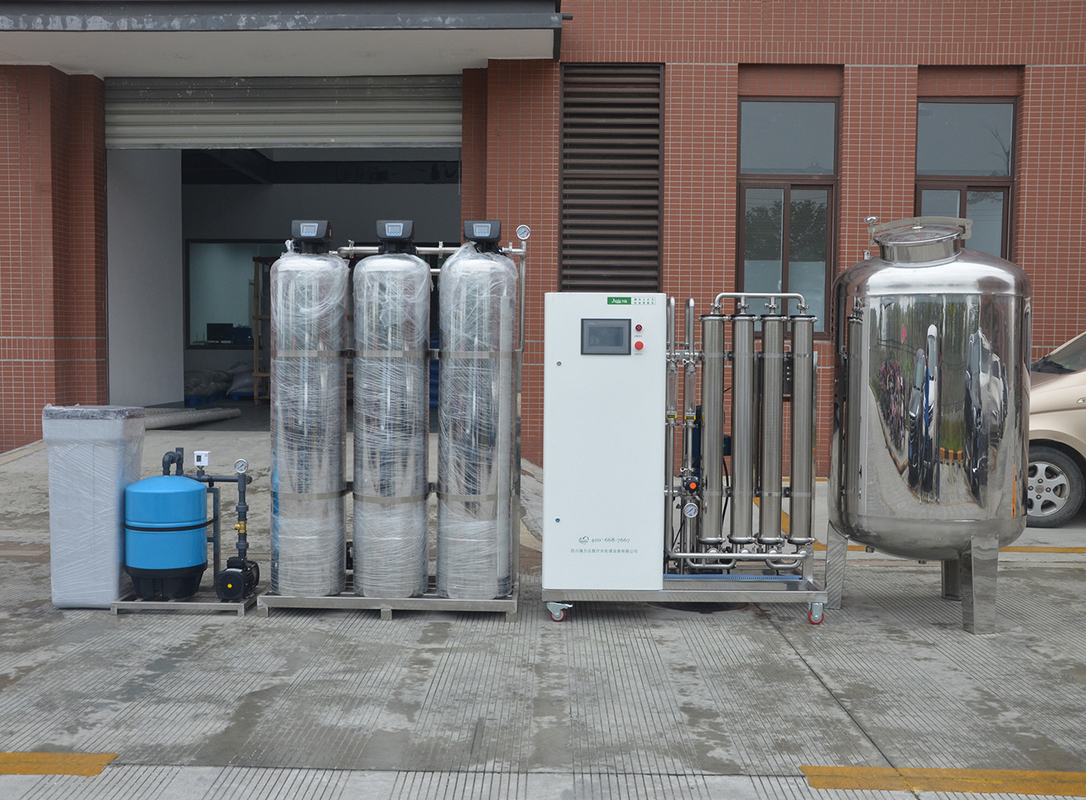

10TPH Industrial Purified Water Plant In Pharmaceutical Industry 2

10TPH Industrial Purified Water Plant In Pharmaceutical Industry 3

10TPH Industrial Purified Water Plant In Pharmaceutical Industry 4
