This system uses mechanical filters, activated carbon filter as a pre-class treatment, the effective removal of suspended solids in raw water, sediment particles, organic colloids, organic matter, odor, chlorine and other impurities, with pre-programmed as a reverse osmosis desalination plant to remove the raw water Most of the dissolved salts, bacteria, hot stream and so on, to ensure finished water quality standards. Under normal circumstances, the system can be placed in automatic operation mode of the work of continuous operation, automatic monitoring water quality, simple, stable, safe and reliable.
Pretreat Activated carbon filter
Activated carbon is used wood, coal, shell (nuclear) and other carbonaceous material through chemical or physical method activation made. It has a very large number of pores and specific surface area, which has a strong physical adsorption capacity, the effective adsorption of organic pollutants in water. Primarily to remove organic matter in raw water, chlorine, odor, color, etc., so that the original residual chlorine in water ≤ 0.1mg / l, effective protection of RO membrane from chlorine damage.
Pretreat 5μm security filter
The third pretreatment, filter spray for the polypropylene melt, filter housing is ABS material, mainly to remove the vast majority of very fine suspended solids.

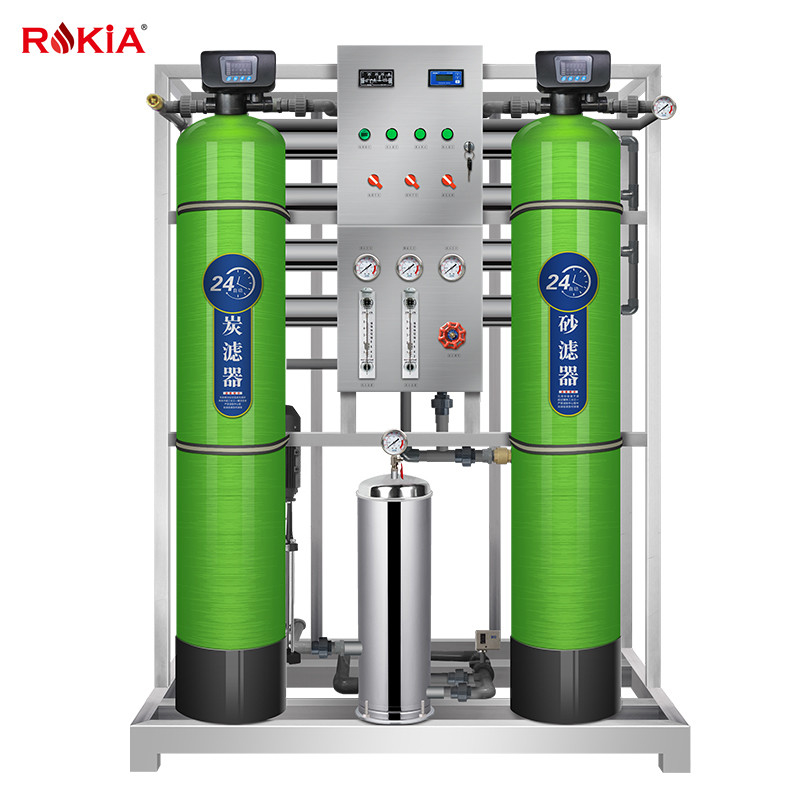

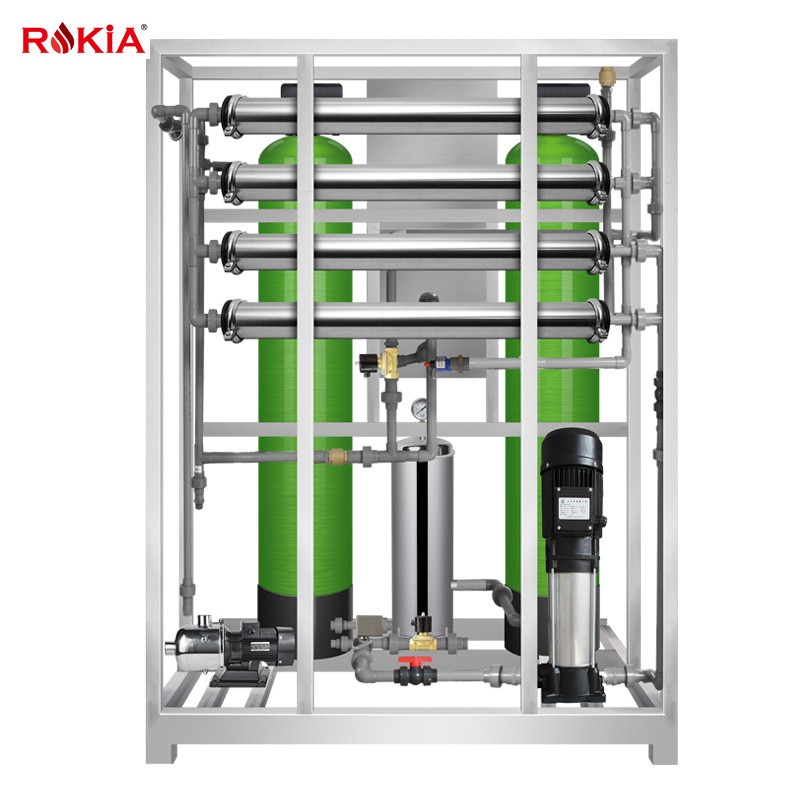

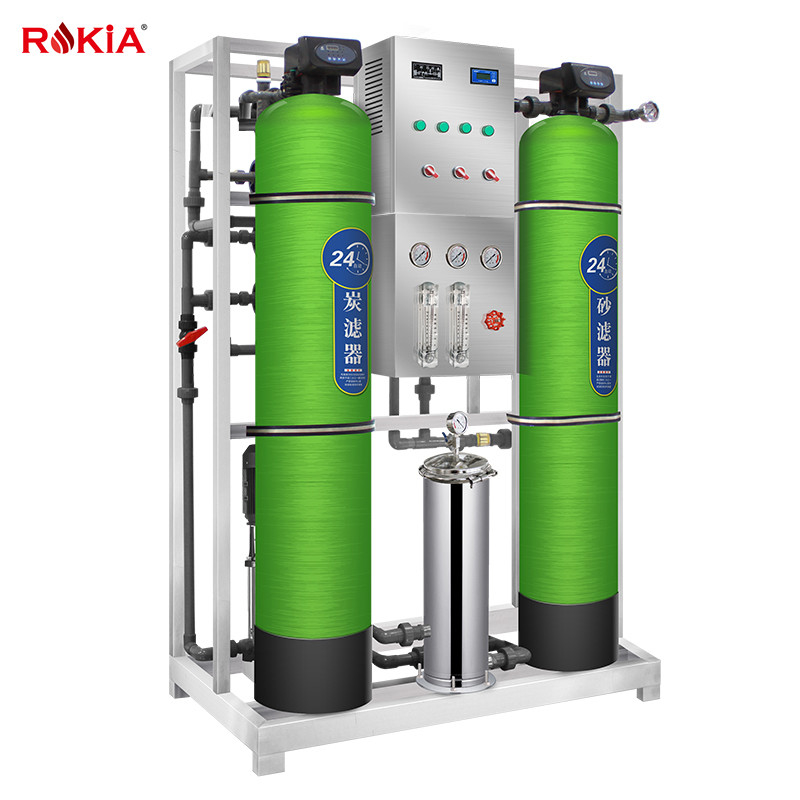

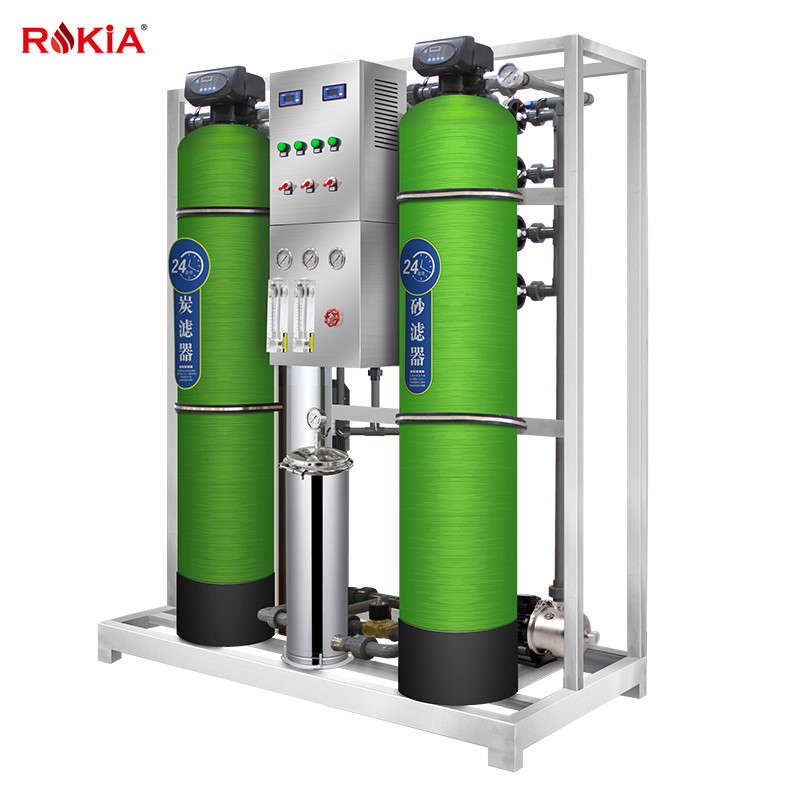

Purified Drinking Water Treatment Plant Small RO Water Treatment System
The RO system consists of raw water pretreatment , RO unit and post-treatment. Due to the wide variety of raw waters and the complexity of the ingredients, it is necessary to select a suitable pretreatment process to reduce scale and scale and prevent the performance of the RO membrane from deteriorating. Especially in the field of reclaimed water and wastewater reuse, the selection of a suitable pretreatment system will directly affect the stability of the entire water treatment system.
Therefore, the raw water must be strictly pretreated. According to different water quality requirements, choose the appropriate after treatment system to meet the final requirements of aquatic products. If there are high requirements for microorganisms, we can choose a combination of ozone and UV disinfection technology. Thanks to the RO process, we can make the system more stable, lower energy consumption and water quality guarantee.
